51655 (TC 3110) - Toro String Trimmer (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

String Trimmer

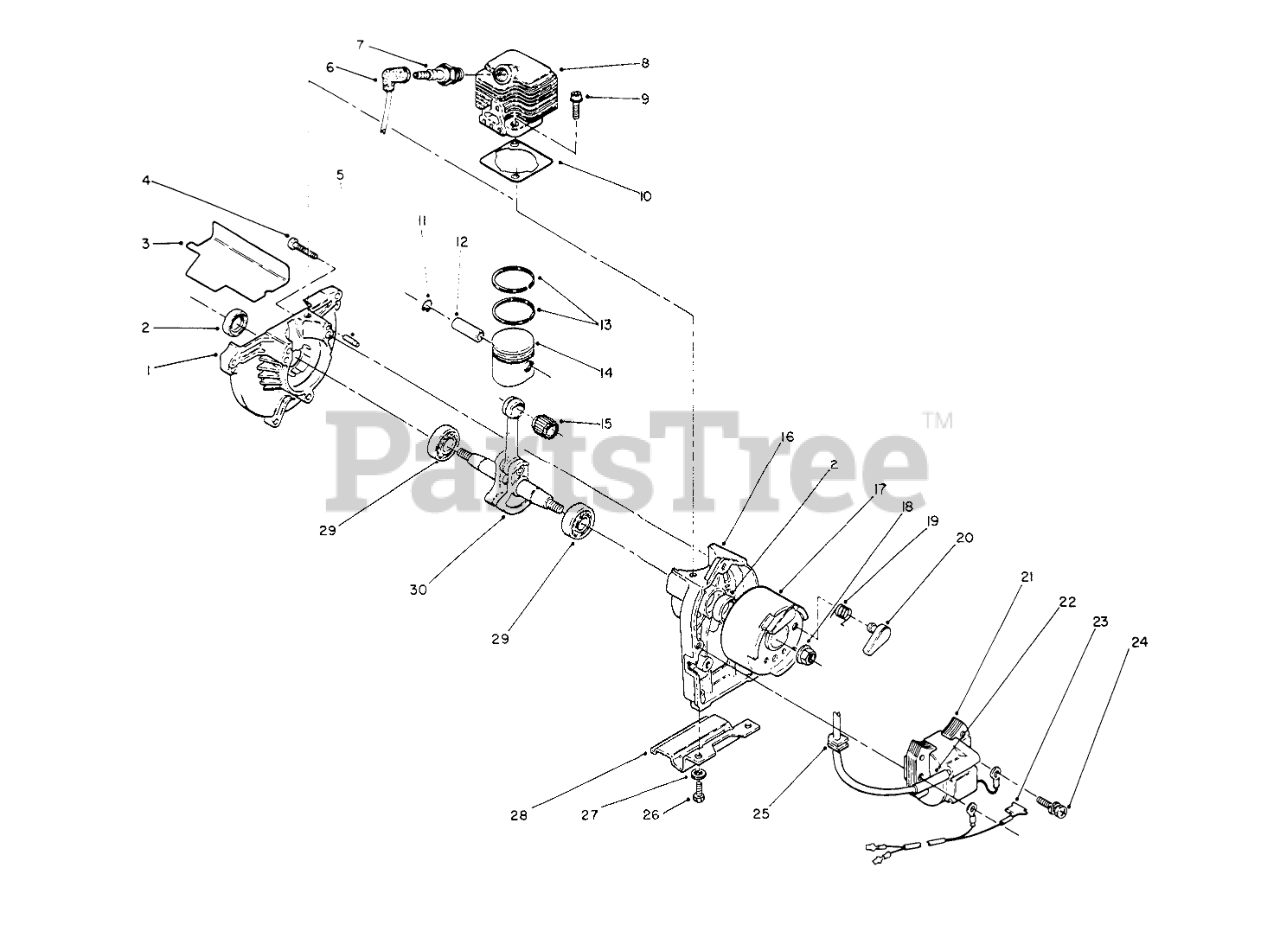

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-1110

Case-Drive

$

$

Not available

2

Toro 54-4380

OIL SEAL

$24.99

$

Usually ships in 3-6 days

0

3

Toro 82-6090

BAFFLE GASKET

$

$

Not available

4

Toro 54-4330

Screw

$

$

Not available

5

Toro 60-7590

PIN

$

$

Not available

6

Toro 77-1340

PLUG BOOT

$

$

Not available

7

Toro 77-1350

Plug-Spark
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

8

Toro 77-1240

CYLINDER

$466.99

$

Usually ships in 3-6 days

0

9

Toro 60-7720

FLANGE BOLT

$

$

Not available

10

Toro 60-7730

CYL GASKET

$7.49

$

In Stock, Qty 6

0

11

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

12

Toro 54-5910

PISTON PIN

$

$

Not available

13

Toro 77-1260

TOP RING

$

$

Not available

14

Toro 77-1270

Piston Ass-y (Incl. Ref. #12)

$

$

Not available

15

Toro 54-5930

NEEDLE BEARING

$

$

Not available

16

Toro 60-7600

STARTER CASE

$

$

Not available

17

Toro 77-1360

Flywheel (Incl. Ref. #19 & 20)

$

$

Not available

18

Toro 54-4670

NUT

$

$

Not available

19

Toro 77-1370

RETURN SPRING

$

$

Not available

20

Toro 77-1380

RATCHET

$

$

Not available

21

Toro 77-1400

IGNITION COIL

$

$

Not available

22

Toro 77-2180

TUBE

$

$

Not available

23

Toro 77-2190

LEAD WIRE

$

$

Not available

24

Toro 54-4790

BOLT AND WASHER

$5.99

$

Usually ships in 3-6 days

0

25

Toro 60-7840

GROMMET

$

$

Not available

26

Toro 46-0053

M6 X 1 X 1/2 MWH SCREW

$

$

Not available

27

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 82-6110

STAND SUPPORT

$20.99

$

Usually ships in 3-6 days

0

29

Toro 54-4360

BEARING

$

$

Not available

30

Toro 77-1330

CRANKSHAFT ASSEMBLY

$

$

Not available
