51655 (TC 3110) - Toro String Trimmer (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

String Trimmer

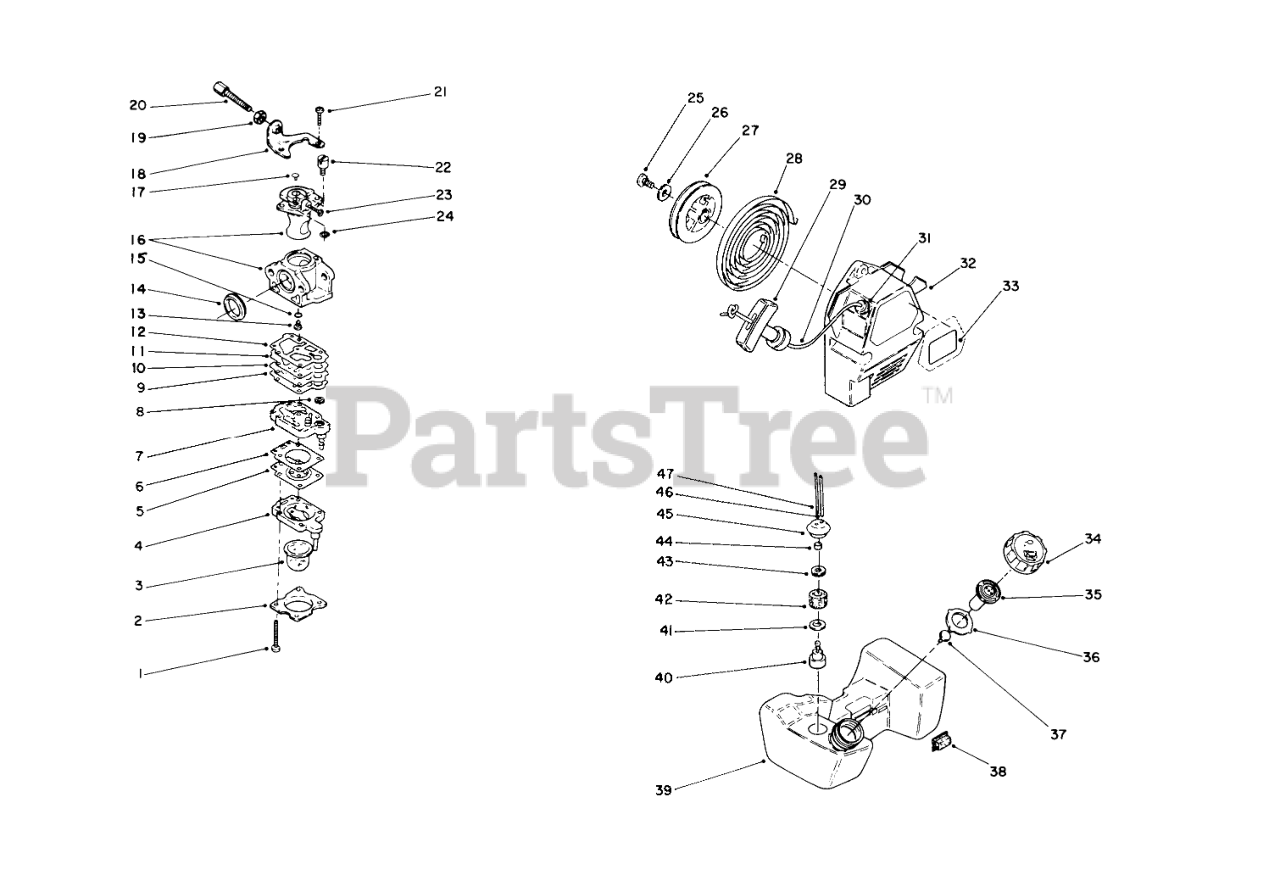

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-1690

SCREW

$

$

Not available

2

Toro 77-1680

Cover-Primer

$

$

Not available

3

Toro 77-1670

PRIMER PUMP

$19.99

$

In Stock, only 1 left!

0

4

Toro 77-1660

PRIMER BODY

$

$

Not available

5

Toro 77-1650

DIAPHRAGM

$

$

Not available

6

Toro 77-1640

DIAPHRAGM GASKET

$

$

Not available

7

Toro 77-1630

PUMP BODY

$117.99

$

Usually ships in 3-6 days

0

8

Toro 77-1620

SCREEN

$

$

Not available

9

Toro 77-1610

PUMP GASKET

$

$

Not available

10

Toro 77-1600

Plate

$

$

Not available

11

Toro 77-1590

DIAPHRAGM

$

$

Not available

12

Toro 77-1580

DIAPHRAM GASKET

$19.99

$

Usually ships in 3-6 days

0

13

Toro 77-1570

MAIN JET

$

$

Not available

14

Toro 77-1550

RUBBER CARB GASKET

$6.49

$

Usually ships in 3-6 days

0

15

Toro 77-1560

MAIN JET O-RING

$

$

Not available

16

Body-Carburator (Ref.)

$

$

Not available

17

Toro 77-1530

Plug

$

$

Not available

18

Toro 77-1490

BRACKET

$

$

Not available

19

Toro 77-1480

LOCKNUT

$

$

Not available

20

Toro 77-1470

ADJUSTING SCREW

$

$

Not available

21

Toro 77-1500

SCREW

$

$

Not available

22

Toro 77-1510

Holder-Wire

$

$

Not available

23

Toro 77-1540

THROTTLE VALVE

$

$

Not available

24

Toro 77-1520

Clip

$

$

Not available

25

Toro 60-8220

SCREW

$

$

Not available

Toro 77-1420

Carburator (Incl. Ref. #1-24)
(Superseded to 99-5283)

$

$

Not available

Toro 77-2110

CARB KIT

$

$

Not available

25

Toro 65-4470

WASHER

$

$

Not available

27

Toro 60-8230

REEL

$

$

Not available

28

Toro 54-5420

SPRING

$

$

Not available

29

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

30

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

31

Toro 77-1930

GUIDE

$

$

Not available

32

Toro 77-1940

Case-Starter
(Superseded to 82-6170)

$257.99

$

Usually ships in 3-6 days

0

33

Toro 76-0790

Decal-Toro

$

$

Not available

Toro 77-1850

Starter Assembly-Recoil (Incl. Ref. #25-32)
(Superseded to 82-6180)

$

$

Not available

34

Toro 77-1990

FUEL TANK CAP

$37.99

$

Usually ships in 3-6 days

0

35

Toro 77-2000

BREATHER VALVE

$38.99

$

Usually ships in 3-6 days

0

36

Toro 77-2010

PACKING

$14.99

$

Usually ships in 3-6 days

0

37

Toro 77-2020

CAP

$

$

Not available

Cap Assembly (Incl. Ref. #34-37)

$

$

Not available

38

Toro 60-8280

PAD

$

$

Not available

39

Toro 77-1900

Tank Assembly-Fuel
(Superseded to 88-0230)

$283.99

$

Usually ships in 3-6 days

0

40

Toro 77-2070

Weight-Filter

$

$

Not available

41

Toro 77-2060

Seal

$

$

Not available

42

Toro 77-2050

Filter-Fuel
(Superseded to 88-0250)

$

$

Not available

43

Toro 77-2040

Washer-Seal

$

$

Not available

44

Toro 77-1970

COLLAR

$

$

Not available

45

Toro 77-2030

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

46

Toro 54-6390

TUBE, FUEL

$

$

Not available

47

Toro 77-1960

RETURN FUEL HOSE

$27.99

$

Usually ships in 3-6 days

0

Toro 77-2100

Filter Assembly-Fuel
(Superseded to 88-0250)

$

$

Not available
