51655 (TC 3110) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) ENGINE ASSEMBLY Parts Diagram

String Trimmer

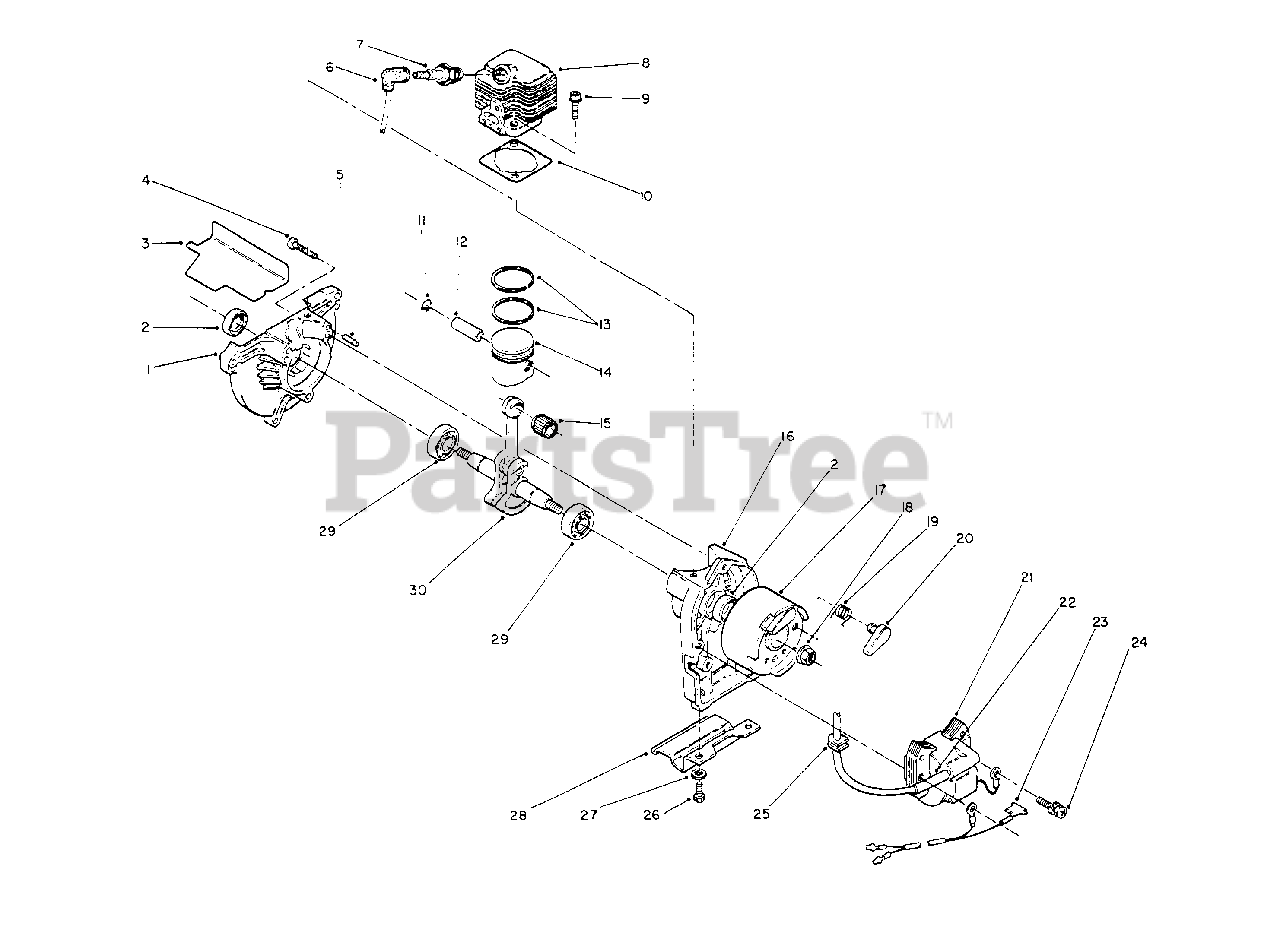

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 77-1110

Case-Drive

$

$

Not available

2

Lawn-Boy 54-4380

Seal-Oil

$

$

Not available

3

Lawn-Boy 82-6090

Gasket-Baffle

$

$

Not available

4

Lawn-Boy 54-4330

Screw-Pan Hd.

$

$

Not available

5

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

6

Lawn-Boy 77-1340

Boot-Plug

$

$

Not available

7

Lawn-Boy 77-1350

Plug-Spark
(Superseded to 45-0320)

$

$

Not available

8

Lawn-Boy 77-1240

Cylinder Head

$495.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 60-7720

Bolt-Cylinder Head

$

$

Not available

10

Lawn-Boy 60-7730

Gasket-Cylinder Head

$7.49

$

In Stock, Qty 6

0

11

Lawn-Boy 54-5920

Clip-Piston Pin

$

$

Not available

12

Lawn-Boy 54-5910

Pin-Piston

$

$

Not available

13

Lawn-Boy 77-1260

Set-Piston Ring

$

$

Not available

14

Lawn-Boy 77-1270

Piston Ass'y (Incl. Ref. #12)

$

$

Not available

15

Lawn-Boy 54-5930

Bearing-Needle

$

$

Not available

16

Lawn-Boy 60-7600

Case-Starter

$

$

Not available

17

Lawn-Boy 77-1360

Flywheel (Incl. Ref. #19 & 20)

$

$

Not available

18

Lawn-Boy 54-4670

Nut-Conical

$

$

Not available

19

Lawn-Boy 77-1370

Spring-Return

$

$

Not available

20

Lawn-Boy 77-1380

Ratchet

$

$

Not available

21

Lawn-Boy 77-1400

Coil-Ignition

$

$

Not available

22

Lawn-Boy 77-2180

Tube

$

$

Not available

23

Lawn-Boy 77-2190

Wire Lead Assembly

$

$

Not available

24

Lawn-Boy 54-4790

Bolt/Washer

$6.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 60-7840

Grommet

$

$

Not available

26

Lawn-Boy 46-0053

Screw

$

$

Not available

27

Lawn-Boy 3254-8

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 82-6110

Stand

$21.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 54-4360

Bearing-Main

$

$

Not available

30

Lawn-Boy 77-1330

Crankshaft Assembly

$

$

Not available
