51652 (TC 3105) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

String Trimmer

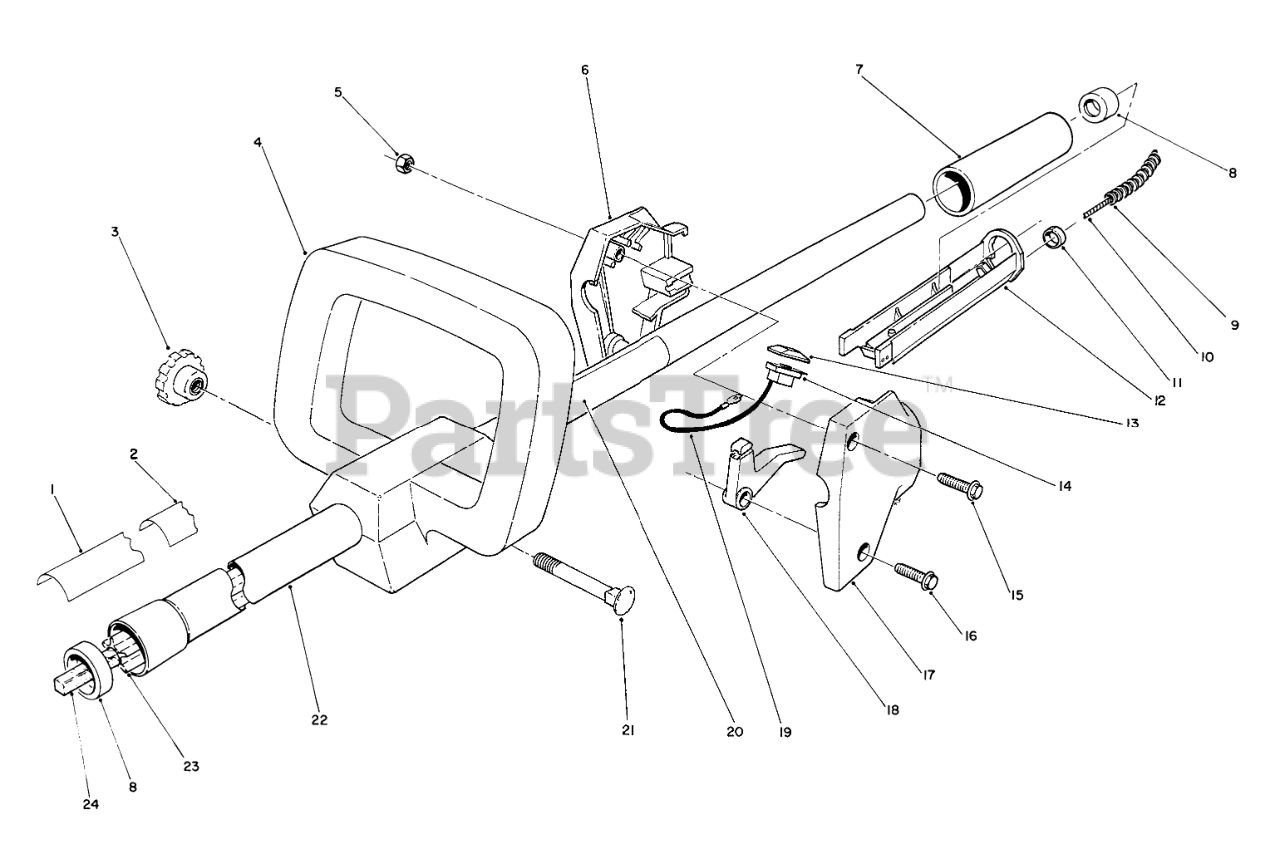

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-8720

DECAL - TC 3105

$

$

Not available

2

Toro 82-6060

DECAL - WARNING

$

$

Not available

3

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

4

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

5

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

6

Toro 57-5481

RH HOUSING

$

$

Not available

7

Toro 53-7120

GRIP - RUBBER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 52-4850

CASING RETAINER

$

$

Not available

9

Toro 55-8411

CABLE COVER

$

$

Not available

10

Toro 76-4370

THROTTLE CABLE

$

$

Not available

11

Toro 2412-48

RING FITTING

$

$

Not available

12

Toro 53-7290

TROUGH 1"

$

$

Not available

13

Toro 218-557

SWITCH COVER

$2.99

$

Usually ships in 3-6 days

0

14

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

15

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

16

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 57-5491

LH HOUSING

$

$

Not available

18

Toro 53-7273

THROTTLE LEVER

$

$

Not available

19

Toro 53-7370

WIRE ASM

$

$

Not available

20

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

21

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

22

Toro 82-2570

SHAFT HOUSING TUBE

$

$

Not available

23

Toro 82-6160

SHAFT SPACER

$32.99

$

Usually ships in 3-6 days

0

24

Toro 82-8480

DRIVE SHAFT

$

$

Not available
