51652 (TC 3105) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) SAW AND BRUSH BLADE(OPTIONAL) Parts Diagram

String Trimmer

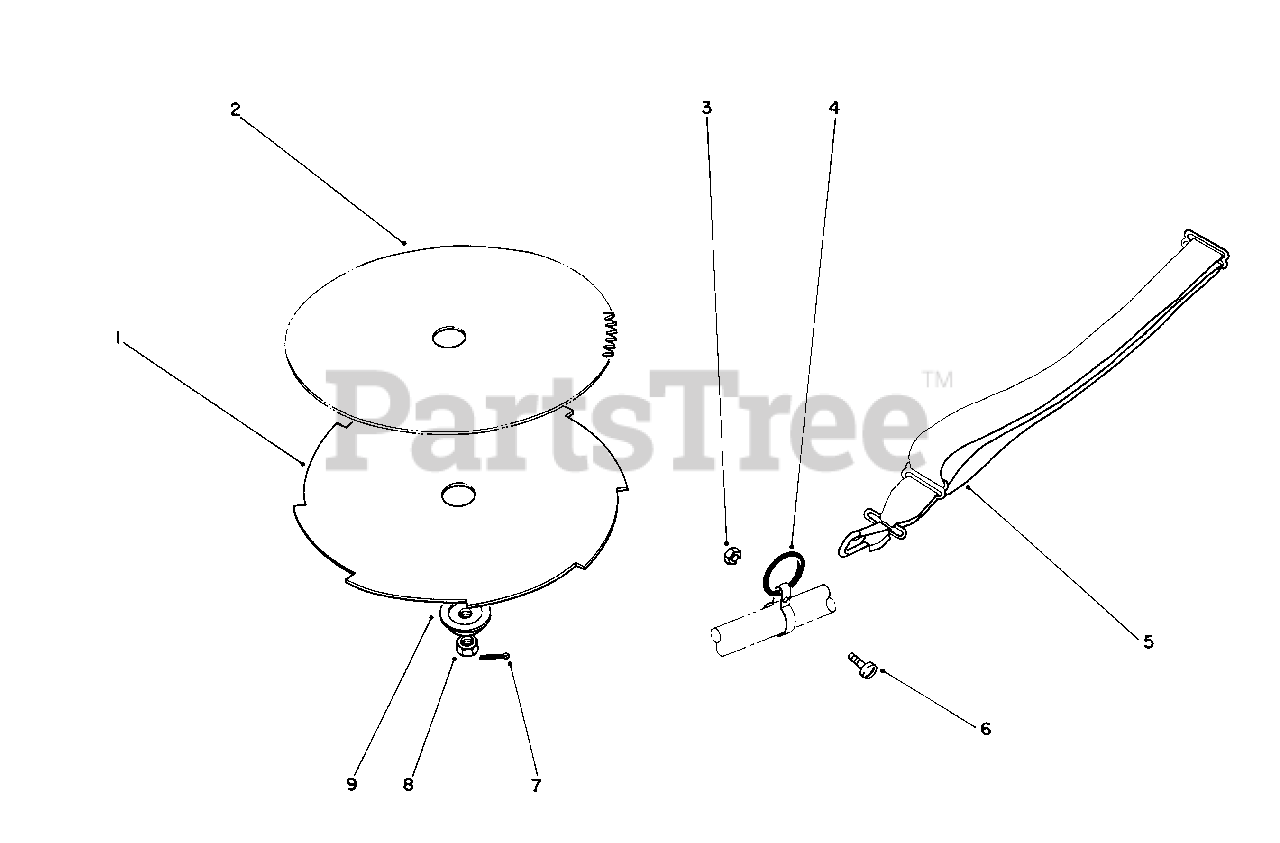

SAW AND BRUSH BLADE(OPTIONAL) Parts Diagram

  • Title
1

Lawn-Boy 51-1240

8" Dia. Blade (8 Tooth)

$

$

Not available

2

Lawn-Boy 51-1230

8" Dia. Blade (80 Tooth)

$

$

Not available

3

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 44-7540

Ring-Harness

$

$

Not available

5

Lawn-Boy 46-2951

Strap-Shoulder

$

$

Not available

6

$0.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 3272-3

Pin-Cotter

$2.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 41-5410

Nut L.H.

$8.99

$

Usually ships in 3-6 days

0

9

Adapter-Blade

$

$

Not available

Lawn-Boy 82-6100

Kit-Brush Blade (Incl. Ref. #1 & 3-9)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2690

Kit-Harness Ring (Incl. Ref. #3, 4 & 6)

Note: Not Illustrated

$

$

Not available
