51650 (TC 3100) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

String Trimmer

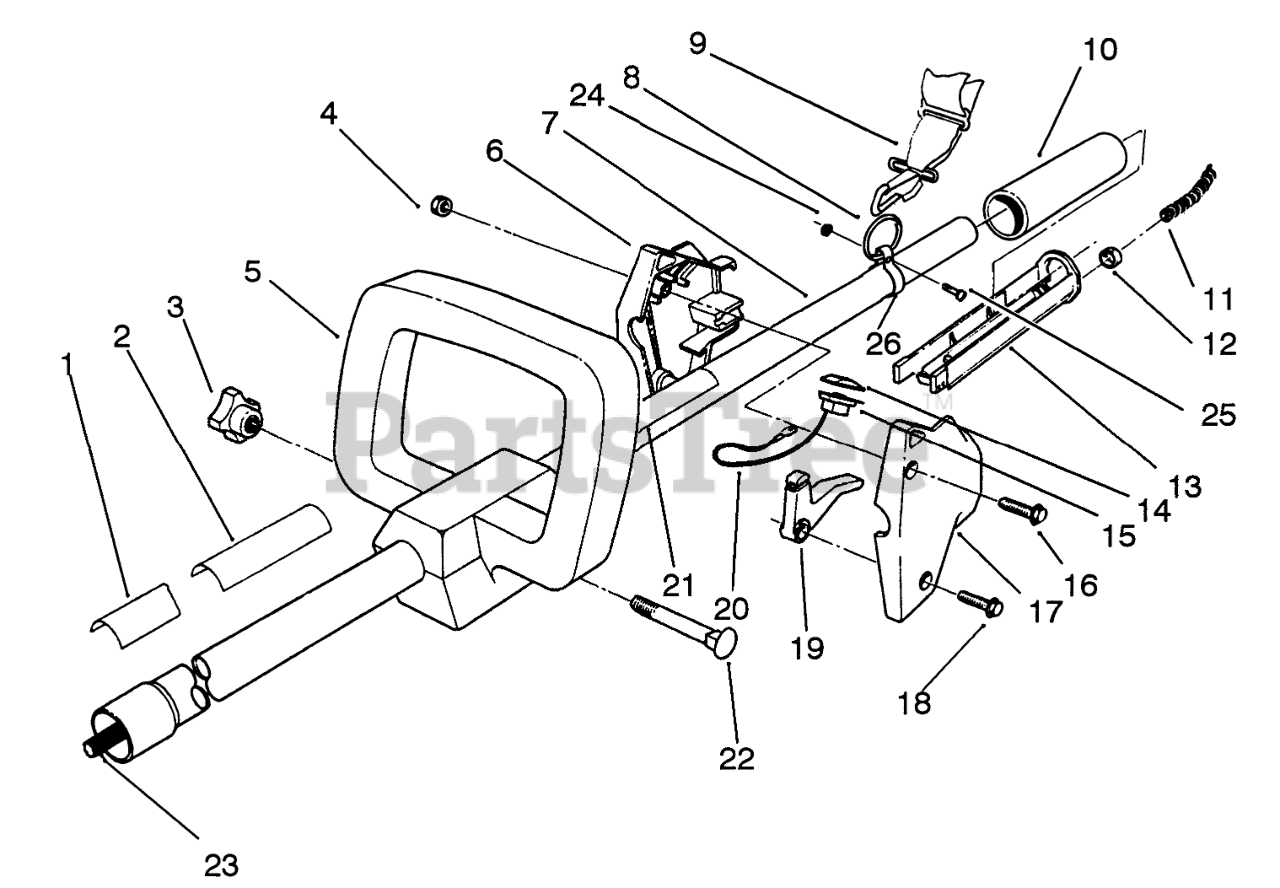

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 61-4480

DECAL - TC3100

$

$

Not available

2

Toro 82-6060

DECAL - WARNING

$

$

Not available

3

$17.99

$

In Stock, only 2 left!

0

4

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

5

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

6

Toro 57-5481

RH HOUSING

$

$

Not available

7

Toro 61-4390

TUBE ASSEMBLY

$

$

Not available

8

Toro 44-7540

RING-HARNESS

$

$

Not available

9

Toro 57-5430

Harness-Shoulder
(Superseded to 46-2951)

$

$

Not available

10

Toro 53-7120

GRIP - RUBBER

$

$

Not available

11

Toro 55-8411

CABLE COVER

$

$

Not available

12

Toro 2412-48

RING FITTING

$

$

Not available

13

Toro 53-7290

TROUGH 1"

$

$

Not available

14

Toro 218-557

SWITCH COVER

$

$

Not available

15

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

16

$2.99

$

In Stock, only 2 left!

0

17

Toro 57-5491

LH HOUSING

$

$

Not available

18

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 53-7273

THROTTLE LEVER

$

$

Not available

20

Toro 53-7370

WIRE ASM

$

$

Not available

21

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

22

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

23

Toro 53-7211

SPLINE SHAFT

$245.99

$

Usually ships in 3-6 days

0

24

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

25

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

26

Toro 44-7550

HARNESS CLAMP

$

$

Not available
