51650 (TC 3100) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

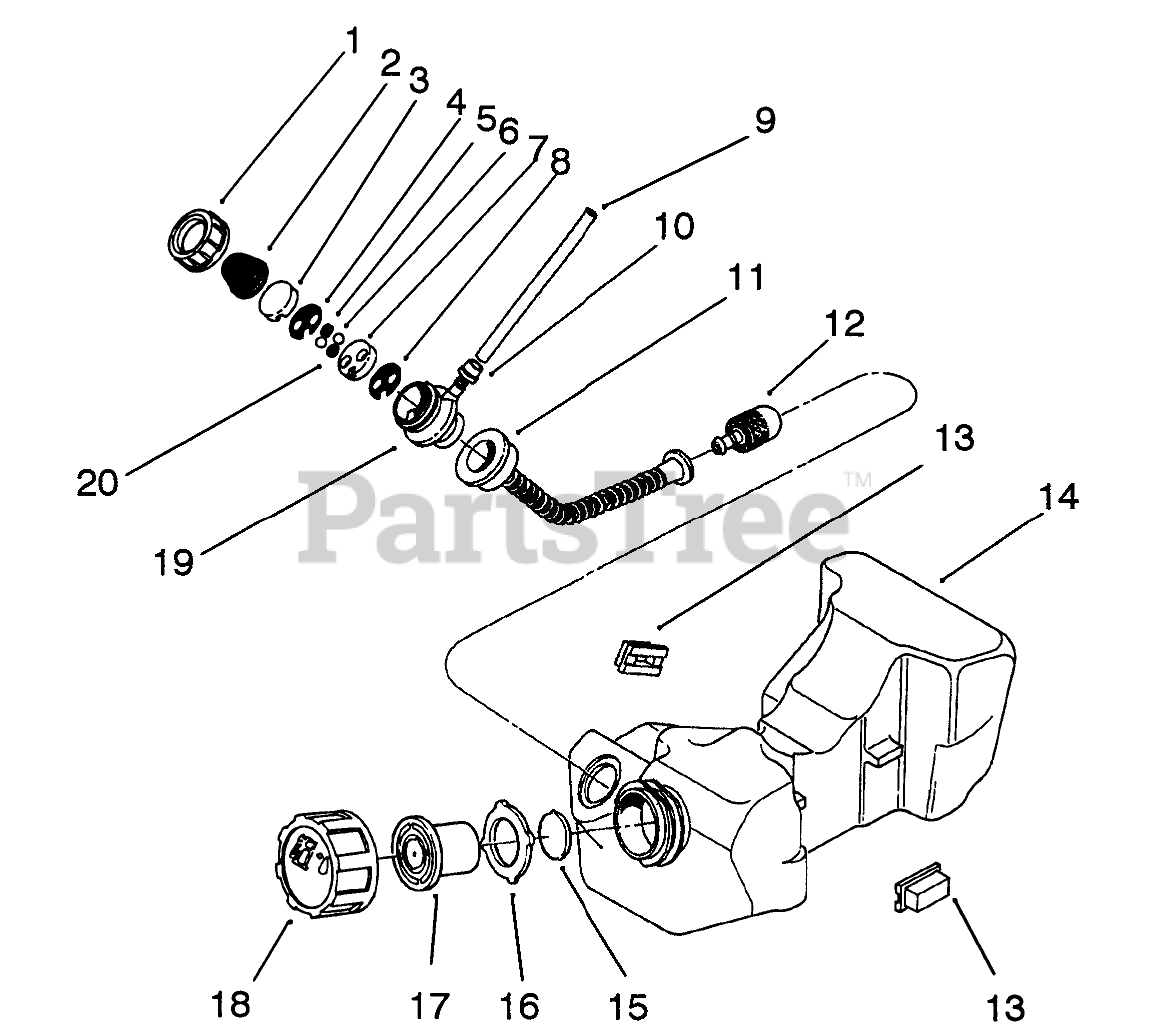

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5510

PUMP CAP

$

$

Not available

2

Toro 54-5520

CAP

$25.99

$

Usually ships in 3-6 days

0

3

Toro 54-5530

SEAT VALVE

$

$

Not available

4

Toro 54-5460

GASKET

$

$

Not available

5

Toro 54-5470

SPONGE

$

$

Not available

6

Toro 54-5480

BALL

$6.49

$

In Stock, only 2 left!

0

7

Toro 54-5490

SEAT VALVE

$

$

Not available

8

Toro 54-5500

GASKET

$6.49

$

Usually ships in 3-6 days

0

9

Toro 54-7040

Tube-Fuel
(Superseded to 54-6060)

$

$

Not available

10

Toro 54-5550

CLIP

$2.99

$

Usually ships in 3-6 days

0

11

Toro 60-8270

SUCTION HOSE

$

$

Not available

12

Toro 54-5540

FUEL FILTER

$51.99

$

In Stock, only 1 left!

0

13

Toro 60-8280

PAD

$

$

Not available

14

Toro 88-0140

Fuel Tank Assembly (Incl. Ref. #11, 12 15-18 & 19)

$

$

Not available

15

Toro 77-2020

CAP

$

$

Not available

16

Toro 77-2010

PACKING

$15.99

$

Usually ships in 3-6 days

0

17

Toro 77-2000

BREATHER VALVE

$43.99

$

Usually ships in 3-6 days

0

18

Toro 77-1990

FUEL TANK CAP

$42.99

$

Usually ships in 3-6 days

0

19

Toro 54-5570

Pump Priming Assembly (Incl. Ref. #1-8 & 20)

$

$

Not available

20

Toro 60-8260

Cushion Ball
(Superseded to 54-5470)

$

$

Not available

Toro 77-1980

Cap Assembly (Incl. Ref. #15-18)

Note: Not illustrated

$55.99

$

Usually ships in 3-6 days

0
