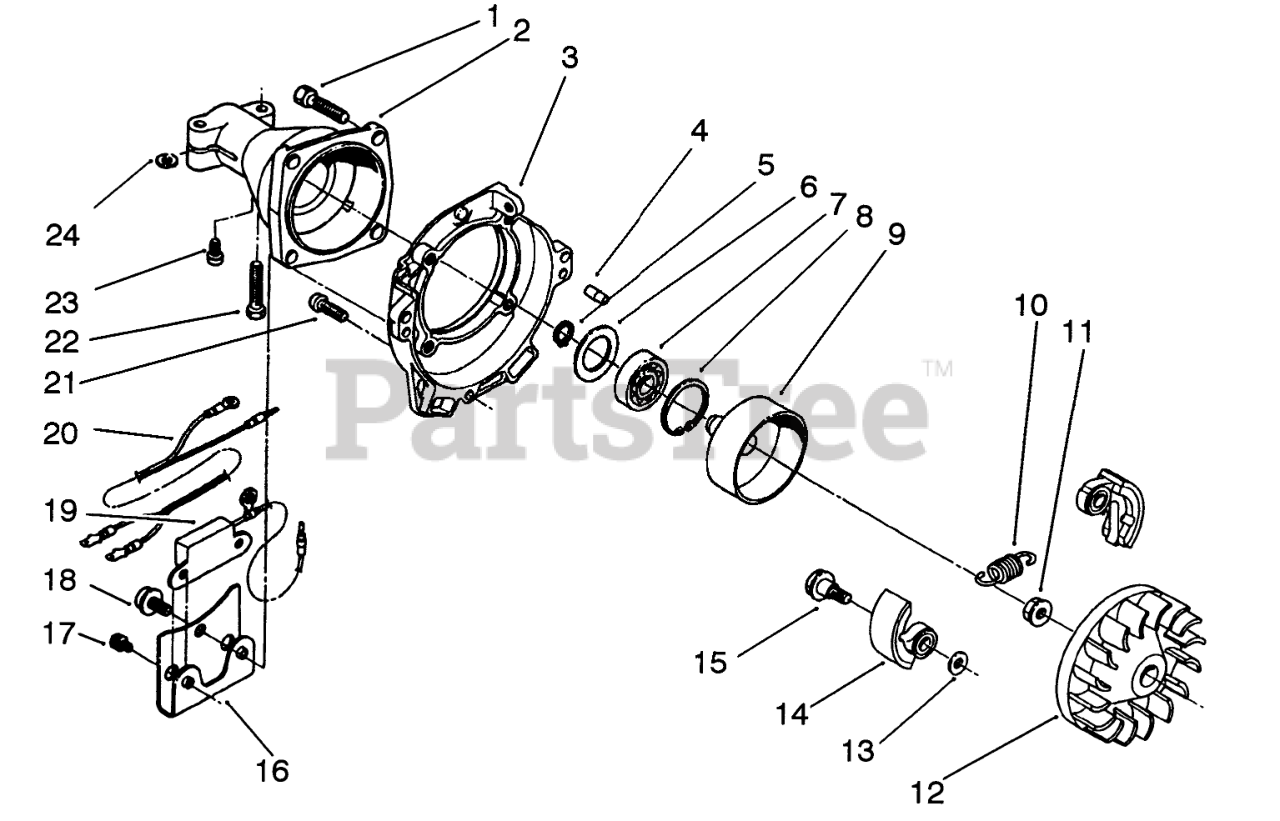

51650 (TC 3100) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5720

Bolt/Washer

$

$

Not available

2

Toro 65-2530

CLUTCH CASE

$

$

Not available

3

Toro 88-0170

FAN CASE

$

$

Not available

4

Toro 60-7590

PIN

$

$

Not available

5

Toro 54-5690

SNAP RING

$

$

Not available

6

Toro 54-5700

Washer

$

$

Not available

7

Toro 54-5680

BALL BEARING

$

$

Not available

8

Toro 54-5670

SNAP RING

$

$

Not available

9

Toro 54-6250

CLUTCH DRUM

$

$

Not available

10

Toro 65-4440

SPRING

$

$

Not available

11

Toro 54-4670

NUT

$

$

Not available

12

Toro 65-2580

FAN

$

$

Not available

13

Toro 65-4450

WASHER

$3.99

$

Usually ships in 3-6 days

0

14

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

15

Toro 54-5290

CLUTCH BOLT

$10.99

$

Usually ships in 3-6 days

0

16

Toro 60-7630

Bracket-Unit

$

$

Not available

17

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

18

Toro 60-7620

SCREW & WASHER

$

$

Not available

19

Toro 65-2590

TRANSISTOR

$

$

Not available

20

Toro 54-6020

WIRE,LEAD

$34.99

$

Usually ships in 3-6 days

0

21

Toro 60-7610

BOLT & WASHER

$

$

Not available

22

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

23

Toro 65-2550

Screw/Washer

$

$

Not available

24

Toro 65-2540

WASHER

$

$

Not available

Toro 77-1830

Clutch Assembly (Incl. Ref. #10 & 14)

Note: Not Illustrated.

$

$

Not available
