51650 (TC 3100) - Toro String Trimmer (SN: 008000001 - 008999999) (1988) TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

String Trimmer

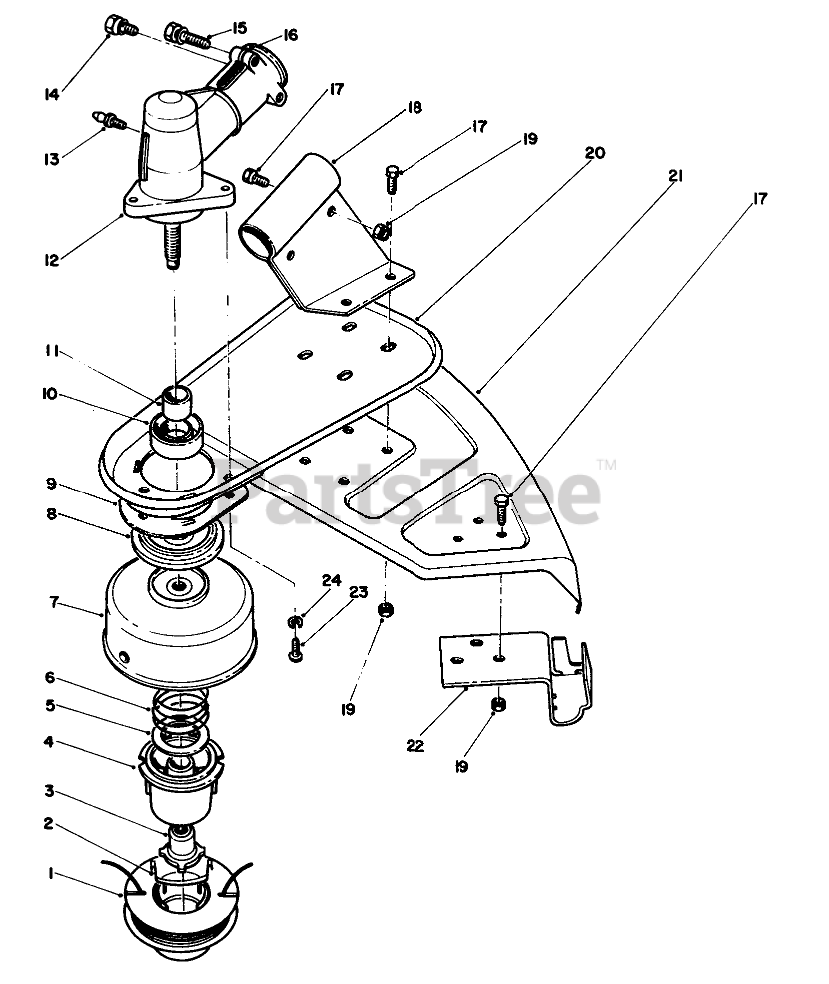

TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 46-2680

Prewound Spool
(Superseded to 83-4650)

$

$

Not available

2

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

3

Toro 61-4560

LH DRIVER

$

$

Not available

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

6

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

7

Toro 46-2650

ASM - TRIMMER DRUM & EYELET

$

$

Not available

8

Toro 48-2080

DUST CAP F/W

$157.99

$

Usually ships in 3-6 days

0

9

Toro 57-5540

GRASS WRAP GUARD

$

$

Not available

10

Toro 48-2090

OIL SEAL

$

$

Not available

11

Toro 48-2100

SPLINED SLEEVE

$

$

Not available

12

Toro 52-5710

Gear Box Assembly (Incl. Ref. #10, 11, & 13-16)

$

$

Not available

13

Toro 53-7410

ZERK

$

$

Not available

14

Toro 48-2150

HHMS SCREW

$8.99

$

Usually ships in 3-6 days

0

15

Toro 48-2130

HHMS SCREW

$

$

Not available

16

Toro 48-2140

WASHER

$

$

Not available

17

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

18

Toro 47-2760

SHIELD BRKT

$

$

Not available

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 47-2800

SHIELD SUPPORT R

$

$

Not available

21

Toro 61-4571

Shield-Grass
(Superseded to 61-4571-03)

$

$

Not available

22

Toro 61-4540

BRACKET & KNIFE ASM

$

$

Not available

23

Toro 57-5550

SCREW

$

$

Not available

24

Toro 55-8050

LOCKWASHER

$

$

Not available

Toro 46-2800

Head Assembly (Incl. Ref. #1-7)
(Superseded to 83-4610)

$

$

Not available
