51650 (TC 3100) - Lawn-Boy String Trimmer (SN: 002000001 - 002999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

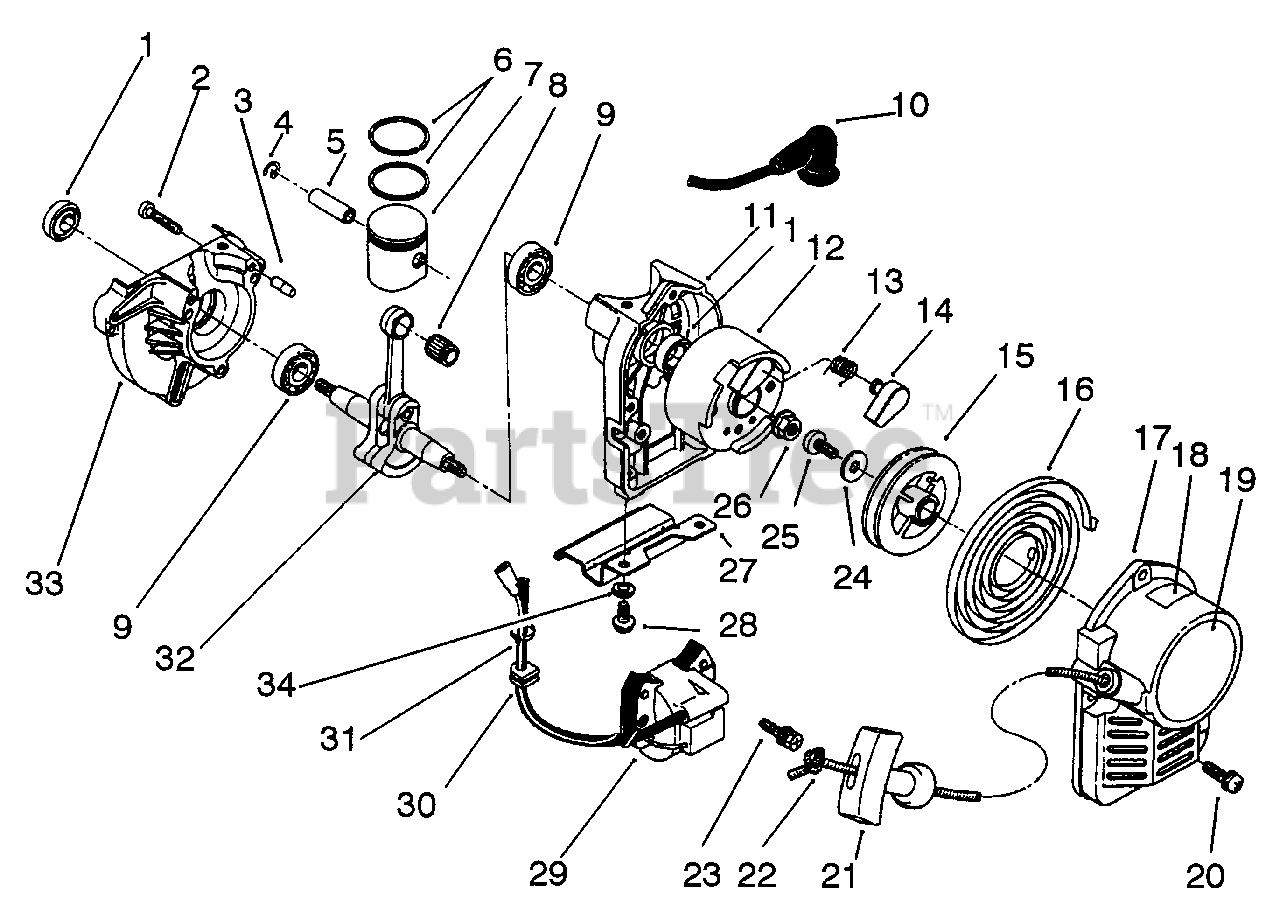

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 54-4380

Seal-Oil

$24.99

$

Usually ships in 3-6 days

0

$

$

Not available

3

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

4

Lawn-Boy 54-5920

Clip-Piston Pin

$

$

Not available

5

Lawn-Boy 54-5910

Pin-Piston

$

$

Not available

6

Lawn-Boy 54-5490

Ring-Piston

$

$

Not available

7

Lawn-Boy 54-5900

Piston Assembly (Incl. Ref. #5)

$

$

Not available

8

Lawn-Boy 54-5930

Bearing-Needle

$

$

Not available

9

Lawn-Boy 54-4360

Bearing-Ball

$

$

Not available

10

Lawn-Boy 54-4730

Cap-Plug

$

$

Not available

11

Lawn-Boy 60-7600

Case-Starter Side

$

$

Not available

12

Lawn-Boy 88-0190

Rotor Assembly (Incl. Ref. #13-14)

$

$

Not available

13

Lawn-Boy 77-1370

Spring-Return

$

$

Not available

14

$

$

Not available

$

$

Not available

16

Lawn-Boy 54-5420

Spring-Spiral

$

$

Not available

17

Lawn-Boy 88-0120

Case-Starter

$

$

Not available

18

Lawn-Boy 65-2690

Decal-Hot

$5.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 86-9450

Decal-Toro

$

$

Not available

20

Lawn-Boy 60-7930

Screw/Washer

$

$

Not available

21

Lawn-Boy 54-5440

Knob-Starter
(Superseded to 56-8970)

$27.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 54-6370

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

23

Lawn-Boy 60-7610

Bolt/Washer

$

$

Not available

24

$

$

Not available

25

$

$

Not available

$

$

Not available

27

$20.99

$

Usually ships in 3-6 days

0

28

$

$

Not available

29

Lawn-Boy 60-7860

Coil-Ignition

$

$

Not available

30

$

$

Not available

$

$

Not available

32

Lawn-Boy 77-1330

Crankcase Assembly

$

$

Not available

33

Lawn-Boy 60-7650

Case-Drive Side

$

$

Not available

34

Lawn-Boy 3254-8

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

Lawn-Boy 88-0110

Recoil Assembly (Incl. Ref. #15-17, 21, 22, 24 & 25)

Note: Not Illustrated

$

$

Not available
