51645 (TC 5000) - Toro String Trimmer (SN: 008000001 - 008999999) (1988) FUEL TANK ASSEMBLY Parts Diagram

String Trimmer

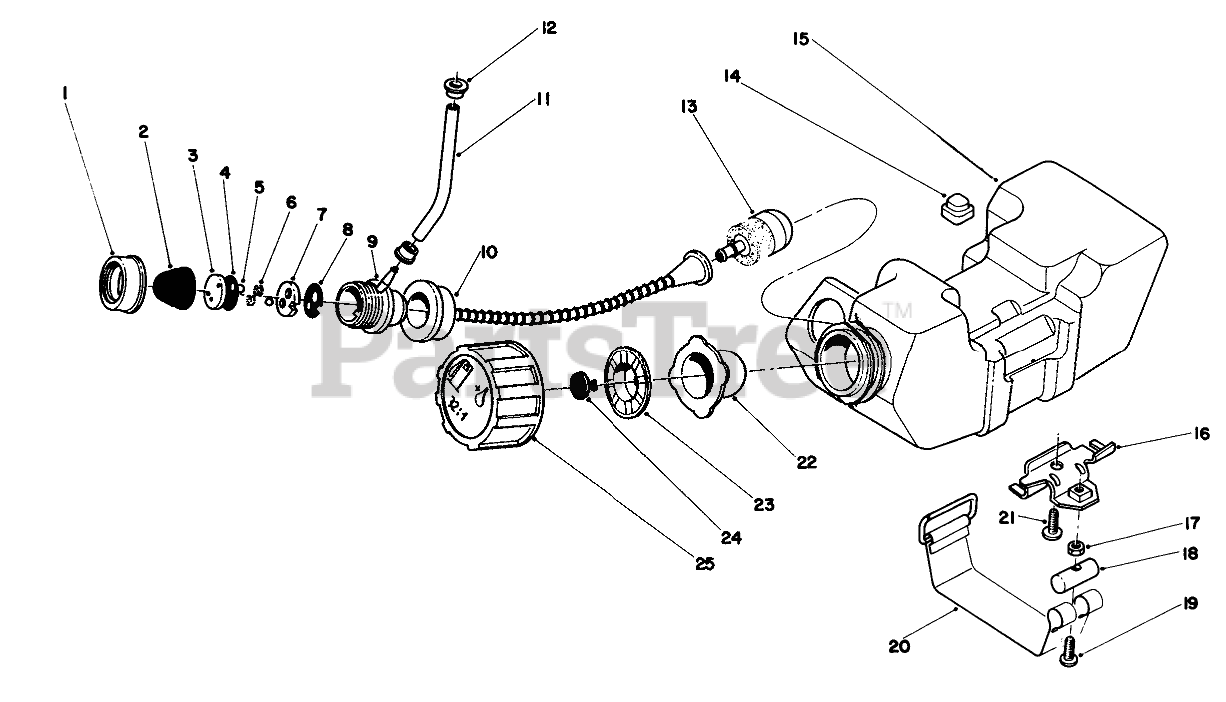

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5510

PUMP CAP

$

$

Not available

2

Toro 54-5520

CAP

$25.99

$

Usually ships in 3-6 days

0

3

Toro 54-5530

SEAT VALVE

$

$

Not available

4

Toro 54-5460

GASKET

$

$

Not available

5

Toro 54-5480

BALL

$6.49

$

In Stock, only 2 left!

0

6

Toro 54-5470

SPONGE

$

$

Not available

7

Toro 54-5490

SEAT VALVE

$

$

Not available

8

Toro 54-5500

GASKET

$6.49

$

Usually ships in 3-6 days

0

9

Toro 54-5570

Pump-Primer (Incl. Ref. #2-8)

$

$

Not available

10

Toro 54-7050

HOSE, SUCTION

$54.99

$

Usually ships in 3-6 days

0

11

Toro 54-7040

Tube-Fuel
(Superseded to 54-6060)

$

$

Not available

12

Toro 54-5550

CLIP

$2.99

$

Usually ships in 3-6 days

0

13

Toro 54-5540

FUEL FILTER

$51.99

$

In Stock, only 1 left!

0

14

Toro 54-6400

PAD

$

$

Not available

15

Toro 54-7070

Fuel Tank Assembly (Incl. Ref. #1-10, 13, 21-24)

$

$

Not available

16

Toro 54-7080

HANGER, TANK

$

$

Not available

17

Toro 54-5840

NUT

$

$

Not available

18

Toro 54-6430

BAR

$

$

Not available

19

Toro 54-4330

Screw

$

$

Not available

20

Toro 54-7060

BAND, TANK

$56.99

$

Usually ships in 3-6 days

0

21

Toro 56-6150

Screw

$

$

Not available

22

Toro 54-5630

GASKET - PACKING

$14.99

$

Usually ships in 3-6 days

0

23

Toro 54-5620

HOLDER

$14.99

$

In Stock, only 1 left!

0

24

Toro 54-5610

BREATHER VALVE

$20.99

$

Usually ships in 3-6 days

0

25

Toro 54-5600

TANK CAP

$47.99

$

Usually ships in 3-6 days

0

Toro 54-5590

Tank Cap Assembly (Incl. Ref. #22-25)

$63.99

$

Usually ships in 3-6 days

0
