51645 (TC 5000) - Toro String Trimmer (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

String Trimmer

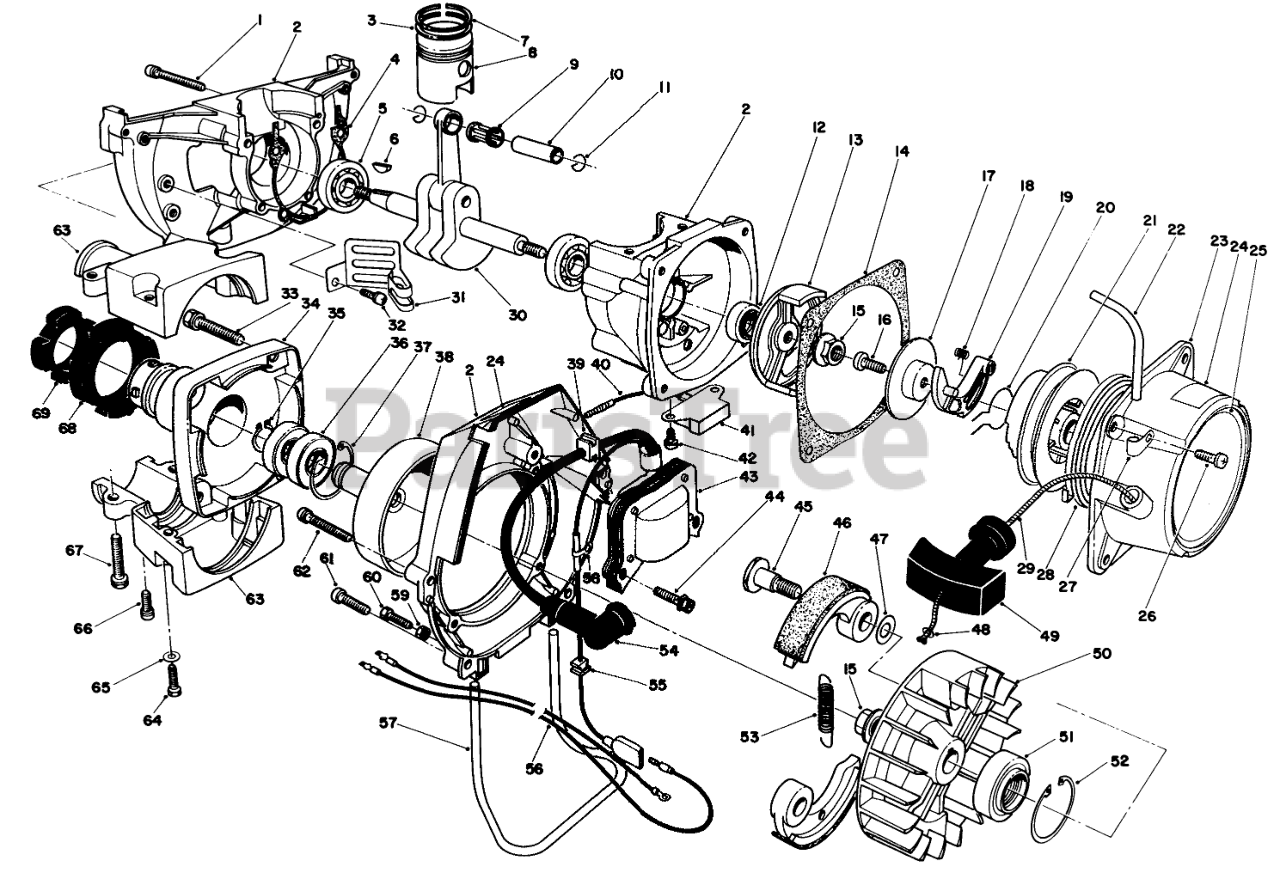

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5760

SCREW & WASHER

$

$

Not available

2

Toro 54-6540

Crankcase (Incl. Ref. #1, & 61)

$

$

Not available

3

Toro 54-6650

RING,PISTON

$

$

Not available

4

Toro 54-6580

GASKET,CASE

$

$

Not available

5

Toro 54-5820

BALL BEARING

$43.99

$

Usually ships in 3-6 days

0

6

Toro 544660

Key-Woodruff

$

$

Currently unavailable

7

Toro 54-6640

RING,PISTON

$

$

Not available

8

Toro 54-6660

Piston Set (Incl. Ref. #10)

$

$

Not available

9

Toro 54-6690

BEARING, NEEDLE

$

$

Not available

10

Toro 54-6670

PIN, PISTON

$

$

Not available

11

Toro 54-6680

CLIP, PISTON PIN

$

$

Not available

12

Toro 544380

Seal-Oil

$

$

Currently unavailable

13

Toro 54-6290

PULLEY, STARTER

$

$

Not available

14

Toro 54-6980

GASKET, STARTER

$

$

Not available

15

Toro 544670

Nut-Conical

$

$

Currently unavailable

16

Toro 54-6340

Screw
(Superseded to 60-8220)

$

$

Not available

17

Toro 54-6350

PLATE, FRICTION

$

$

Not available

18

Toro 54-6330

SPRING, RETURN

$

$

Not available

19

Toro 54-6360

RATCHET

$

$

Not available

20

Toro 54-6320

SPRING, FRICTION

$

$

Not available

21

Toro 54-7000

REEL

$

$

Not available

22

Toro 54-6800

Tube-Fuel

$

$

Not available

23

Toro 54-6990

Recoil-Starter (Incl. Ref. #13, 16-21, 24, 25, 28, 29, & 49)

$

$

Not available

24

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

25

Toro 53-7380

TORO DECAL

$

$

Not available

26

Toro 54-6260

Screw

$

$

Not available

27

Toro 54-5340

Clamp

$

$

Not available

28

Toro 54-7010

SPRING, SPIRAL

$

$

Not available

29

Toro 54-7030

Rope-Starter
(Superseded to 613773)

$30.99

$

Usually ships in 3-6 days

0

30

Toro 54-6700

Crankshaft (Incl. Ref. #6 & 9)

$

$

Not available

31

Toro 54-6570

Clamp

$

$

Not available

32

Toro 54-5790

Screw & Washer

$

$

Not available

33

Toro 54-4440

Bolt

$

$

Not available

34

Toro 54-6550

CASE, CLUTCH

$

$

Not available

35

Toro 54-5690

SNAP RING

$

$

Not available

36

Toro 54-5680

BALL BEARING

$

$

Not available

37

Toro 54-5670

SNAP RING

$

$

Not available

38

Toro 54-6920

DRUM, CLUTCH

$193.99

$

Usually ships in 3-6 days

0

39

Toro 54-6000

Grommet
(Superseded to 95-1900)

$

$

Not available

40

Toro 54-6770

WIRE, LEAD

$

$

Not available

41

Toro 54-6750

Unit-Transistor (Incl. Ref. #40)

$

$

Not available

42

Toro 54-6760

SCREW & WASHEROR

$

$

Not available

43

Toro 54-6710

COIL, IGNITION

$

$

Not available

44

Toro 544790

Bolt & Washer

$

$

Currently unavailable

45

Toro 54-6930

BOLT,CLUTCH

$

$

Not available

46

Toro 54-6960

Shoe-Clutch
(Superseded to 54-6940)

$

$

Not available

47

Toro 54-6950

WASHER

$

$

Not available

48

Toro 54-7020

WASHER

$

$

Not available

49

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

50

Toro 54-6780

FLYWHEEL

$

$

Not available

51

Toro 54-5800

OIL SEAL

$22.99

$

Usually ships in 3-6 days

0

52

Toro 54-4490

SNAPRING

$

$

Not available

53

Toro 54-6970

SPRING

$

$

Not available

54

Toro 544730

Cap-Plug

$

$

Currently unavailable

55

Toro 54-6730

GROMMET

$

$

Not available

56

Toro 54-6740

WIRE,LEAD

$

$

Not available

57

Toro 53-7130

TANK GUARD

$

$

Not available

58

Toro 54-6720

Clamp

$

$

Not available

59

Toro 54-5840

NUT

$

$

Not available

60

Toro 54-5830

BOLT

$

$

Not available

61

Toro 54-5770

Screw

$

$

Not available

62

Toro 54-4330

Screw

$

$

Not available

63

Toro 54-6560

VV2DER

$

$

Not available

64

Toro 54-6500

Bolt

$

$

Not available

65

Toro 54-6490

Washer
(Superseded to 56-8820)

$

$

Not available

66

Toro 54-5730

SCREW & WASHER

$

$

Not available

67

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

68

Toro 54-6460

RUBBER, CUSHION (A)

$

$

Not available

69

Toro 54-6470

RUBBER, CUSHION (B)

$

$

Not available

Toro 54-6940

Clutch Assembly (Incl. Ref. #46 & 53)

$

$

Not available

Toro 52-5770

Engine Assembly (Complete)

$

$

Not available
