51645 (TC 5000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

String Trimmer

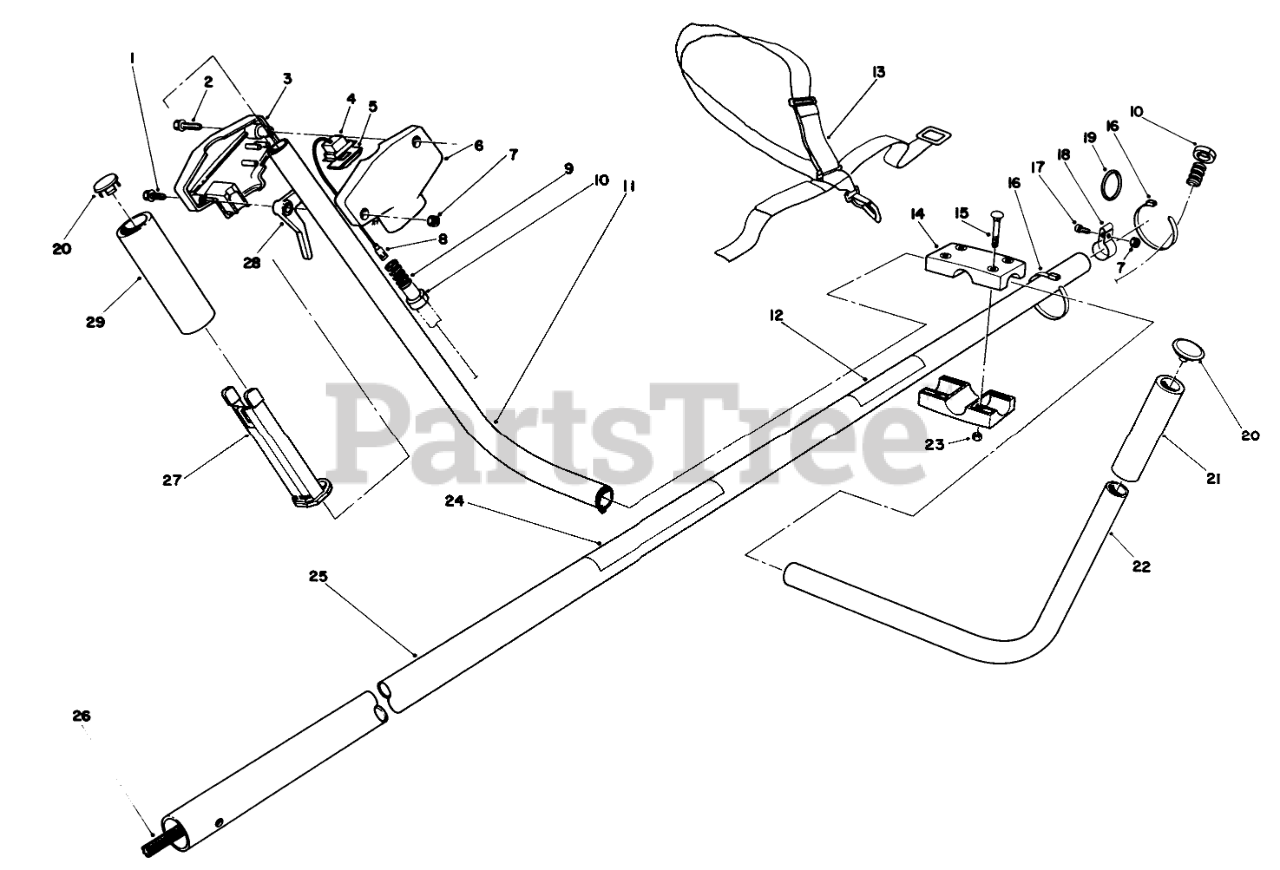

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

2

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

3

Toro 53-7251

THROTTLE HSG R H 1"

$

$

Not available

4

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

5

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

6

Toro 53-7261

THROTTLE HSG L H 1"

$

$

Not available

7

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

8

Toro 53-7370

WIRE ASM

$

$

Not available

9

Toro 55-8413

Cover-Cable

$

$

Not available

10

Toro 2412-48

RING FITTING

$

$

Not available

11

Toro 53-7330

RH HANDLE

$

$

Not available

12

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

13

Toro 46-2961

Deluxe Harness
(Superseded to 682075)

$

$

Not available

14

Toro 53-7070

CLAMP

$

$

Not available

15

Toro 3229-27

Carriage Bolt
(Superseded to 3229-5)

$1.49

$

In Stock, only 3 left!

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

18

Toro 44-2430

HARNESS CLAMP

$19.99

$

Usually ships in 3-6 days

0

19

Toro 44-7540

RING-HARNESS

$

$

Not available

20

Toro 2410-60

TUBE CLOSURE

$

$

Not available

21

Toro 235-27

FOAM GRIP

$

$

Not available

22

Toro 53-7320

LH HANDLE

$58.99

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 53-7180

DECAL

$

$

Not available

25

Toro 53-7510

TUBE ASSEMBLY

$

$

Not available

26

Toro 53-7210

SPLINED SHAFT

$

$

Not available

27

Toro 53-7280

TROUGH

$

$

Not available

28

Toro 53-7270

THROTTLE LEVER

$

$

Not available

29

Toro 53-7110

GRIP-RUBBER

$

$

Not available

Toro 46-2690

Clamp & Ring Kit (Incl. Ref. #7, & 17-19)

$

$

Not available
