51645 (TC 5000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

String Trimmer

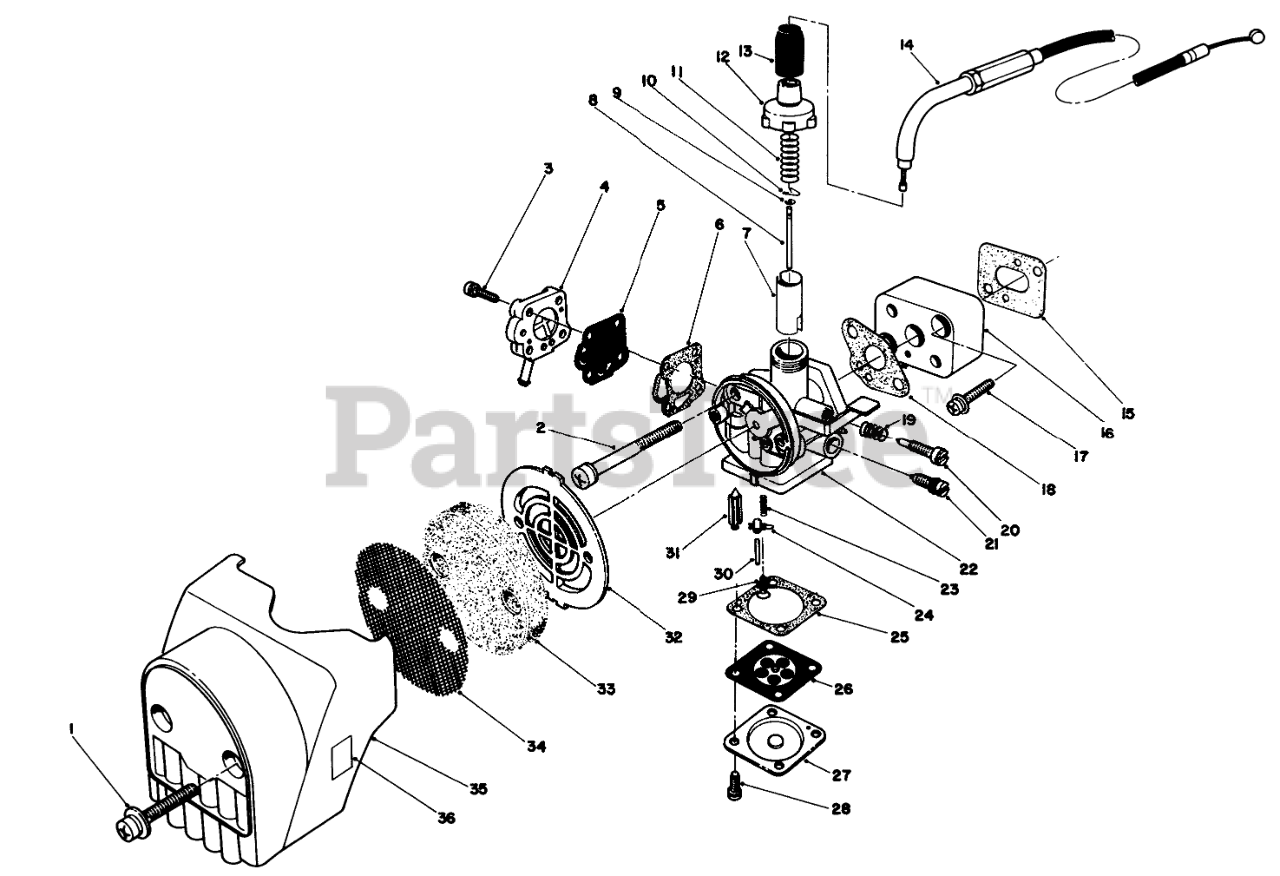

CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5150

Screw
(Superseded to 60-8020)

$

$

Not available

2

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

3

Toro 54-5040

SCREW W/ WASHER

$

$

Not available

4

Toro 54-6120

Cover-Pump
(Superseded to 54-5030)

$

$

Not available

5

Toro 54-6110

Diaphragm-Pump
(Superseded to 54-5020)

$

$

Not available

6

Toro 54-5010

PUMP COVER GASKET

$

$

Not available

7

Toro 54-6840

Valve-Throttle

$

$

Not available

8

Toro 54-6830

Needle-Jet

$

$

Not available

9

Toro 54-4930

Retainer

$

$

Not available

10

Toro 54-7090

CLIP

$

$

Not available

11

Toro 54-6820

Spring-Throttle

$

$

Not available

12

Toro 54-4910

CAP

$

$

Not available

13

Toro 54-4900

AIR SEAL

$

$

Not available

14

Toro 54-6850

WIRE, THROTTLE

$

$

Not available

15

Toro 54-6790

GASKET, INSULATOR

$

$

Not available

16

Toro 54-6040

INSULATOR

$

$

Not available

17

Toro 54-6050

Screw & Washer
(Superseded to 60-7930)

$

$

Not available

18

Toro 54-4850

CARB. GASKET

$

$

Not available

19

Toro 54-4960

ADJ. SCREW SPRING

$

$

Not available

20

Toro 54-6090

SCREW

$

$

Not available

21

Toro 54-4980

MAIN NEEDLE

$

$

Not available

22

Toro 54-6810

Carburetor Assembly (Incl. Ref. #3-13, 19-21, & 23-31)

$715.99

$

Usually ships in 3-6 days

0

23

Toro 54-4990

VALVE SPRING

$

$

Not available

24

Toro 54-5060

FLOAT ARM

$

$

Not available

25

Toro 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

26

Toro 54-6130

Diaphragm-Main
(Superseded to 54-5090)

$

$

Not available

27

Toro 54-5100

DIAPHRAGM COVER

$78.99

$

Usually ships in 3-6 days

0

28

Toro 54-5110

SCREW W/ WASHER

$

$

Not available

29

Toro 54-5080

FLOAT SCREW

$

$

Not available

30

Toro 54-5070

FLOAT PIN

$

$

Not available

31

Toro 54-5050

FLOAT VALVE

$27.70

$

Usually ships in 3-6 days

0

32

Toro 54-5200

GRID

$25.99

$

Usually ships in 3-6 days

0

33

Toro 54-5190

ELEMENT

$16.99

$

In Stock, only 2 left!

0

34

Toro 54-5180

SCREEN

$

$

Not available

35

Toro 54-6870

COVER, CLEANER

$49.99

$

Usually ships in 3-6 days

0

36

Toro 54-5170

CHOKE LABEL

$

$

Not available

Toro 54-6860

Air Cleaner Complete (Incl. Ref. #32-36)

$

$

Not available
