51645 (TC 5000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

String Trimmer

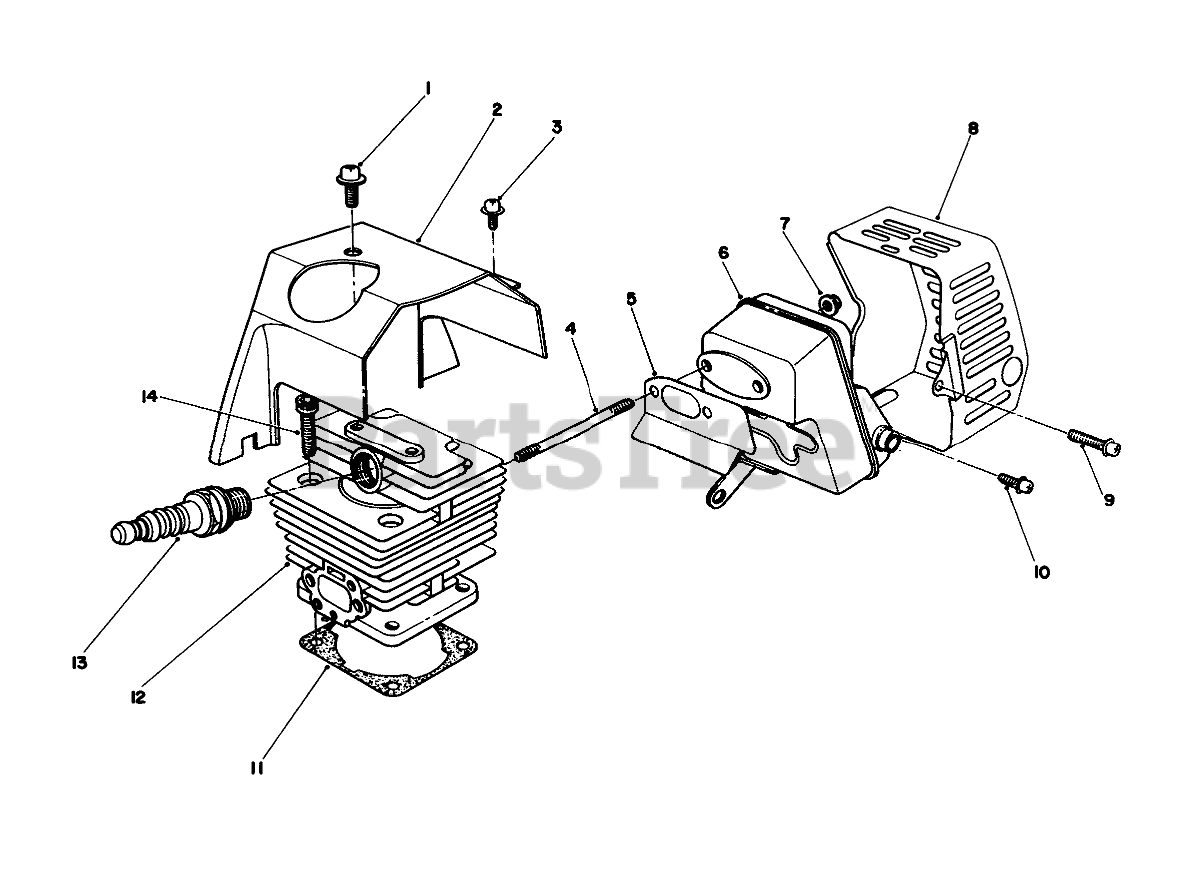

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 54-5850

Screw & Dishes

$

$

Not available

2

Toro 54-6590

COVER,CYLINDER

$

$

Not available

3

Toro 54-6150

Screw & Washer

$

$

Not available

4

Toro 54-6630

BOLT,STUD

$

$

Not available

5

Toro 54-6910

GASKET, MUFFLER

$

$

Not available

6

Toro 54-6900

MUFFLER

$

$

Not available

7

Toro 54-6170

NUT, FLANGE

$

$

Not available

8

Toro 54-6880

COVER, MUFFLER

$

$

Not available

9

Toro 54-6210

Screw & Washer

$

$

Not available

10

Toro 54-6890

SCREW & WASHER

$

$

Not available

11

Toro 54-6620

GASKET,CYLINDER

$

$

Not available

12

Toro 54-6610

Cylinder (Incl. Ref. #4)

$

$

Not available

13

Toro 45-0320

SPARK PLUG (NGK)

$

$

Not available

14

$

$

Not available

Toro 55-7400

Spark Arrestor Muffler

Note: Not illustrated

$

$

Not available
