51645 (TC 5000) - Lawn-Boy String Trimmer (SN: 008000001 - 008999999) (1988) TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

String Trimmer

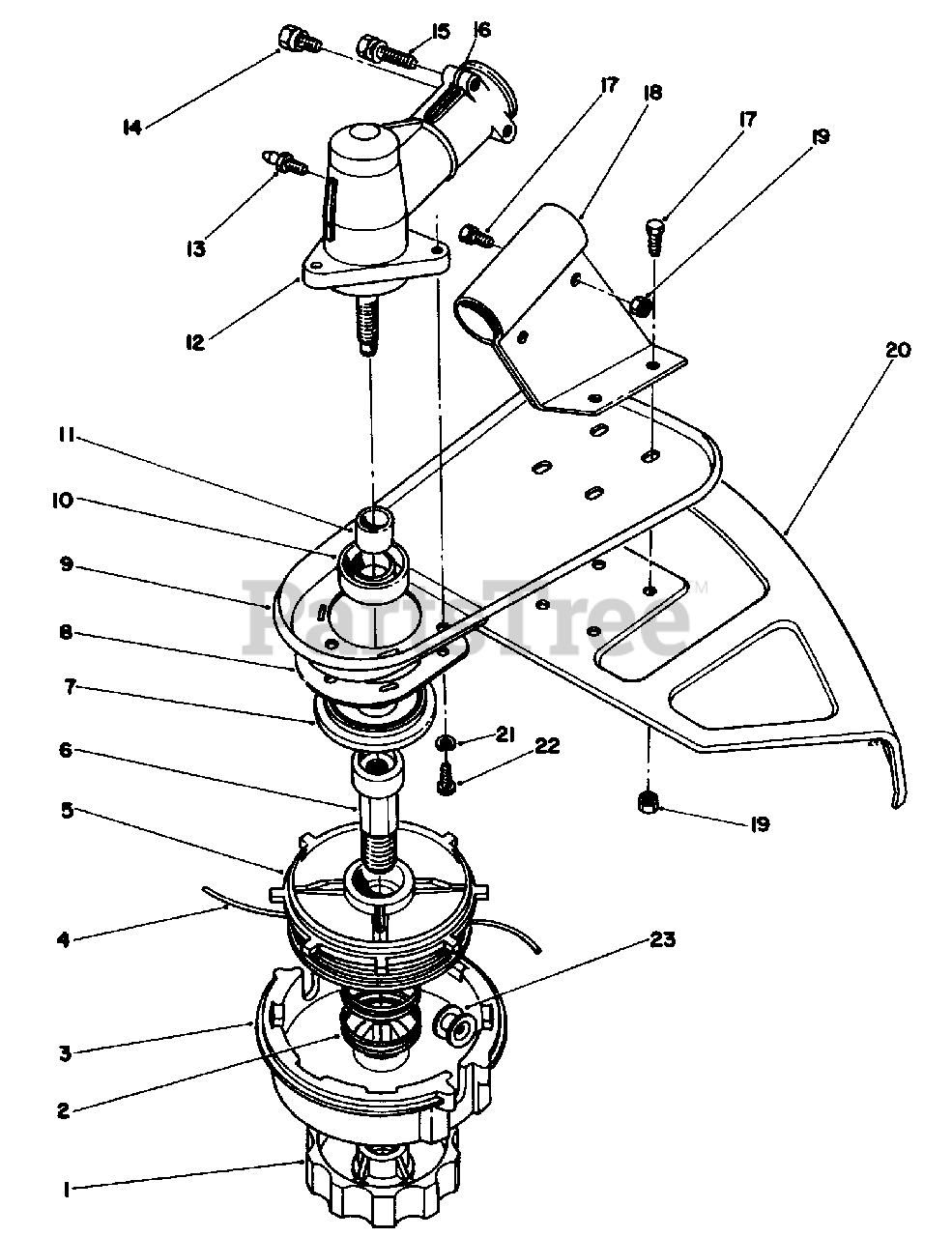

TRIMMER HEAD & GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 57-5580

LH KNOB(SERVICE ONLY)

$70.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 57-5620

SPRING (SERVICE)

$

$

Not available

3

Lawn-Boy 57-5600

SPOOL HSG (SERVICE ONLY

$125.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 43-5000

REPL LINE PKG

$

$

Not available

Lawn-Boy 46-2710

BULK LINE W/LABEL

Note: Not Illustrated

$

$

Not available

Lawn-Boy 4t-6820

.095 Line (1 Lb.-285 Ft.) (Optional)

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 46-2730

BULK LINE W/LABEL

Note: Not Illustrated

$

$

Not available

Lawn-Boy 52-5070

REPLACMNT LINE(20 FT)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2740

3 LB BULK LINE W/LABEL

Note: Not Illustrated

$

$

Not available

5

Lawn-Boy 57-5590

INNER SPOOL(SERV ONLY)

$

$

Not available

6

Lawn-Boy 57-5610

SHAFT (SERVICE ONLY)

$

$

Not available

7

Lawn-Boy 48-2080

DUST CAP F/W

$157.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 57-5540

GRASS WRAP GUARD

$

$

Not available

9

Lawn-Boy 47-2800

SHIELD SUPPORT R

$

$

Not available

10

Lawn-Boy 48-2090

OIL SEAL

$

$

Not available

11

Lawn-Boy 48-2100

SPLINED SLEEVE

$

$

Not available

12

Lawn-Boy 52-5720

Gear Box Assembly (Incl. Ref. #10, 11, & 13-15)

$518.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 53-7410

ZERK

$

$

Not available

14

Lawn-Boy 48-2150

HHMS SCREW

$8.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 48-2130

HHMS SCREW

$

$

Not available

16

Lawn-Boy 48-2140

WASHER

$

$

Not available

17

Lawn-Boy 32105-8

SCREW

$2.49

$

In Stock, only 1 left!

0

18

Lawn-Boy 53-7230

Bracket-Shield

$

$

Not available

19

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 52-5960

GRASS SHIELD-STEEL

$

$

Not available

21

Lawn-Boy 55-8050

LOCKWASHER

$

$

Not available

22

Lawn-Boy 57-5550

SCREW

$

$

Not available

23

Lawn-Boy 57-5630

EYELET(SERVICE)

$6.99

$

Usually ships in 3-6 days

0

Lawn-Boy 57-5670

Head Assembly (Incl. Ref. #1-6, 23)

Note: Not Illustrated

$

$

Not available
