51645 (TC 5000) - Lawn-Boy String Trimmer (SN: 008000001 - 008999999) (1988) SPARK ARRESTOR MUFFLER KIT NO. 55-7400 Parts Diagram

String Trimmer

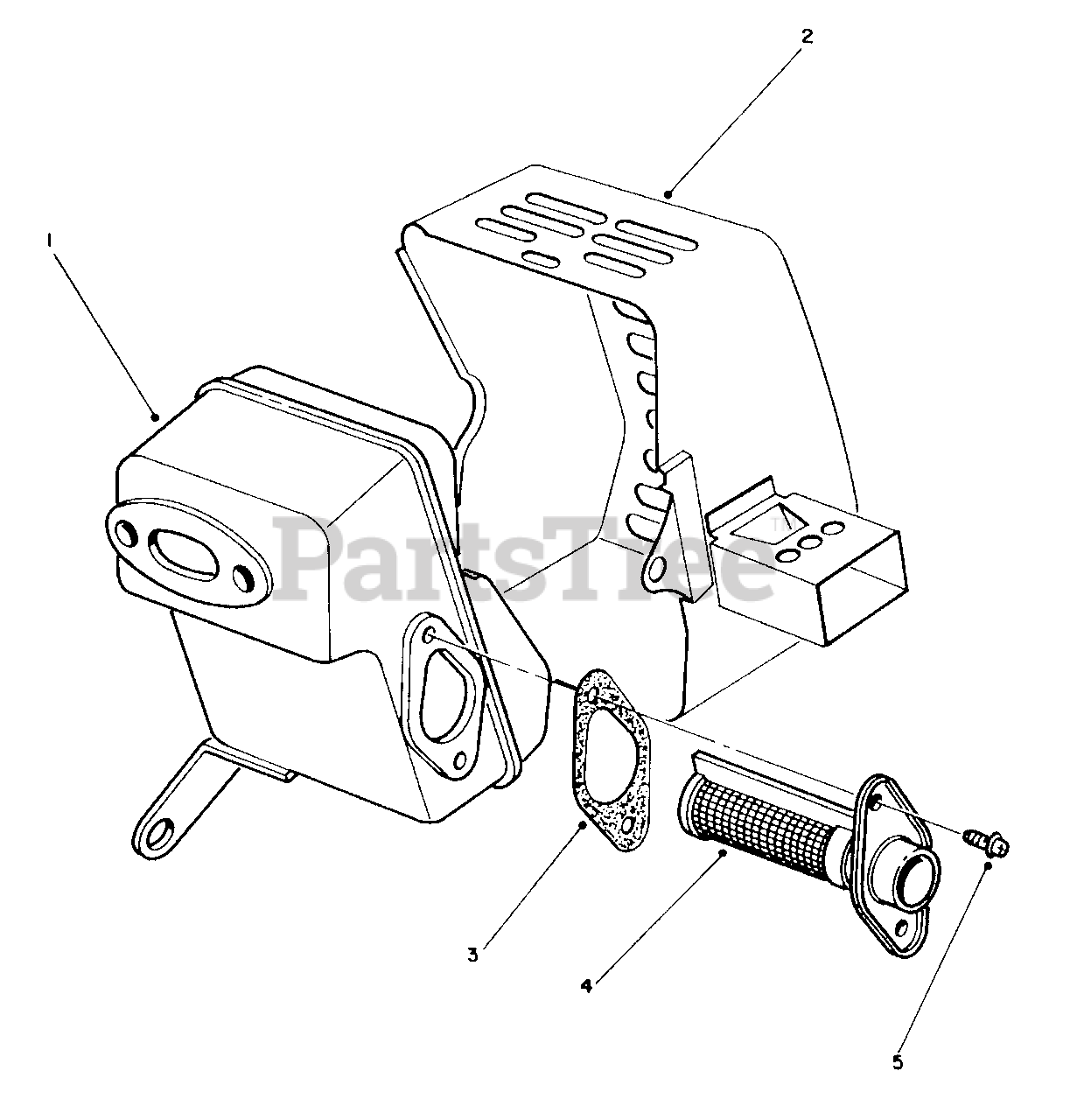

SPARK ARRESTOR MUFFLER KIT NO. 55-7400 Parts Diagram

  • Title
1

Lawn-Boy 61-9330

Muffler
(Superseded to 55-7400)

$

$

Not available

2

Lawn-Boy 61-9320

Cover-Muffler

$

$

Not available

3

$

$

Not available

4

Lawn-Boy 61-9290

Spark Arrestor

$

$

Not available

5

Lawn-Boy 61-9220

Screw & Washer

$

$

Not available
