51645 (TC 5000) - Lawn-Boy String Trimmer (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

String Trimmer

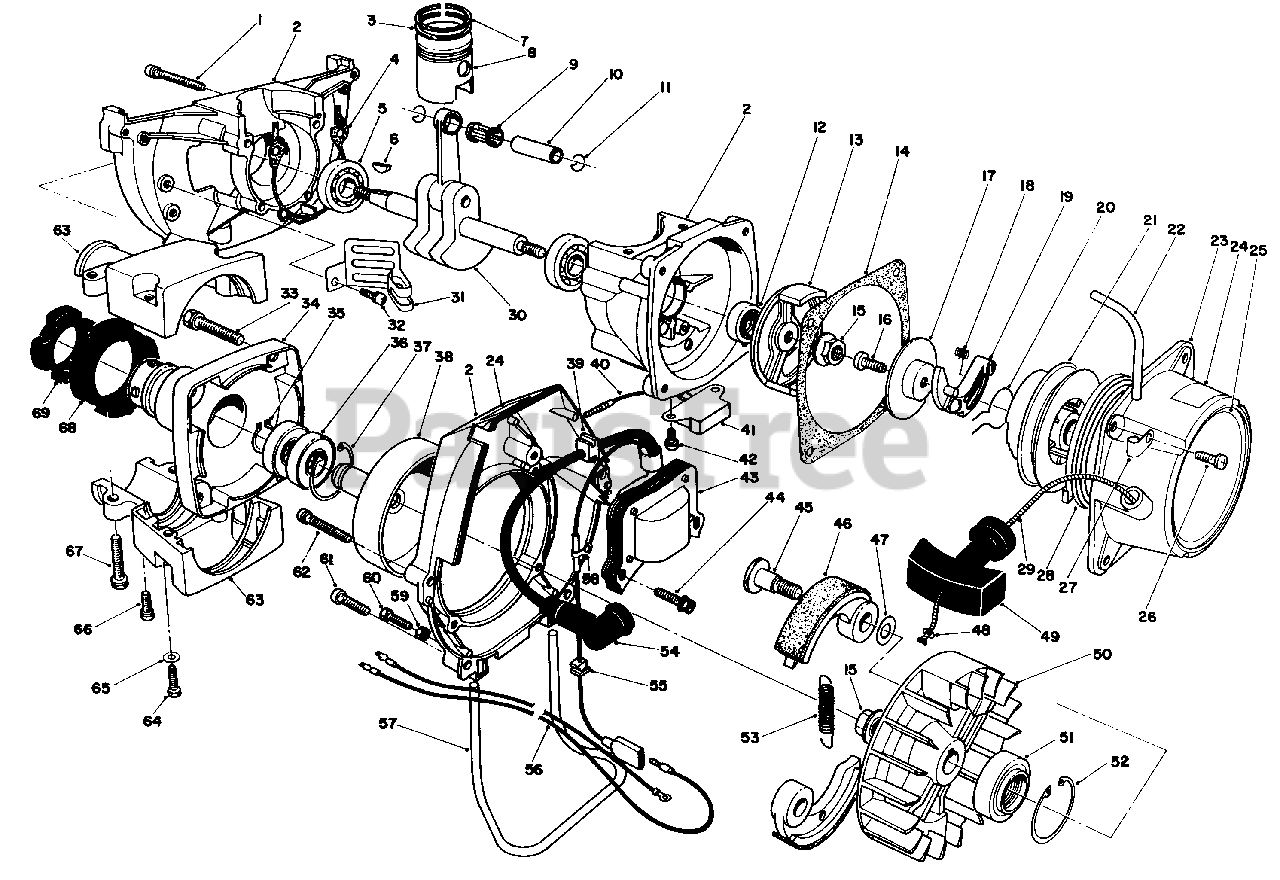

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 54-5760

SCREW & WASHER

$

$

Not available

2

Lawn-Boy 54-6540

Crankcase (Incl. Ref. #1, & 61)

$

$

Not available

3

Lawn-Boy 54-6650

RING,PISTON

$

$

Not available

4

Lawn-Boy 54-6580

GASKET,CASE

$

$

Not available

5

Lawn-Boy 54-5820

BALL BEARING

$49.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 544660

Key-Woodruff

$

$

Currently unavailable

7

Lawn-Boy 54-6640

RING,PISTON

$

$

Not available

8

Lawn-Boy 54-6660

Piston Set (Incl. Ref. #10)

$

$

Not available

9

Lawn-Boy 54-6690

BEARING, NEEDLE

$

$

Not available

10

Lawn-Boy 54-6670

PIN, PISTON

$

$

Not available

11

Lawn-Boy 54-6680

CLIP, PISTON PIN

$

$

Not available

12

Lawn-Boy 544380

Seal-Oil

$

$

Currently unavailable

13

Lawn-Boy 54-6290

PULLEY, STARTER

$

$

Not available

14

Lawn-Boy 54-6980

GASKET, STARTER

$

$

Not available

15

Lawn-Boy 544670

Nut-Conical

$

$

Currently unavailable

16

Lawn-Boy 54-6340

Screw
(Superseded to 60-8220)

$

$

Not available

17

Lawn-Boy 54-6350

PLATE, FRICTION

$

$

Not available

18

Lawn-Boy 54-6330

SPRING, RETURN

$

$

Not available

19

Lawn-Boy 54-6360

RATCHET

$

$

Not available

20

Lawn-Boy 54-6320

SPRING, FRICTION

$

$

Not available

21

Lawn-Boy 54-7000

REEL

$

$

Not available

22

Lawn-Boy 54-6800

Tube-Fuel

$

$

Not available

23

Lawn-Boy 54-6990

Recoil-Starter (Incl. Ref. #13, 16-21, 24, 25, 28, 29, & 49)

$

$

Not available

24

Lawn-Boy 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

25

Lawn-Boy 53-7380

TORO DECAL

$

$

Not available

26

Lawn-Boy 54-6260

Screw

$

$

Not available

27

Lawn-Boy 54-5340

Clamp

$

$

Not available

28

Lawn-Boy 54-7010

SPRING, SPIRAL

$

$

Not available

29

Lawn-Boy 54-7030

Rope-Starter
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 54-6700

Crankshaft (Incl. Ref. #6 & 9)

$

$

Not available

31

Lawn-Boy 54-6570

Clamp

$

$

Not available

32

Lawn-Boy 54-5790

Screw & Washer

$

$

Not available

33

Lawn-Boy 54-4440

Bolt

$

$

Not available

34

Lawn-Boy 54-6550

CASE, CLUTCH

$

$

Not available

35

Lawn-Boy 54-5690

SNAP RING

$

$

Not available

36

Lawn-Boy 54-5680

BALL BEARING

$

$

Not available

37

Lawn-Boy 54-5670

SNAP RING

$

$

Not available

38

Lawn-Boy 54-6920

DRUM, CLUTCH

$219.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 54-6000

Grommet
(Superseded to 95-1900)

$

$

Not available

40

Lawn-Boy 54-6770

WIRE, LEAD

$

$

Not available

41

Lawn-Boy 54-6750

Unit-Transistor (Incl. Ref. #40)

$

$

Not available

42

Lawn-Boy 54-6760

SCREW & WASHEROR

$

$

Not available

43

Lawn-Boy 54-6710

COIL, IGNITION

$

$

Not available

44

Lawn-Boy 544790

Bolt & Washer

$

$

Currently unavailable

45

Lawn-Boy 54-6930

BOLT,CLUTCH

$

$

Not available

46

Lawn-Boy 54-6960

Shoe-Clutch
(Superseded to 54-6940)

$

$

Not available

47

Lawn-Boy 54-6950

WASHER

$

$

Not available

48

Lawn-Boy 54-7020

WASHER

$

$

Not available

49

Lawn-Boy 54-5440

Knob-Starter
(Superseded to 56-8970)

$27.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 54-6780

FLYWHEEL

$

$

Not available

51

Lawn-Boy 54-5800

OIL SEAL

$25.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 54-4490

SNAPRING

$

$

Not available

53

Lawn-Boy 54-6970

SPRING

$

$

Not available

54

Lawn-Boy 544730

Cap-Plug

$

$

Currently unavailable

55

Lawn-Boy 54-6730

GROMMET

$

$

Not available

56

Lawn-Boy 54-6740

WIRE,LEAD

$

$

Not available

57

Lawn-Boy 53-7130

TANK GUARD

$

$

Not available

58

Lawn-Boy 54-6720

Clamp

$

$

Not available

59

Lawn-Boy 54-5840

NUT

$

$

Not available

60

Lawn-Boy 54-5830

BOLT

$

$

Not available

61

Lawn-Boy 54-5770

Screw

$

$

Not available

62

Lawn-Boy 54-4330

Screw

$

$

Not available

63

Lawn-Boy 54-6560

VV2DER

$

$

Not available

64

Lawn-Boy 54-6500

Bolt

$

$

Not available

65

Lawn-Boy 54-6490

Washer
(Superseded to 56-8820)

$

$

Not available

66

Lawn-Boy 54-5730

SCREW & WASHER

$

$

Not available

67

Lawn-Boy 54-5740

BOLT-WASHER/ENG

$

$

Not available

68

Lawn-Boy 54-6460

RUBBER, CUSHION (A)

$

$

Not available

69

Lawn-Boy 54-6470

RUBBER, CUSHION (B)

$

$

Not available

Lawn-Boy 54-6940

Clutch Assembly (Incl. Ref. #46 & 53)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 52-5770

Engine Assembly (Complete)

Note: Not Illustrated

$

$

Not available
