51645 (TC 5000) - Lawn-Boy String Trimmer (SN: 008000001 - 008999999) (1988) CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

String Trimmer

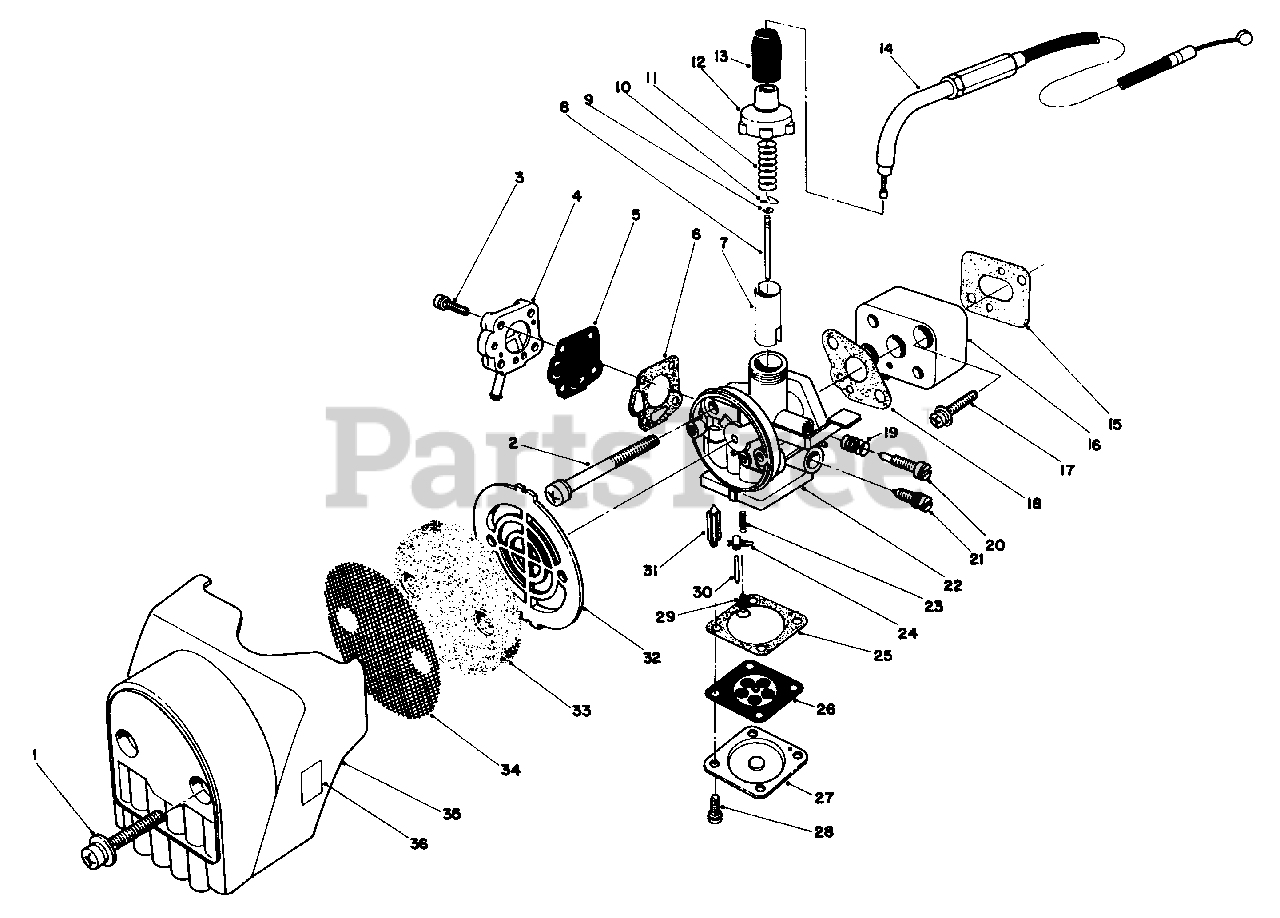

CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 54-5150

Screw
(Superseded to 60-8020)

$

$

Not available

2

Lawn-Boy 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 54-5040

SCREW W/ WASHER

$

$

Not available

4

Lawn-Boy 54-6120

Cover-Pump
(Superseded to 54-5030)

$

$

Not available

5

Lawn-Boy 54-6110

Diaphragm-Pump
(Superseded to 54-5020)

$

$

Not available

6

Lawn-Boy 54-5010

PUMP COVER GASKET

$

$

Not available

7

Lawn-Boy 54-6840

Valve-Throttle

$

$

Not available

8

Lawn-Boy 54-6830

Needle-Jet

$

$

Not available

9

Lawn-Boy 54-4930

Retainer

$

$

Not available

$

$

Not available

11

Lawn-Boy 54-6820

Spring-Throttle

$

$

Not available

$

$

Not available

13

Lawn-Boy 54-4900

AIR SEAL

$

$

Not available

14

Lawn-Boy 54-6850

WIRE, THROTTLE

$

$

Not available

15

Lawn-Boy 54-6790

GASKET, INSULATOR

$

$

Not available

16

Lawn-Boy 54-6040

INSULATOR

$

$

Not available

17

Lawn-Boy 54-6050

Screw & Washer
(Superseded to 60-7930)

$

$

Not available

18

Lawn-Boy 54-4850

CARB. GASKET

$

$

Not available

19

Lawn-Boy 54-4960

ADJ. SCREW SPRING

$

$

Not available

20

$

$

Not available

21

Lawn-Boy 54-4980

MAIN NEEDLE

$

$

Not available

22

Lawn-Boy 54-6810

Carburetor Assembly (Incl. Ref. #3-13, 19-21, & 23-31)

$715.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 54-4990

VALVE SPRING

$

$

Not available

24

Lawn-Boy 54-5060

FLOAT ARM

$

$

Not available

25

Lawn-Boy 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

26

Lawn-Boy 54-6130

Diaphragm-Main
(Superseded to 54-5090)

$

$

Not available

27

Lawn-Boy 54-5100

DIAPHRAGM COVER

$78.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 54-5110

SCREW W/ WASHER

$

$

Not available

29

Lawn-Boy 54-5080

FLOAT SCREW

$

$

Not available

30

Lawn-Boy 54-5070

FLOAT PIN

$

$

Not available

31

Lawn-Boy 54-5050

FLOAT VALVE

$27.70

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

33

$16.99

$

In Stock, only 2 left!

0

34

$

$

Not available

35

Lawn-Boy 54-6870

COVER, CLEANER

$49.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 54-5170

CHOKE LABEL

$

$

Not available

Lawn-Boy 54-6860

Air Cleaner Complete (Incl. Ref. #32-36)

Note: Not Illustrated

$

$

Not available
