51644 (TC 4000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) SPARK ARRESTOR MUFFLER KIT 52-5090 (OPTIONAL) Parts Diagram

String Trimmer

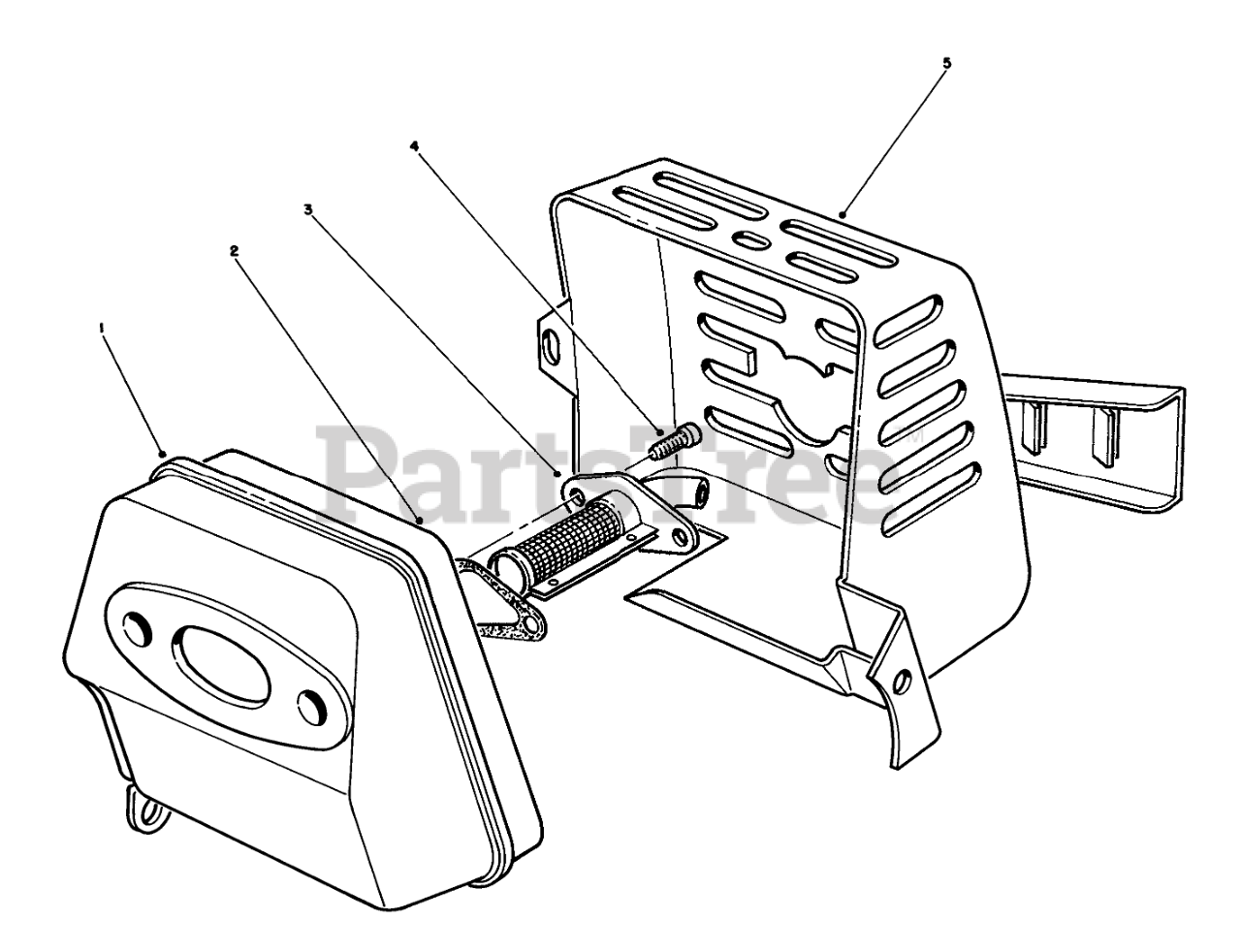

SPARK ARRESTOR MUFFLER KIT 52-5090 (OPTIONAL) Parts Diagram

  • Title
1

Toro 61-9230

Muffler

$

$

Not available

2

Toro 61-9270

Gasket

$

$

Not available

3

Toro 61-9240

Spark Arrestor

$

$

Not available

4

Toro 61-9220

Screw & Washer

$

$

Not available

5

Toro 61-9250

Cover-Muffler

$

$

Not available
