51644 (TC 4000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

String Trimmer

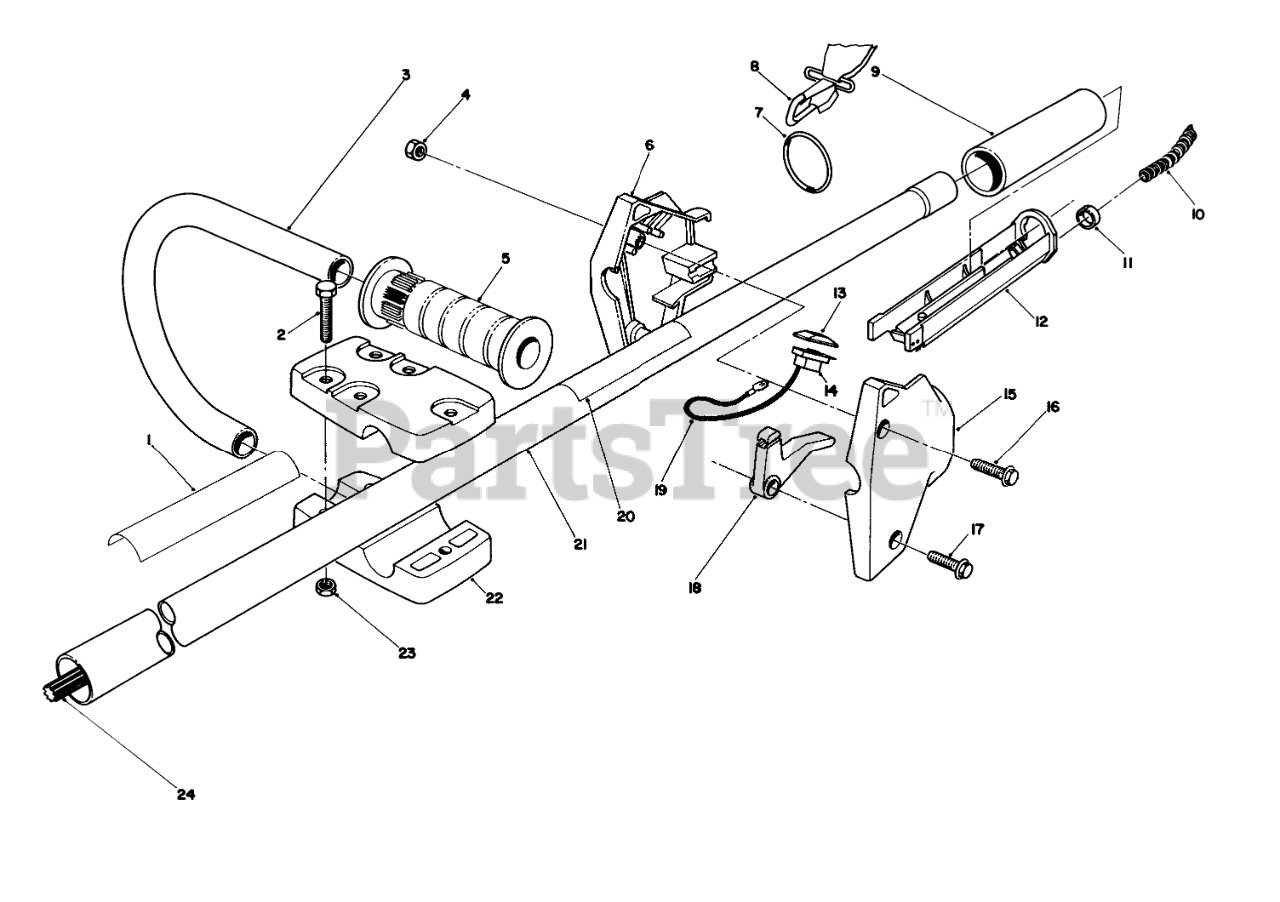

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-7170

Decal-TC 4000

$

$

Not available

2

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

3

Toro 44-7530

Tube-Handle

$

$

Not available

4

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

5

Toro 235-24

LH GRIP

$

$

Not available

6

Toro 53-7250

THROTTLE HSG.R H

$

$

Not available

7

Toro 44-7540

RING-HARNESS

$

$

Not available

8

Toro 46-2951

Harness

$

$

Not available

9

Toro 53-7120

GRIP - RUBBER

$

$

Not available

10

Toro 55-8412

Cover-Cable

$

$

Not available

11

Toro 2412-48

RING FITTING

$

$

Not available

12

Toro 53-7290

TROUGH 1"

$

$

Not available

13

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

14

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

15

Toro 53-7260

THROTTLE HSG. L H

$25.99

$

In Stock, only 1 left!

0

16

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

18

Toro 53-7270

THROTTLE LEVER

$

$

Not available

19

Toro 53-7370

WIRE ASM

$

$

Not available

20

Toro 46-9480

Decal
(Superseded to 82-6210)

$

$

Not available

21

Toro 53-7501

TUBE ASSEMBLY

$188.99

$

Usually ships in 3-6 days

0

22

Toro 53-7080

CLAMP

$

$

Not available

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 53-7210

SPLINED SHAFT

$

$

Not available
