51644 (TC 4000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

String Trimmer

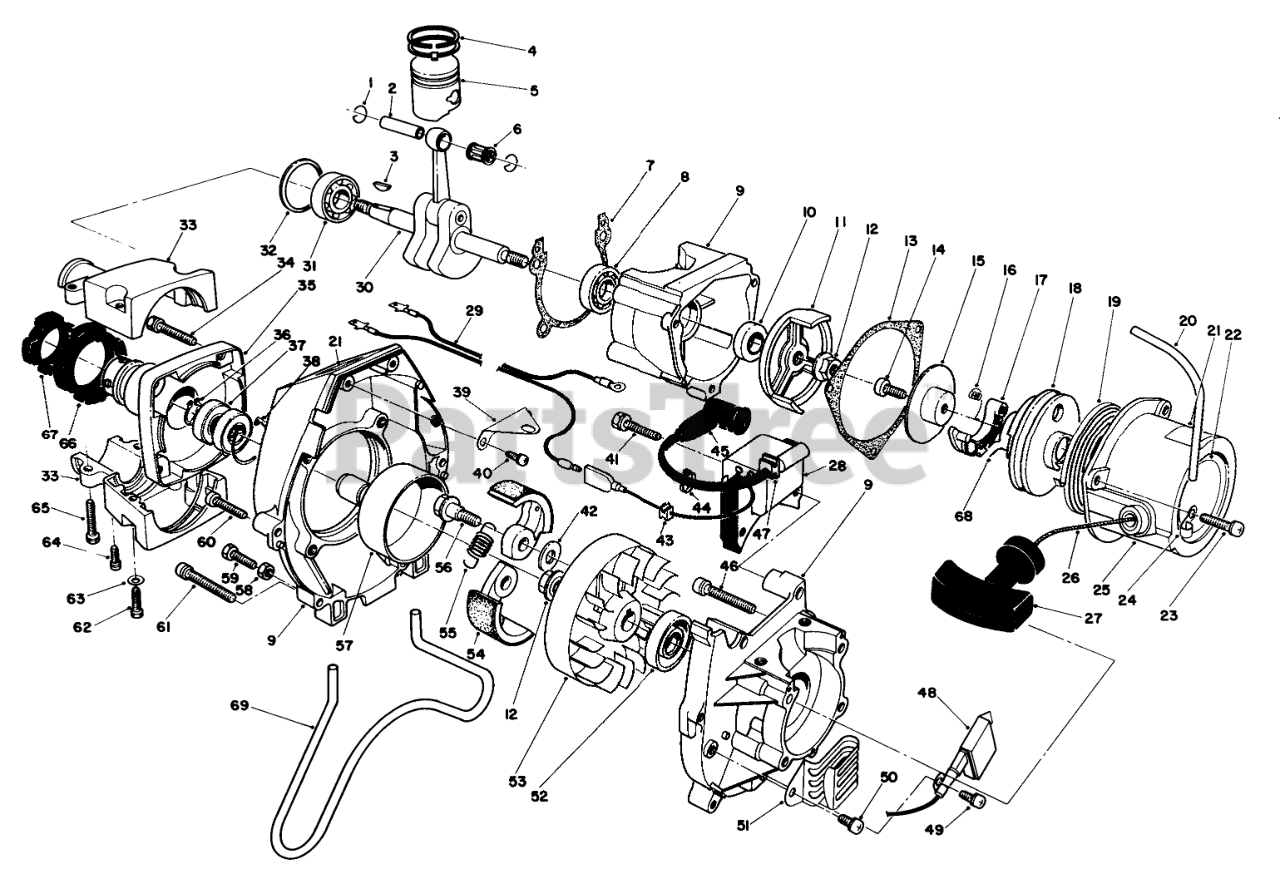

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

2

Toro 54-5910

PISTON PIN

$

$

Not available

3

Toro 54-4660

KEY

$

$

Not available

4

Toro 54-5940

PISTON RING

$

$

Not available

5

Toro 54-5900

Piston Set (Incl. Ref. #2)

$

$

Not available

6

Toro 54-5930

NEEDLE BEARING

$

$

Not available

7

Toro 54-5810

Gasket-Case

$

$

Not available

8

Toro 54-4360

BEARING

$

$

Not available

9

Toro 54-5660

Crankcase (Incl. Ref. #46 & 60)

$

$

Not available

10

Toro 54-4380

OIL SEAL

$24.99

$

Usually ships in 3-6 days

0

11

Toro 54-6290

PULLEY, STARTER

$

$

Not available

12

Toro 54-4670

NUT

$

$

Not available

13

Toro 54-6280

Gasket-Starter

$

$

Not available

14

Toro 54-6340

Screw
(Superseded to 60-8220)

$

$

Not available

15

Toro 54-6350

PLATE, FRICTION

$

$

Not available

16

Toro 54-6330

SPRING, RETURN

$

$

Not available

17

Toro 54-6360

RATCHET

$

$

Not available

18

Toro 54-6310

REEL

$157.99

$

Usually ships in 3-6 days

0

19

Toro 54-6300

SPRING, SPIRAL

$

$

Not available

20

Toro 54-6060

PIPE, OVERFLOW

$

$

Not available

21

Toro 53-7190

DECAL HOT

$

$

Not available

22

Toro 33-8340

Decal

$

$

Not available

23

Toro 54-6260

Screw

$

$

Not available

24

Toro 54-5340

Clamp

$

$

Not available

25

Toro 54-6270

Recoil Starter (Incl. Ref. #11, 14-19, 26, 27, & 68)

$

$

Not available

26

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

27

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$27.99

$

Usually ships in 3-6 days

0

28

Toro 54-5960

IGNITION COIL

$

$

Not available

29

Toro 54-6510

Lead-Wire

$

$

Not available

30

Toro 54-5950

Crankshaft (Incl. Ref. #3, & 6)

$

$

Not available

31

Toro 54-5820

BALL BEARING

$49.99

$

Usually ships in 3-6 days

0

32

Toro 54-4490

SNAPRING

$

$

Not available

33

Toro 54-6480

Holder

$

$

Not available

34

Toro 54-5720

Bolt/Washer

$

$

Not available

35

Toro 54-6450

Case-Clutch

$

$

Not available

36

Toro 54-5690

SNAP RING

$

$

Not available

37

Toro 54-5680

BALL BEARING

$

$

Not available

38

Toro 54-5670

SNAP RING

$

$

Not available

39

Toro 54-5750

Bracket

$

$

Not available

40

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

41

Toro 54-4790

BOLT AND WASHER

$5.99

$

Usually ships in 3-6 days

0

42

Toro 54-5310

Washer
(Superseded to 56-6070)

$

$

Not available

43

Toro 54-6010

Grommet
(Superseded to 54-6730)

$

$

Not available

44

Toro 54-5990

BAND

$

$

Not available

45

Toro 54-4730

CAP-PLUG

$

$

Not available

46

Toro 54-5760

SCREW & WASHER

$

$

Not available

47

Toro 54-6000

Grommet
(Superseded to 95-1900)

$

$

Not available

48

Toro 54-5980

UNIT,TRANSISTOR

$

$

Not available

49

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

50

Toro 54-5790

Screw & Washer

$

$

Not available

51

Toro 54-5780

Clamp

$

$

Not available

52

Toro 54-5800

OIL SEAL

$25.99

$

Usually ships in 3-6 days

0

53

Toro 54-5970

Flywheel

$

$

Not available

54

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

55

Toro 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

56

Toro 54-5290

CLUTCH BOLT

$

$

Not available

57

Toro 54-6530

Drum-Clutch

$

$

Not available

58

Toro 54-5840

NUT

$

$

Not available

59

Toro 54-5830

BOLT

$

$

Not available

60

Toro 54-5770

Screw

$

$

Not available

61

Toro 54-4330

Screw

$

$

Not available

62

Toro 54-6500

Bolt

$

$

Not available

63

Toro 54-6490

Washer
(Superseded to 56-8820)

$

$

Not available

64

Toro 54-5730

SCREW & WASHER

$

$

Not available

65

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

66

Toro 54-6460

RUBBER, CUSHION (A)

$

$

Not available

67

Toro 54-6470

RUBBER, CUSHION (B)

$

$

Not available

68

Toro 54-6320

SPRING, FRICTION

$

$

Not available

69

Toro 53-7130

TANK GUARD

$

$

Not available

Toro 54-6240

Clutch Assembly (Incl. Ref. #54 & 55)
(Superseded to 77-1830)

Note: Not illustrated

$

$

Not available
