51644 (TC 4000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) CYLINDER & MUFFLER ASSEMBLY Parts Diagram

String Trimmer

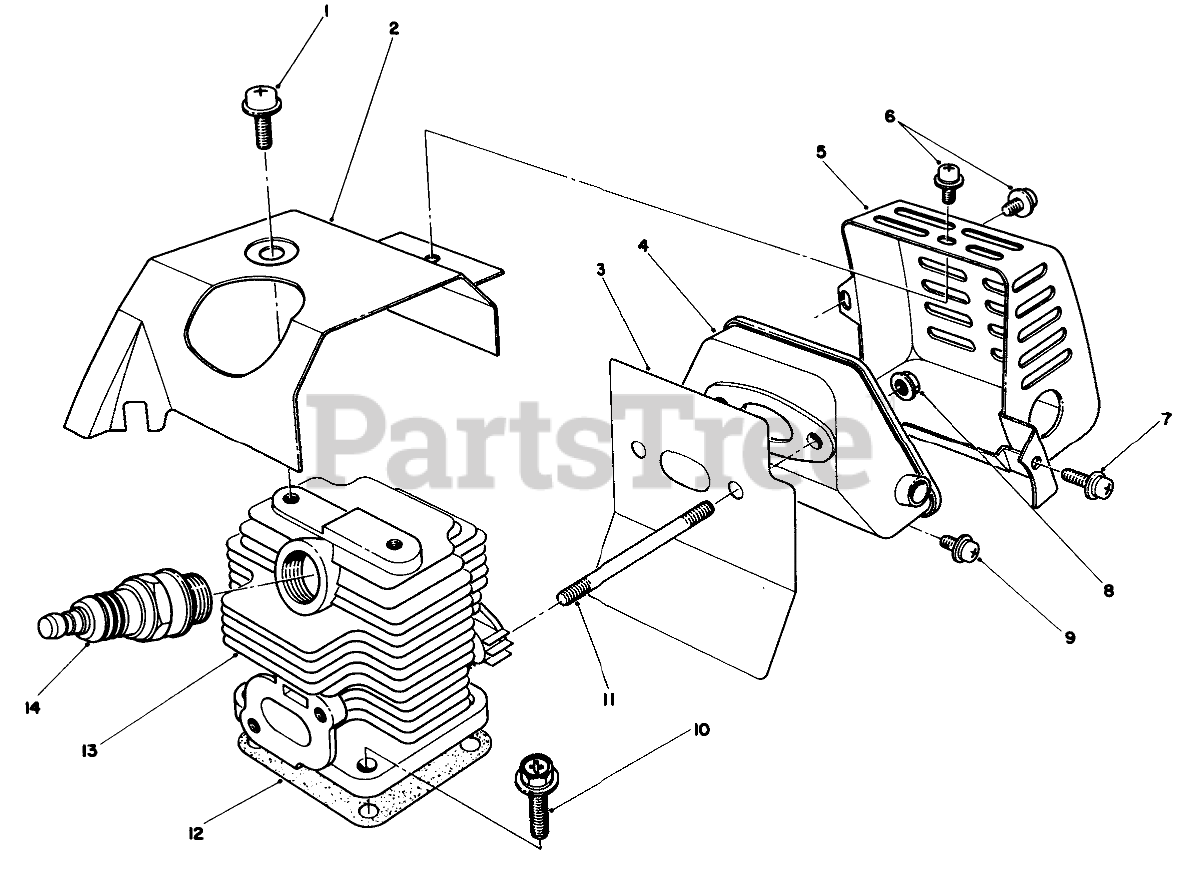

CYLINDER & MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 54-5850

Screw & Dishes

$

$

Not available

2

Toro 54-5860

CYLINDER COVER

$

$

Not available

3

Toro 54-6190

Gasket-Muffler

$

$

Not available

4

Toro 54-6180

MUFFLER

$

$

Not available

5

Toro 54-6160

COVER, MUFFLER

$

$

Not available

6

Toro 54-6150

Screw & Washer

$

$

Not available

7

Toro 54-6210

Screw & Washer

$

$

Not available

8

Toro 54-6170

NUT, FLANGE

$

$

Not available

9

Toro 54-6200

Screw & Washer

$

$

Not available

10

Toro 54-4790

BOLT AND WASHER

$5.99

$

Usually ships in 3-6 days

0

11

Toro 54-5880

Bolt-Stud

$

$

Not available

12

Toro 54-5890

CYLINDER GASKET

$

$

Not available

13

Toro 54-5870

Cylinder (Incl. Ref. #11)

$

$

Not available

14

Toro 45-0320

SPARK PLUG (NGK)

$3.49

$

Usually ships in 3-6 days

0

Toro 52-5090

Spark Arrestor Muffler (Optional)

Note: Not illustrated

$

$

Not available
