51642 (TC 2000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) RECOIL & CRANKCASE ASSEMBLY Parts Diagram

String Trimmer

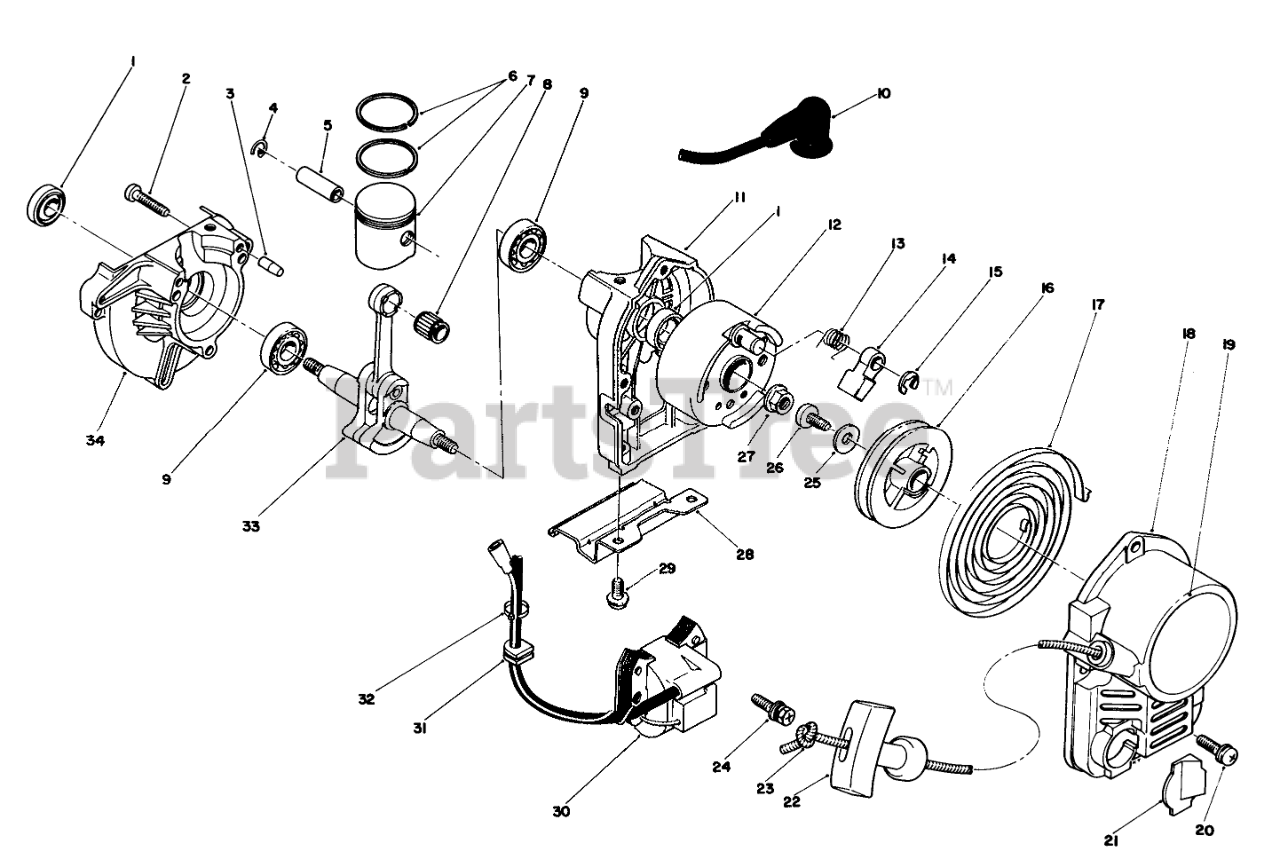

RECOIL & CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4380

OIL SEAL

$24.99

$

Usually ships in 3-6 days

0

2

Toro 54-4330

Screw

$

$

Not available

3

Toro 60-7590

PIN

$

$

Not available

4

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

5

Toro 60-7760

Pin-Piston

$

$

Not available

6

Toro 60-7740

TOP RING

$15.08

$

In Stock, only 1 left!

0

7

Toro 60-7750

Piston

$

$

Not available

8

Toro 54-5930

NEEDLE BEARING

$

$

Not available

9

Toro 54-4360

BEARING

$

$

Not available

10

Toro 54-4730

CAP-PLUG

$

$

Not available

11

Toro 60-7600

STARTER CASE

$

$

Not available

12

Toro 60-7800

Rotor

$

$

Not available

13

Toro 60-7810

Spring-Return

$

$

Not available

14

Toro 60-7820

RATCHET

$

$

Not available

15

Toro 60-7830

SNAP RING

$

$

Not available

16

Toro 60-8230

REEL

$

$

Not available

17

Toro 54-5420

SPRING

$

$

Not available

18

Toro 60-8240

Case-Starter

$

$

Not available

19

Toro 57-5570

RECOIL COVER DECAL

$

$

Not available

20

Toro 60-7930

SCREW & WASHER

$

$

Not available

21

Toro 60-8250

Grommet

$

$

Not available

22

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$27.99

$

Usually ships in 3-6 days

0

23

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

24

Toro 60-7870

Bolt & Washer
(Superseded to 60-7610)

$

$

Not available

25

Toro 54-5400

Washer

$

$

Not available

26

Toro 60-8220

SCREW

$

$

Not available

27

Toro 60-7770

NUT

$

$

Not available

28

Toro 60-7660

STAND

$

$

Not available

29

Toro 60-7620

SCREW & WASHER

$

$

Not available

30

Toro 60-7860

IGNITION COIL

$

$

Not available

31

Toro 60-7840

GROMMET

$

$

Not available

32

Toro 54-5990

BAND

$

$

Not available

33

Toro 60-7790

CRANKSHAFT ASM

$

$

Not available

34

Toro 60-7650

DRIVE CASE

$

$

Not available

Toro 60-8200

Recoil Starter Assembly (Incl. Ref. #15-17, 19-21, 23 & 24)

$

$

Not available

Toro 57-5410

Engine (Complete)

$

$

Not available
