51642 (TC 2000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

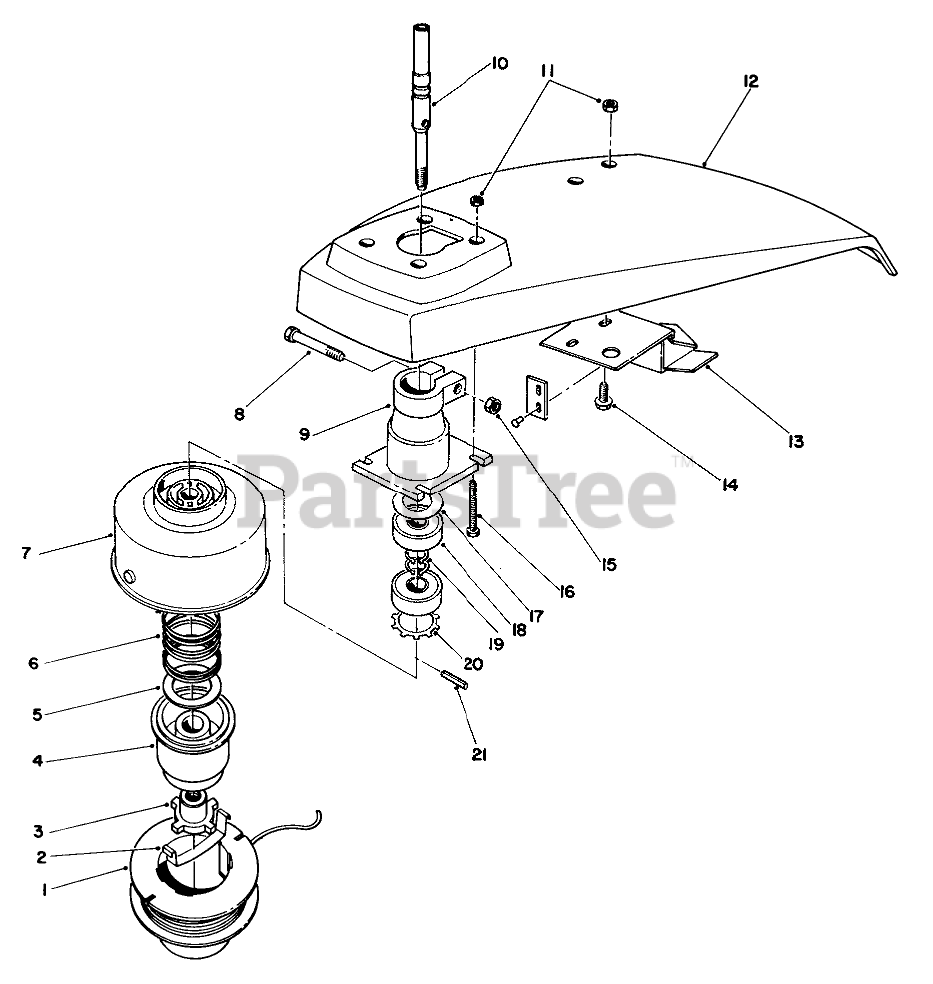

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 43-4990

Empty Spool

$

$

Not available

2

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

3

Toro 42-6050

DRIVER

$27.99

$

Usually ships in 3-6 days

0

4

Toro 33-6230

SPOOL CORE

$

$

Not available

5

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

6

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

7

Toro 42-5950

DRUM/EYELET

$69.99

$

Usually ships in 3-6 days

0

8

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

9

Toro 42-5931

Housing-Bearing (Incl. Ref. #10, 17-21)

$

$

Not available

10

Shaft-Power

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 52-5730

GRASS SHIELD-PLASTIC

$

$

Not available

13

Toro 42-5920

BRKT/KNIFE BLD ASM

$

$

Not available

14

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

17

Washer

$

$

Not available

18

Ball Bearing

$

$

Not available

19

Snap Ring

$

$

Not available

20

Grip-Spring

$

$

Not available

21

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

Toro 43-5000

REPL LINE PKG

Note: Not illustrated

$

$

Not available

Toro 46-2710

BULK LINE W/LABEL

Note: Not illustrated

$

$

Not available
