51642 (TC 2000) - Toro String Trimmer (SN: 006000001 - 006999999) (1986) CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

String Trimmer

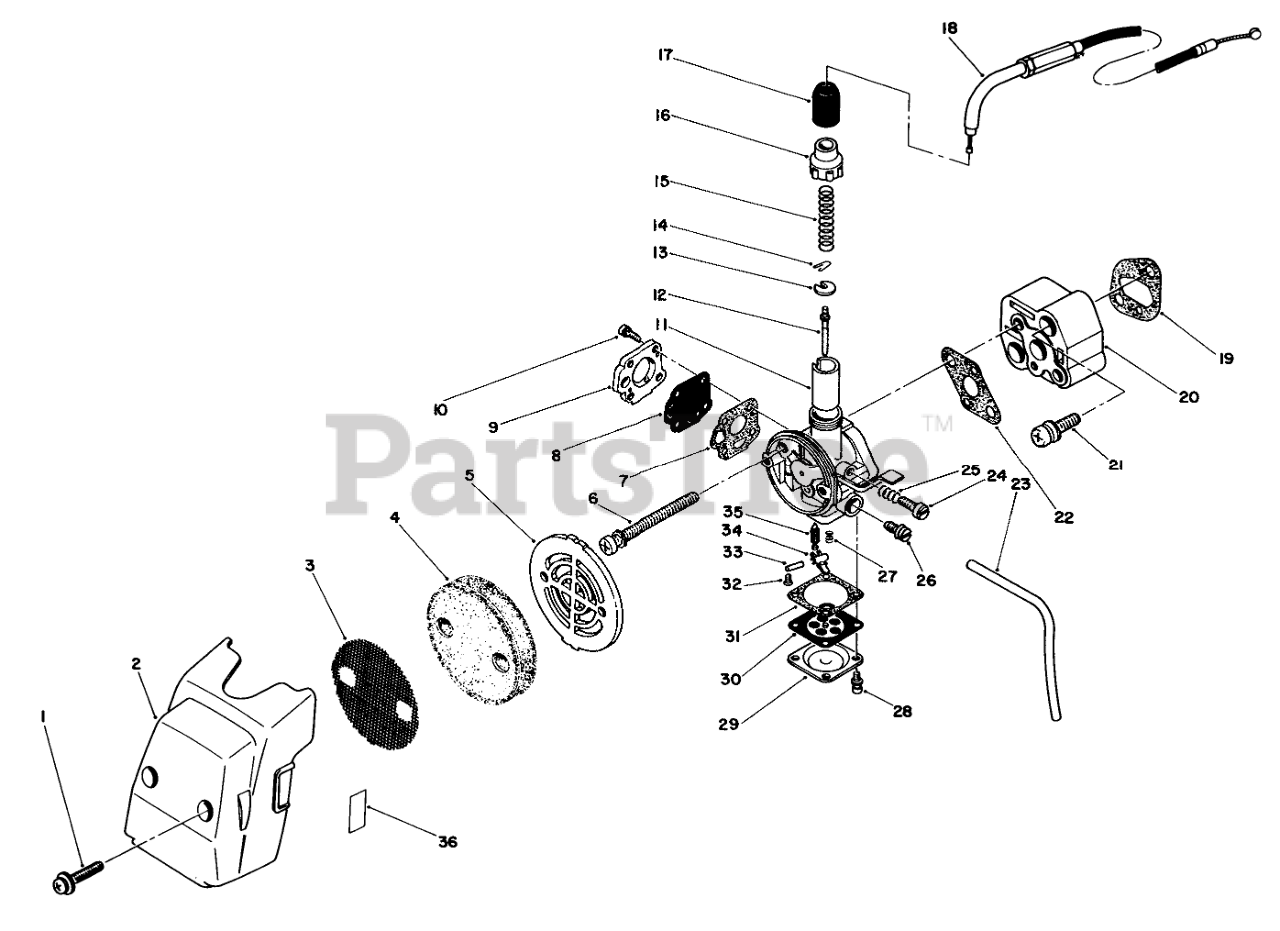

CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 60-8020

SCREW & WASHER

$

$

Not available

2

Toro 60-8030

CLEANER CASE

$

$

Not available

3

Toro 54-5180

SCREEN

$

$

Not available

4

Toro 60-8040

ELEMENT
(Superseded to 54-5190)

$16.99

$

In Stock, only 2 left!

0

5

Toro 54-5200

GRID

$25.99

$

Usually ships in 3-6 days

0

Toro 60-8010

Air Cleaner Assembly (Incl. Ref. #2-5 & 36)

Note: Not illustrated

$

$

Not available

6

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

7

Toro 54-5010

PUMP COVER GASKET

$

$

Not available

8

Toro 54-5020

PUMP DIAPHRAGM

$

$

Not available

9

Toro 60-7980

Pump Cover Assembly

$

$

Not available

10

Toro 54-5040

SCREW W/ WASHER

$

$

Not available

11

Toro 60-7970

THROTTLE VALVE

$94.99

$

Usually ships in 3-6 days

0

12

Toro 60-7960

NEEDLE JET

$

$

Not available

13

Toro 60-7950

SPRING RETAINER

$

$

Not available

14

Toro 54-5120

NEEDLE CUP

$

$

Not available

15

Toro 54-4920

SPRING

$

$

Not available

16

Toro 54-4910

CAP

$

$

Not available

17

Toro 54-4900

AIR SEAL

$

$

Not available

18

Toro 60-8000

THROTTLE WIRE

$

$

Not available

19

Toro 60-7920

INSULATOR GASKET

$

$

Not available

20

Toro 60-7910

INSULATOR

$

$

Not available

21

Toro 60-7930

SCREW & WASHER

$

$

Not available

22

Toro 60-7940

CARB GASKET

$

$

Not available

23

Toro 56-9000

FUEL TUBE

$

$

Not available

24

Toro 54-4970

Screw-Adjusting
(Superseded to 54-6090)

$

$

Not available

25

Toro 54-4960

ADJ. SCREW SPRING

$

$

Not available

26

Toro 54-6100

Needle-Main Jet
(Superseded to 56-8600)

$77.99

$

Usually ships in 3-6 days

0

27

Toro 54-4990

VALVE SPRING

$

$

Not available

28

Toro 54-5110

SCREW W/ WASHER

$

$

Not available

29

Toro 54-5100

DIAPHRAGM COVER

$78.99

$

Usually ships in 3-6 days

0

30

Toro 54-5090

MAIN DIAPHRAGM

$

$

Not available

31

Toro 54-5000

DIAPHRAGM GASKET

$11.99

$

In Stock, Qty 9

0

32

Toro 54-5080

FLOAT SCREW

$

$

Not available

33

Toro 54-5070

FLOAT PIN

$

$

Not available

34

Toro 54-5060

FLOAT ARM

$

$

Not available

35

Toro 54-5050

FLOAT VALVE

$27.70

$

Usually ships in 3-6 days

0

36

Toro 54-5170

CHOKE LABEL

$

$

Not available

Toro 60-7990

Carburetor Assembly (Incl. Ref. #7-17 & 24-35)

Note: Not illustrated

$

$

Not available
