51641 (TC 1000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) FUEL TANK ASSEMBLY Parts Diagram

String Trimmer

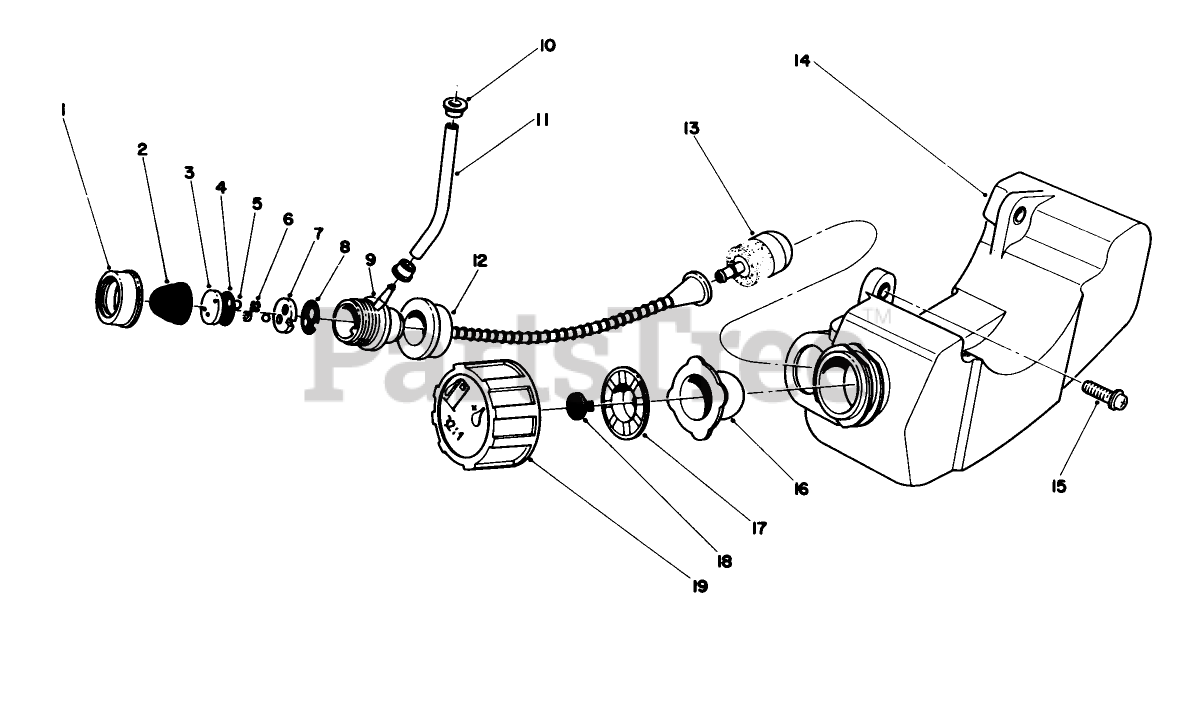

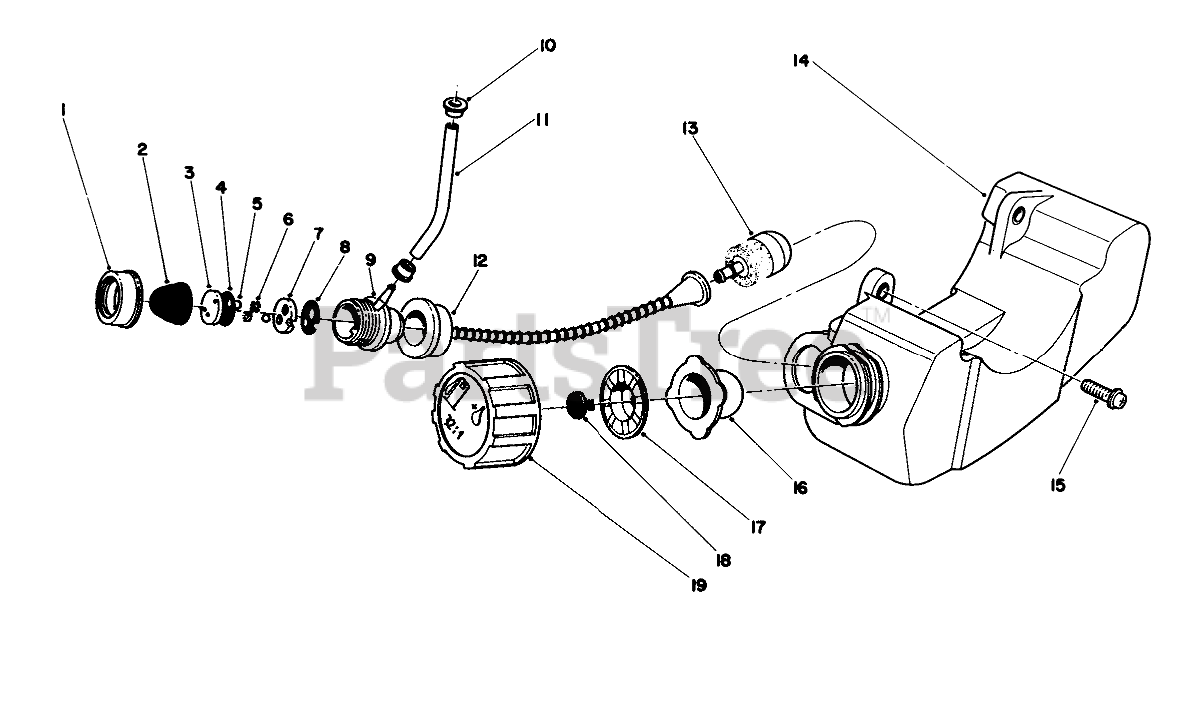

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 54-5510

PUMP CAP

$

$

Not available

2

Toro 54-5520

CAP

$13.99

$

Usually ships in 3-6 days

0

3

Toro 54-5530

SEAT VALVE

$

$

Not available

4

Toro 54-5460

GASKET

$

$

Not available

5

Toro 54-5480

BALL

$6.49

$

In Stock, only 4 left!

0

6

Toro 54-5470

SPONGE

$

$

Not available

7

Toro 54-5490

SEAT VALVE

$

$

Not available

8

Toro 54-5500

GASKET

$5.99

$

Usually ships in 3-6 days

0

9

Toro 54-5570

Pump-Primer (Incl. Ref. #1-8)

$108.99

$

Usually ships in 3-6 days

0

10

Toro 54-5550

CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro 54-5560

FUEL TUBE

$

$

Not available

12

Toro 54-5580

SUCTION HOSE

$

$

Not available

13

Toro 54-5540

FUEL FILTER

$36.99

$

In Stock, only 1 left!

0

14

Toro 54-5640

Fuel Tank Assembly (Incl.Ref. #1-9, 12, 13, 16-19)

$

$

Not available

15

Toro 54-5650

Screw

$

$

Not available

16

Toro 54-5630

GASKET - PACKING

$11.99

$

Usually ships in 3-6 days

0

17

Toro 54-5620

HOLDER

$14.99

$

In Stock, only 1 left!

0

18

Toro 54-5610

BREATHER VALVE

$18.99

$

Usually ships in 3-6 days

0

19

Toro 54-5600

TANK CAP

$42.99

$

Usually ships in 3-6 days

0

Toro 54-5590

Tank Cap Assembly (Incl. Ref. #16-19)

$55.99

$

Usually ships in 3-6 days

0
