51641 (TC 1000) - Toro String Trimmer (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

String Trimmer

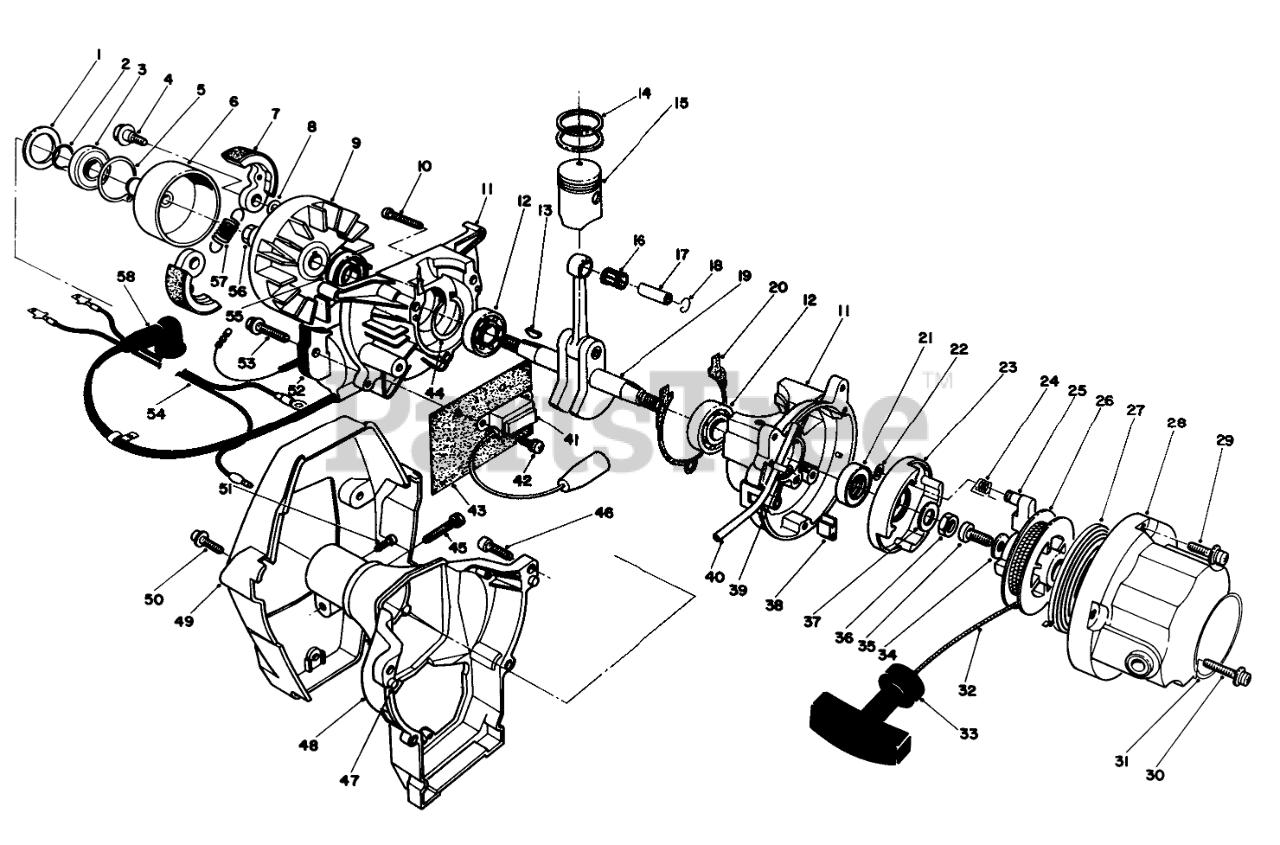

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 54-4460

Washer

$

$

Not available

2

Toro 54-4470

SNAPRING

$

$

Not available

3

Toro 54-4480

BEARING

$

$

Not available

4

Toro 54-5290

CLUTCH BOLT

$10.99

$

Usually ships in 3-6 days

0

5

Toro 54-4490

SNAPRING

$

$

Not available

6

Toro 54-5280

Drum-Clutch

$

$

Not available

7

Toro 54-5260

Shoe-Clutch

$

$

Not available

8

Toro 54-5310

Washer
(Superseded to 56-6070)

$

$

Not available

9

Toro 54-4750

Flywheel

$

$

Not available

10

Toro 54-4330

Screw

$

$

Not available

11

Toro 54-4500

Crankcase Assembly (Incl. Ref. #10)

$

$

Not available

12

Toro 54-4360

BEARING

$

$

Not available

13

Toro 54-4660

KEY

$

$

Not available

14

Toro 54-4630

PISTON RING

$

$

Not available

15

Toro 54-4650

PISTON

$

$

Not available

16

Toro 54-4700

NEEDLE BEARING

$

$

Not available

17

Toro 54-4690

Pin-Piston

$

$

Not available

18

Toro 54-4640

Clip

$

$

Not available

19

Toro 54-4680

Crankshaft

$

$

Not available

20

Toro 54-4370

Gasket-Crankcase

$

$

Not available

21

Toro 54-4380

OIL SEAL

$21.99

$

Usually ships in 3-6 days

0

22

Toro 54-5350

E-Ring

$

$

Not available

23

Toro 54-5360

STARTER PULLEY

$

$

Not available

24

Toro 54-5370

RETURN SPRING

$

$

Not available

25

Toro 54-5380

RATCHET

$

$

Not available

26

Toro 54-5410

REEL

$

$

Not available

27

Toro 54-5420

SPRING

$

$

Not available

28

Toro 54-5430

Case-Starter

$

$

Not available

29

Toro 54-5330

SCREW W/WASHER

$

$

Not available

30

Toro 54-4520

SCREW W/ WASHER

$

$

Not available

31

Toro 33-8340

Decal

$

$

Not available

32

Toro 54-5450

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

33

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

34

Toro 54-5400

Washer

$

$

Not available

35

Toro 54-5390

Screw

$

$

Not available

36

Toro 54-4720

NUT

$

$

Not available

37

Toro 54-4710

Washer

$

$

Not available

38

Toro 54-4390

Plug

$

$

Not available

39

Toro 54-5340

Clamp

$

$

Not available

40

Toro 54-4880

Tube-Fuel

$

$

Not available

41

Toro 54-4770

TRANSISTOR UNIT

$

$

Not available

42

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

43

Toro 54-4760

Plate

$

$

Not available

44

Toro 54-4350

Snap Ring

$

$

Not available

45

Toro 54-4440

Bolt

$

$

Not available

46

Toro 54-4430

Screw

$

$

Not available

47

Toro 54-4510

Knock Pin

$

$

Not available

48

Toro 54-4450

Case-Clutch

$

$

Not available

49

Toro 54-4410

Cover-Fan

$

$

Not available

50

Toro 54-4400

Screw

$

$

Not available

51

Toro 54-4420

Screw

$

$

Not available

52

Toro 54-4780

Coil

$

$

Not available

53

Toro 54-4790

BOLT AND WASHER

$5.49

$

Usually ships in 3-6 days

0

54

Toro 54-4800

LEAD WIRE

$

$

Not available

55

Toro 54-4340

Oil Seal

$

$

Not available

56

Toro 54-4670

NUT

$

$

Not available

57

Toro 54-5270

Spring

$

$

Not available

58

Toro 54-4730

CAP-PLUG

$

$

Not available

Toro 54-5300

Clutch-Assembly (Incl. Ref. #7 & 57)

$

$

Not available

Toro 54-5320

Recoil Starter Assembly (Incl. Ref. #22-28 & 32-35)

$206.99

$

Usually ships in 3-6 days

0

Toro 52-5740

Engine Complete

$

$

Not available
