51637 (TC 2010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) CARBURETOR ASSEMBLY (SERIAL NOS. 2003408 & UP) Parts Diagram

String Trimmer

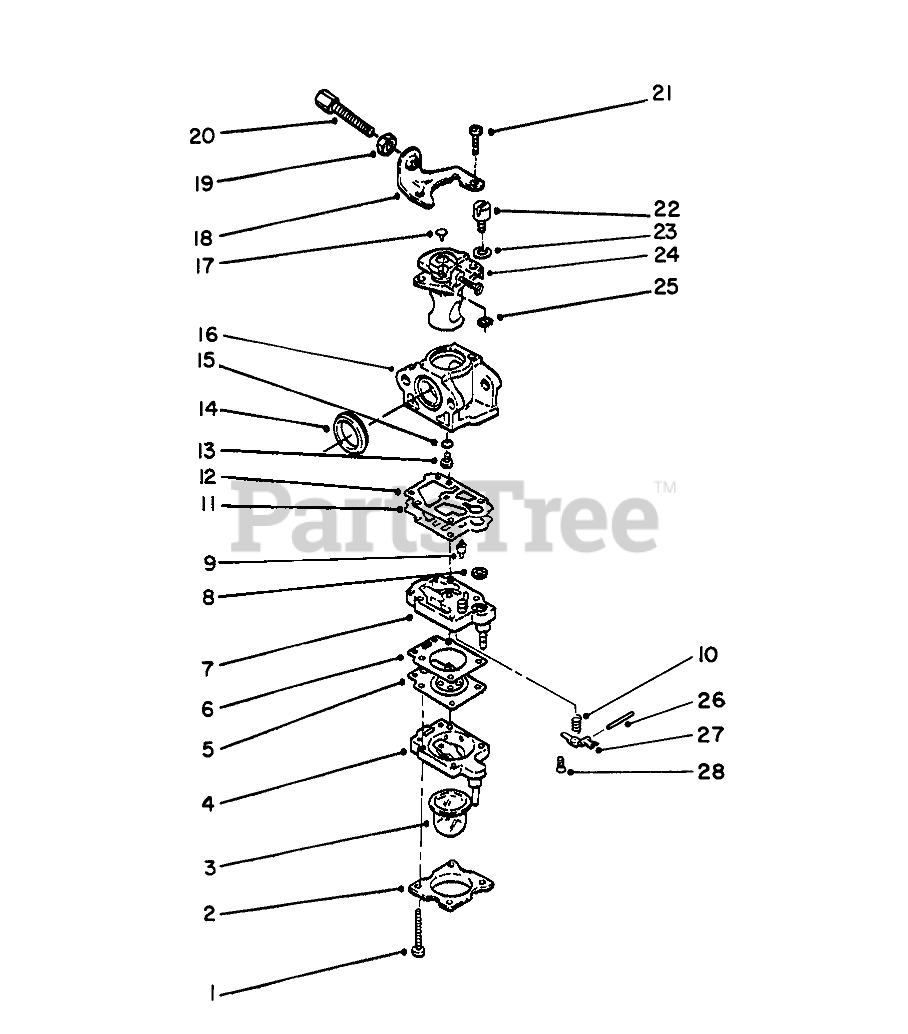

CARBURETOR ASSEMBLY (SERIAL NOS. 2003408 & UP) Parts Diagram

  • Title

1

Toro 88-0330

Screw

$

$

Not available

2

Toro 88-0320

Cover-Primer

$

$

Not available

3

Toro 77-1670

PRIMER PUMP

$23.99

$

In Stock, only 1 left!

0

4

Toro 88-0310

Body-Primer

$

$

Not available

5

Toro 77-1650

DIAPHRAGM

$

$

Not available

6

Toro 88-0300

DIAPHRAGM GASKET

$

$

Not available

7

Toro 88-0290

Body Assembly-Fuel Pump (Incl. Ref. #8)

$

$

Not available

8

Toro 77-1620

SCREEN

$

$

Not available

9

Toro 88-0340

NEEDLE VALVE

$

$

Not available

10

Toro 88-0350

Spring

$

$

Not available

11

Toro 77-1590

DIAPHRAGM

$

$

Not available

12

Toro 77-1580

DIAPHRAM GASKET

$

$

Not available

13

Toro 77-1570

MAIN JET

$

$

Not available

Toro 82-2540

Jet-High Altitude #41

Note: Not illustrated

$

$

Not available

14

Toro 77-1550

RUBBER CARB GASKET

$

$

Not available

15

Toro 77-1560

MAIN JET O-RING

$

$

Not available

16

Body-Carburetor (Ref.)

$

$

Not available

17

Toro 77-1530

Plug

$

$

Not available

18

Toro 77-1490

BRACKET

$

$

Not available

19

Toro 77-1480

LOCKNUT

$

$

Not available

20

Toro 77-1470

ADJUSTING SCREW

$

$

Not available

21

Toro 77-1500

SCREW

$

$

Not available

22

Toro 77-1510

Holder-Wire

$

$

Not available

23

Toro 77-9900

WASHER

$

$

Not available

24

Toro 77-1540

THROTTLE VALVE

$

$

Not available

25

Toro 77-1520

Clip

$

$

Not available

26

Toro 88-0370

Pin

$

$

Not available

27

Toro 88-0360

Lever

$

$

Not available

28

Toro 88-0380

Screw

$

$

Not available

Toro 88-0270

Carburetor Assembly (Incl. Ref. #1-24 & 48)

Note: Not illustrated

$598.99

$

Usually ships in 3-6 days

0

Toro 88-0410

Kit-Carburetor Repair (Incl. Ref. #5, 6, 8, 9, 11-15 & #28 page 4)

Note: Not illustrated

$

$

Not available
