51637 (TC 2010) - Toro String Trimmer (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

String Trimmer

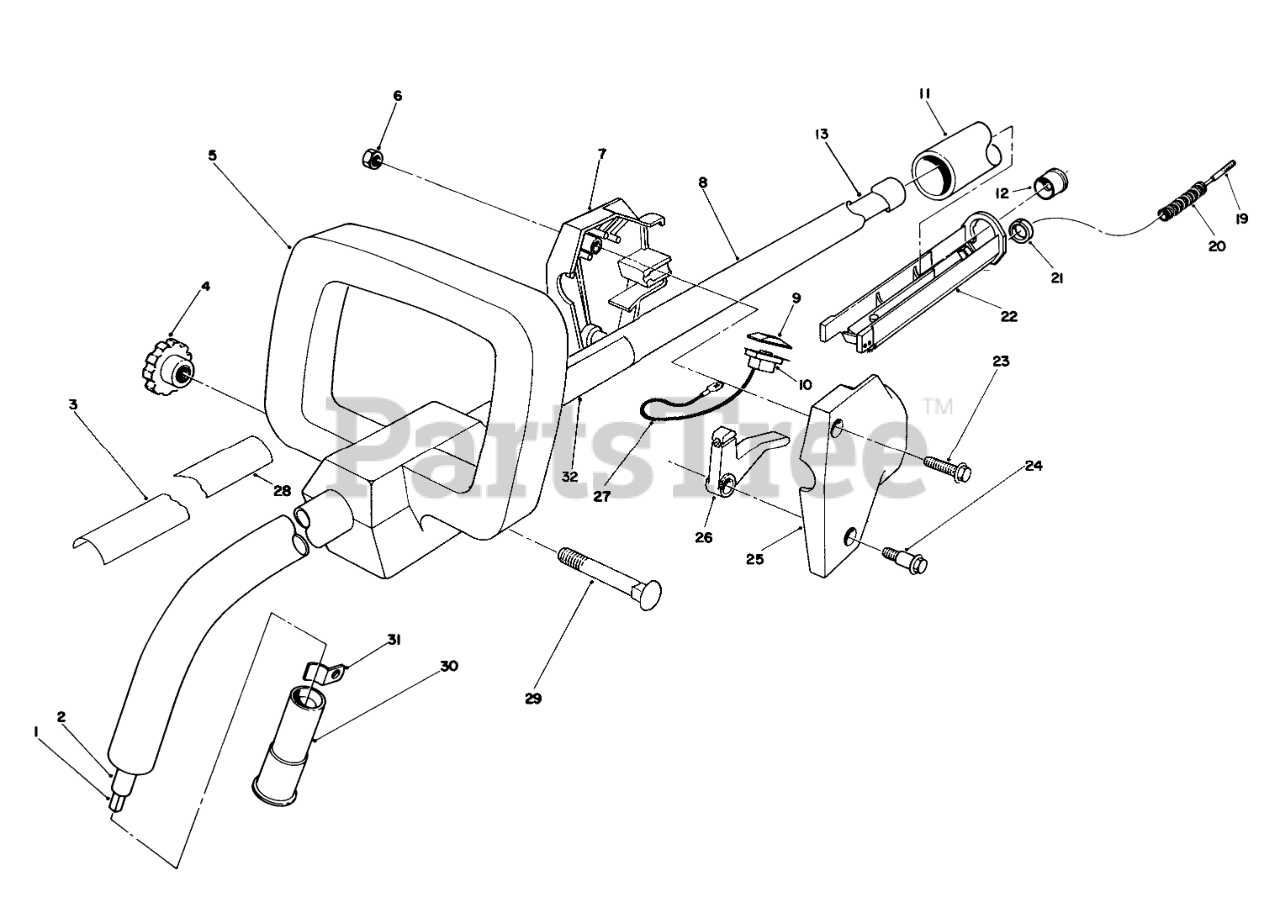

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-9810

FLEX SHAFT

$

$

Not available

2

Toro 57-5460

FLEX SHAFT CASING

$

$

Not available

3

Toro 76-4480

DECAL - TC 2010

$

$

Not available

4

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

5

Toro 42-5551

SECONDARY HANDLE

$

$

Not available

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

7

Toro 57-5480

RH HOUSING

$44.99

$

Usually ships in 3-6 days

0

8

Toro 53-7360

Tube-Curved

$

$

Not available

9

Toro 218-557

SWITCH COVER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

11

Toro 53-7110

GRIP-RUBBER

$

$

Not available

12

Toro 54-7630

BUSHING

$2.49

$

In Stock, only 1 left!

0

13

Toro 57-5470

Spacer

$

$

Not available

19

Toro 76-4370

THROTTLE CABLE

$

$

Not available

20

Toro 55-8411

CABLE COVER

$

$

Not available

21

Toro 2412-48

RING FITTING

$

$

Not available

22

Toro 53-7280

TROUGH

$

$

Not available

23

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

24

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

25

Toro 57-5490

LH HOUSING

$44.99

$

Usually ships in 3-6 days

0

26

Toro 53-7273

THROTTLE LEVER

$

$

Not available

27

Toro 53-7370

WIRE ASM

$

$

Not available

28

Toro 82-6210

Decal-Warning

$

$

Not available

29

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

30

Toro 44-6640

INSERT-POLE END

$

$

Not available

31

Toro 46-9890

LOWER TUBE RETAINER

$

$

Not available

32

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

Toro 57-5510

Casing Assembly (Incl. Ref. #2 & 13)

$73.99

$

Usually ships in 3-6 days

0
