51637 (TC 2010) - Toro String Trimmer (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

String Trimmer

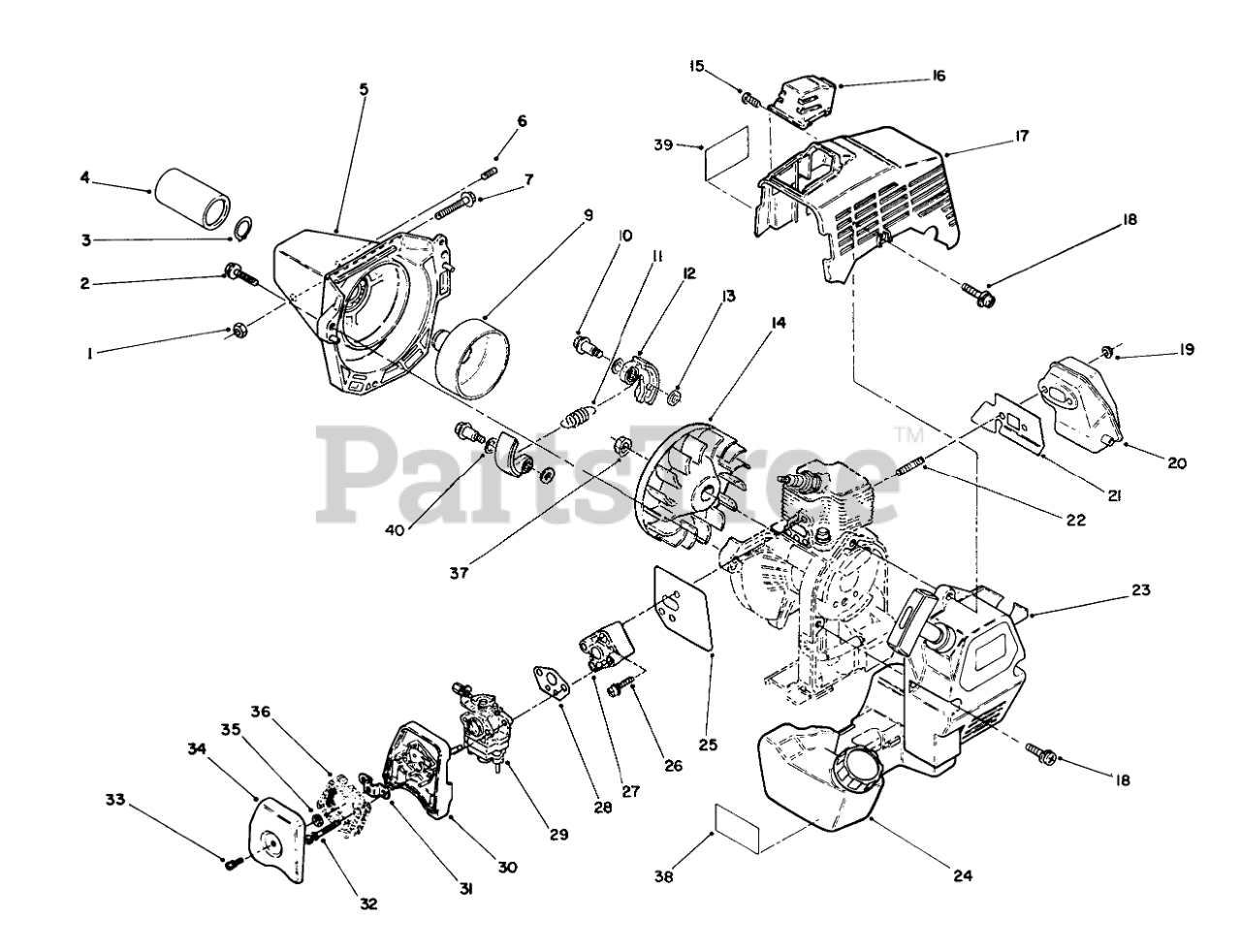

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 56-8770

NUT

$

$

Not available

2

Toro 54-4790

BOLT AND WASHER

$5.99

$

Usually ships in 3-6 days

0

3

Toro 54-4470

SNAPRING

$

$

Not available

4

Toro 82-8490

POLE SPACER

$

$

Not available

5

Toro 77-2160

Housing-Clutch

$

$

Not available

6

Toro 3247-10

SETSCREW

$

$

Not available

7

Toro 77-2150

Screw/Washer

$

$

Not available

9

Toro 60-7640

CLUTCH DRUM

$137.99

$

Usually ships in 3-6 days

0

10

Toro 82-6040

CLUTCH BOLT

$

$

Not available

11

Toro 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

12

Toro 54-6220

SHOE, CLUTCH

$

$

Not available

Toro 77-1830

Clutch Assembly (Incl. Ref. #11 & 12)

$

$

Not available

13

Toro 77-1840

WASHER

$

$

Not available

14

Toro 60-7780

Fan
(Superseded to 65-2580)

$

$

Not available

15

Toro 54-6890

SCREW & WASHER

$

$

Not available

16

Toro 77-1190

SPARK PLUG GUARD

$

$

Not available

17

Toro 77-1200

TOP SHIELD

$

$

Not available

18

Toro 77-1860

SCREW & WASHER

$

$

Not available

19

Toro 77-1790

MUFFLER FLANGE NUT

$

$

Not available

20

Toro 77-1780

MUFFLER

$

$

Not available

21

Toro 82-6080

MUFFLER GASKET

$

$

Not available

22

Toro 77-1210

MUFFLER STUD

$

$

Not available

23

Toro 82-6180

RECOIL ASSEMBLY

$

$

Not available

24

Toro 77-2080

Fuel Tank Assembly
(Superseded to 88-0220)

$

$

Not available

25

Toro 77-1460

INSULATOR GASKET

$

$

Not available

26

Toro 60-7930

SCREW & WASHER

$

$

Not available

27

Toro 77-1450

INSULATOR

$

$

Not available

28

Toro 77-1430

CARBURETOR GASKET

$7.49

$

Usually ships in 3-6 days

0

29

Toro 77-1420

Carburator Assembly
(Superseded to 99-5283)

$

$

Not available

30

Toro 77-1760

CLEANER CASE

$58.99

$

Usually ships in 3-6 days

0

31

Toro 77-1750

BRACKET

$

$

Not available

32

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

33

Toro 60-7680

SCREW & WASHERE

$

$

Not available

34

Toro 77-1710

CLEANER COVER

$

$

Not available

35

Toro 77-1720

NUT

$9.99

$

In Stock, only 1 left!

0

36

Toro 77-1730

CLEANER ELEMENT

$28.99

$

Usually ships in 3-6 days

0

37

Toro 54-4670

NUT

$

$

Not available

38

Toro 70-9930

DECAL - FUEL TANK

$

$

Not available

39

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

40

Toro 82-6050

SPRING WASHER

$

$

Not available

Engine-TM21

$

$

Not available
