51637 (TC 2010) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) HANDLE ASSEMBLY Parts Diagram

String Trimmer

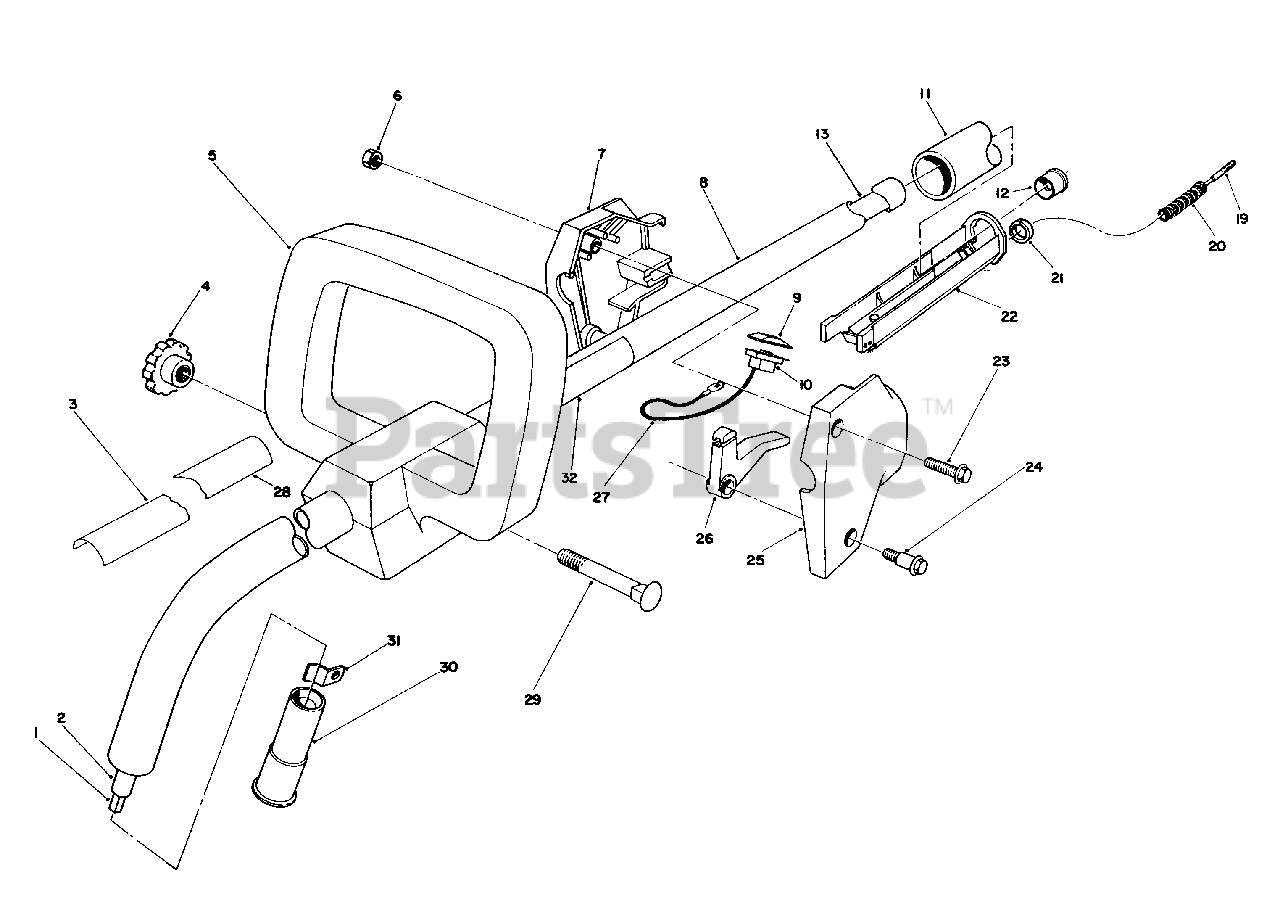

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 46-9810

Shaft-Wound Drive

$

$

Not available

2

Lawn-Boy 57-5460

Liner-Shaft

$

$

Not available

3

Lawn-Boy 76-4480

Decal-TC 2010

$

$

Not available

4

Lawn-Boy 19-4050

Knob-Handle Release

$17.99

$

In Stock, only 2 left!

0

5

$

$

Not available

6

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

7

Lawn-Boy 57-5480

Housing-R.H.

$46.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 53-7360

Tube-Curved

$

$

Not available

9

Lawn-Boy 218-557

Cap-Switch

$

$

Not available

10

$17.99

$

In Stock, Qty 10

0

$

$

Not available

12

Lawn-Boy 54-7630

Bushing-Pilot

$2.49

$

In Stock, only 1 left!

0

13

$

$

Not available

19

Lawn-Boy 76-4370

Cable-Throttle

$

$

Not available

20

Lawn-Boy 55-8411

Cover-Cable

$

$

Not available

$

$

Not available

22

$

$

Not available

23

Lawn-Boy 32105-12

Screw-Hex. Washer Hd.

$2.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 57-5420

Screw-Shoulder

$6.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 57-5490

Housing-L.H.

$46.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 53-7273

Lever-Throttle

$

$

Not available

$

$

Not available

28

Lawn-Boy 82-6210

Decal-Warning

$

$

Not available

29

Lawn-Boy 3-7253

Bolt-Carriage
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

30

$

$

Not available

31

Lawn-Boy 46-9890

Retainer-Tube

$

$

Not available

32

Lawn-Boy 83-6620

Decal-Instructions

$

$

Not available

Lawn-Boy 57-5510

Casing Assembly (Incl. Ref. #2 & 13)

Note: Not Illustrated

$74.99

$

Usually ships in 3-6 days

0
