51637 (TC 2010) - Lawn-Boy String Trimmer (SN: 001000001 - 001999999) (1991) ENGINE ASSEMBLY Parts Diagram

String Trimmer

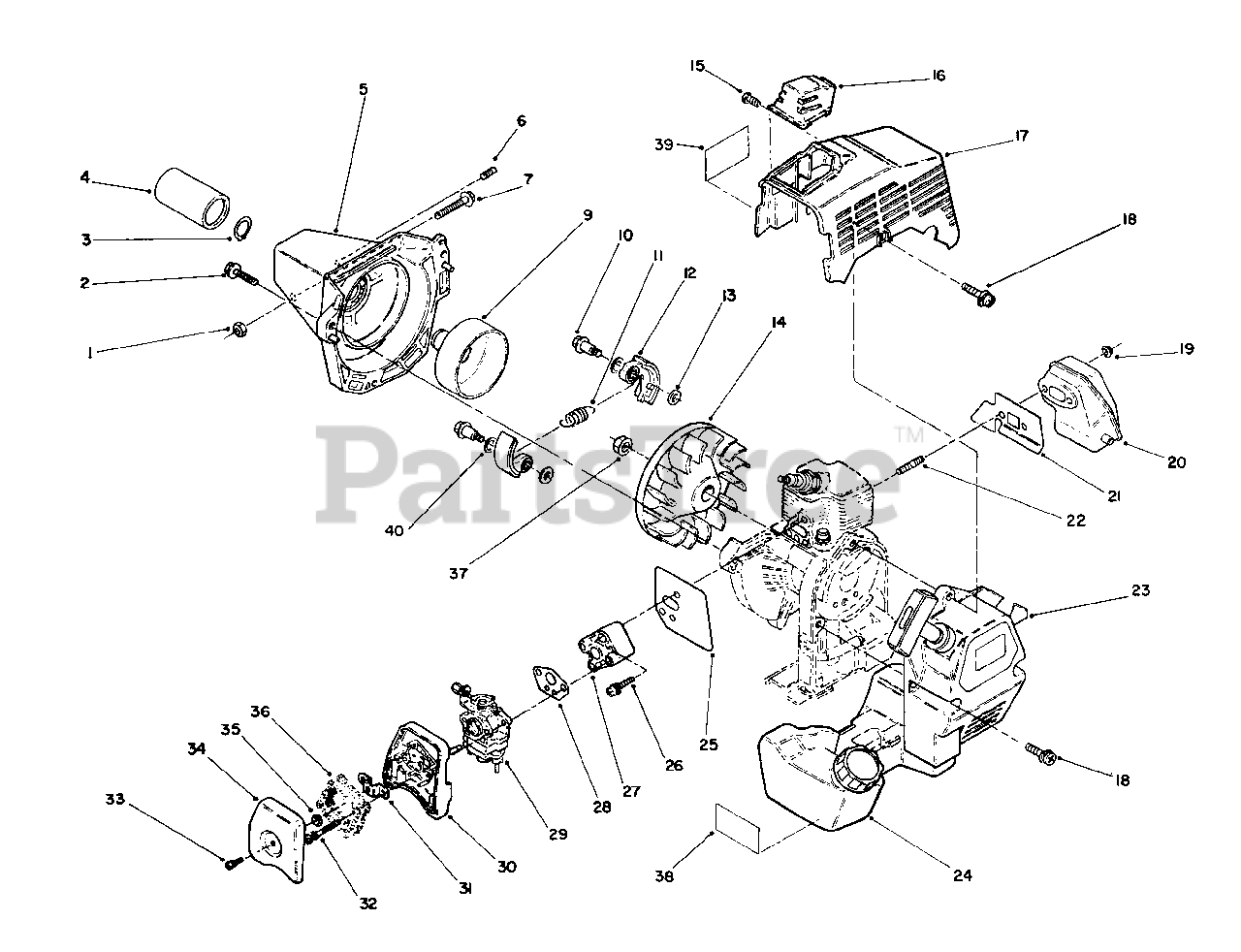

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 56-8770

Nut-Lock

$

$

Not available

2

Lawn-Boy 54-4790

Bolt/Washer

$5.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 54-4470

Ring-Retaining

$

$

Not available

4

$

$

Not available

5

Lawn-Boy 77-2160

Housing-Clutch

$

$

Not available

6

Lawn-Boy 3247-10

Screw-Set

$

$

Not available

7

Lawn-Boy 77-2150

Screw/Washer

$

$

Not available

9

Lawn-Boy 60-7640

Clutch-Drum

$137.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 82-6040

Bolt Clutch

$

$

Not available

11

Lawn-Boy 54-6230

Spring
(Superseded to 65-4440)

$

$

Not available

12

Lawn-Boy 54-6220

Shoe-Clutch

$

$

Not available

Lawn-Boy 77-1830

Clutch Assembly (Incl. Ref. #11 & 12)

Note: Not Illustrated

$

$

Not available

13

$

$

Not available

14

Lawn-Boy 60-7780

Fan
(Superseded to 65-2580)

$

$

Not available

15

$

$

Not available

16

Lawn-Boy 77-1190

Guard-Spark Plug

$

$

Not available

17

Lawn-Boy 77-1200

Cover-Engine

$

$

Not available

18

Lawn-Boy 77-1860

Screw/Washer

$

$

Not available

19

Lawn-Boy 77-1790

Nut-Flanged

$

$

Not available

20

$

$

Not available

21

Lawn-Boy 82-6080

Gasket-Muffler

$

$

Not available

$

$

Not available

23

Lawn-Boy 82-6180

Recoil Assembly

$

$

Not available

24

Lawn-Boy 77-2080

Fuel Tank Assembly
(Superseded to 88-0220)

$

$

Not available

25

Lawn-Boy 77-1460

Gasket-Insulator

$

$

Not available

26

Lawn-Boy 60-7930

Screw/Washer

$

$

Not available

27

Lawn-Boy 77-1450

Insulator

$

$

Not available

28

Lawn-Boy 77-1430

Gasket-Carburetor

$7.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 77-1420

Carburetor Assembly
(Superseded to 99-5283)

$

$

Not available

30

Lawn-Boy 77-1760

Case-Air Cleaner

$58.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 77-1750

Bracket-Cover

$

$

Not available

32

Lawn-Boy 54-4870

Screw/Washer

$3.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 60-7680

Screw/Washer

$

$

Not available

34

Lawn-Boy 77-1710

Cover-Air Cleaner

$

$

Not available

$9.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 77-1730

Element-Air Cleaner

$28.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 54-4670

Nut-Conical

$

$

Not available

38

Lawn-Boy 70-9930

Decal-Mix

$

$

Not available

39

Lawn-Boy 65-2690

Decal-Hot

$5.49

$

In Stock, only 4 left!

0

40

Lawn-Boy 82-6050

Washer-Wave

$

$

Not available

Engine-TM21

Note: Not Illustrated

$

$

Not available
