51637 (TC 2010) - Lawn-Boy String Trimmer (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

String Trimmer

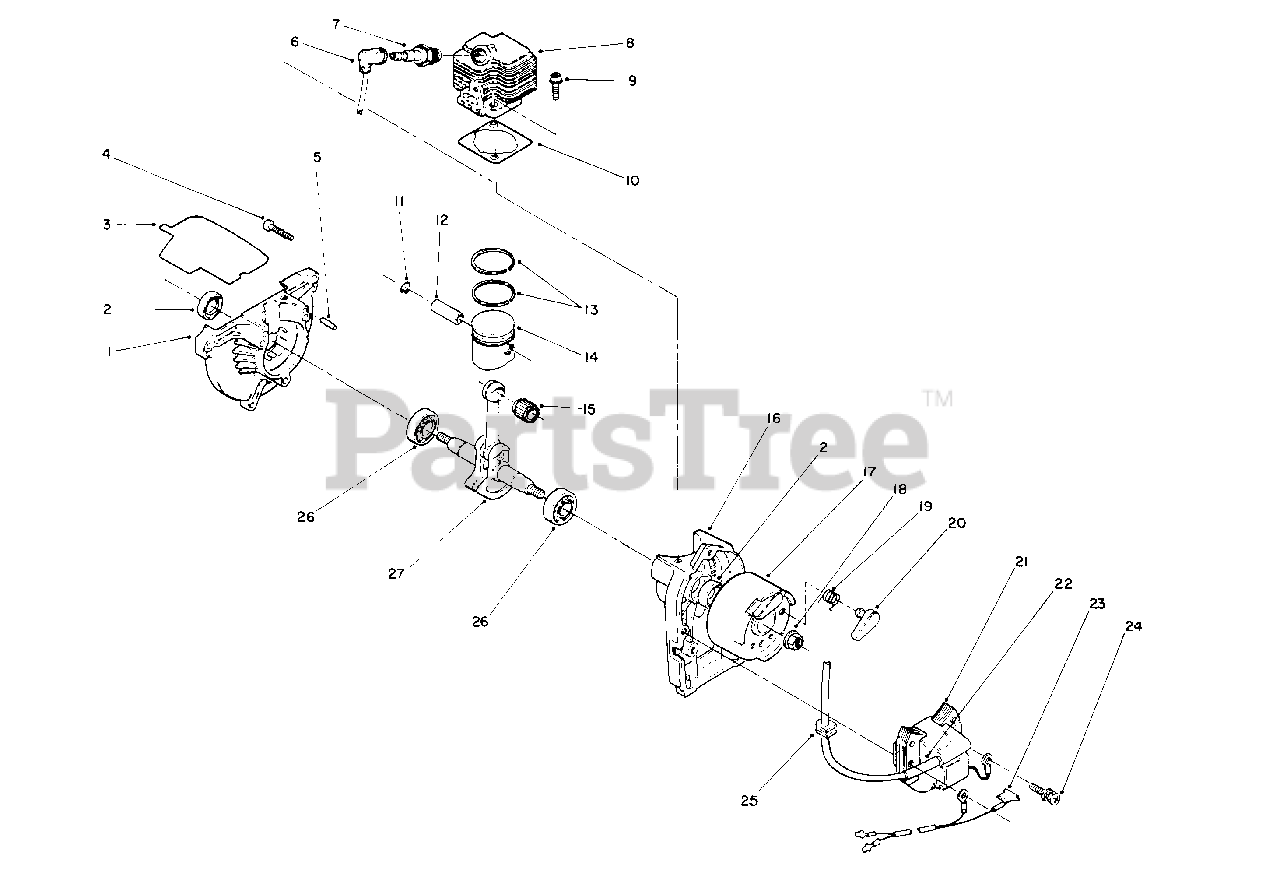

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 77-1160

Case-Drive

$

$

Not available

2

Lawn-Boy 54-4380

Seal-Oil

$24.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 77-1170

Gasket-Baffle
(Superseded to 99-5282)

$

$

Not available

4

Lawn-Boy 54-4330

Screw-Pan Hd.

$

$

Not available

5

Lawn-Boy 60-7590

Pin-Dowel

$

$

Not available

6

Lawn-Boy 77-1340

Boot-plug

$

$

Not available

7

Lawn-Boy 77-1350

Plug-Spark
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 77-1220

Cylinder

$

$

Not available

9

Lawn-Boy 60-7720

Bolt-Cylinder

$

$

Not available

10

Lawn-Boy 60-7730

Gasket-Cylinder

$7.49

$

In Stock, Qty 6

0

11

Lawn-Boy 54-5920

Clip-Piston Pin

$

$

Not available

12

Lawn-Boy 60-7760

Pin-Piston

$

$

Not available

13

Lawn-Boy 60-7740

Ring-Top

$15.08

$

In Stock, only 1 left!

0

14

Lawn-Boy 77-1280

Piston (Incl. Ref. #11 & 12)

$222.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 54-5930

Bearing-Needle

$

$

Not available

16

Lawn-Boy 60-7600

Case-Starter

$

$

Not available

17

Lawn-Boy 77-1360

Flywheel (Incl. Ref. #19 & 20)

$

$

Not available

18

Lawn-Boy 54-4670

Nut-Conical

$

$

Not available

19

Lawn-Boy 77-1370

Spring-Return

$

$

Not available

20

Lawn-Boy 77-1380

Ratchet

$

$

Not available

21

Lawn-Boy 77-1400

Coil-Ignition

$

$

Not available

22

Lawn-Boy 77-2180

Tube

$

$

Not available

23

Lawn-Boy 77-2190

Lead-wire

$

$

Not available

24

Lawn-Boy 54-4790

Bolt/Washer

$5.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 60-7840

Grommet

$

$

Not available

26

Lawn-Boy 54-4360

Bearing-Main

$

$

Not available

27

Lawn-Boy 77-1330

Crank Shaft Assembly

$

$

Not available
