51635 (1700) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

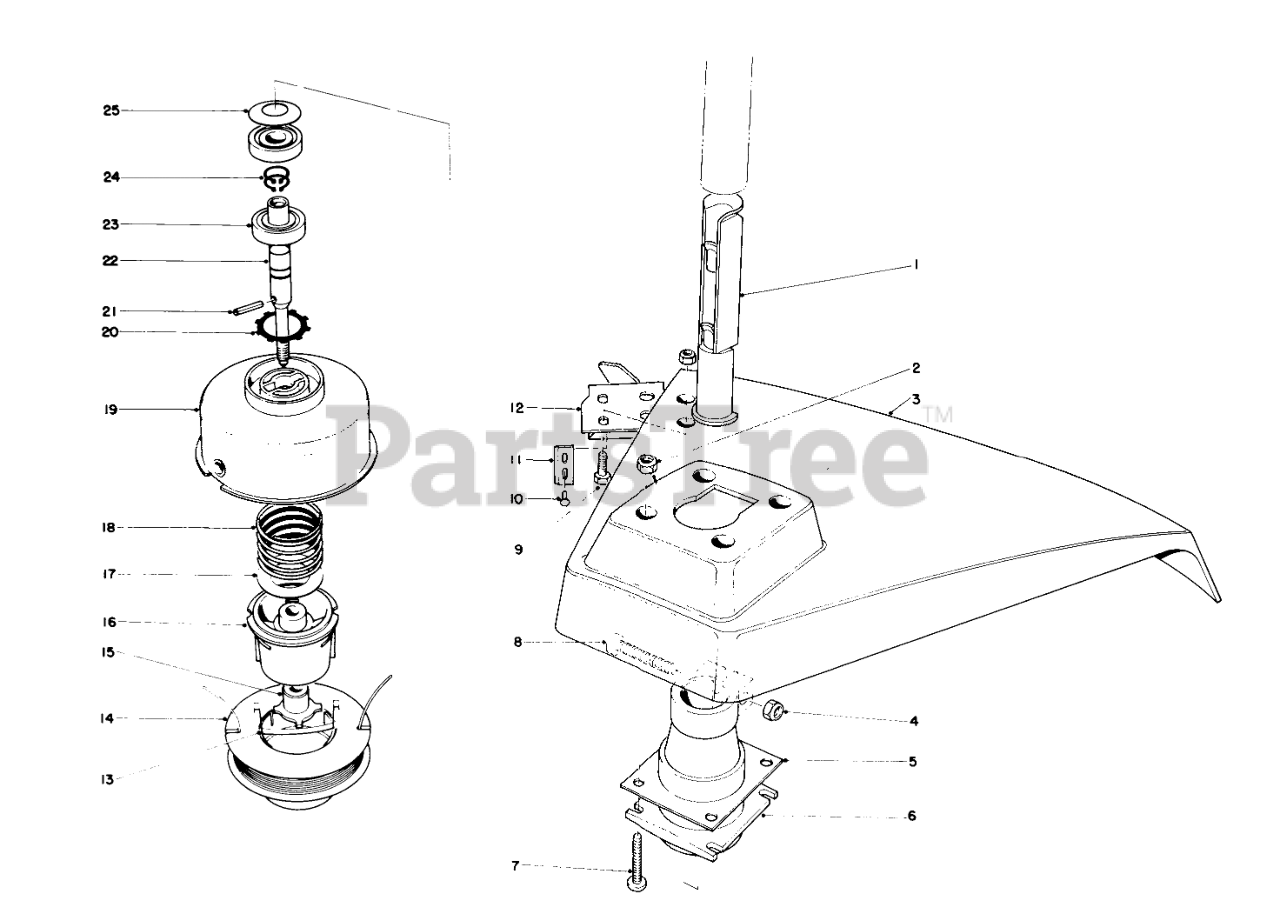

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 42-5560

Insert-Pole End

$

$

Not available

2

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 42-5620

Shield

$

$

Not available

4

Toro 329642

Nut

$

$

Currently unavailable

5

Toro 42-6010

Gasket-Grass Shield

$

$

Not available

6

Toro 42-5530

Bearing Housing
(Superseded to 42-5931)

$

$

Not available

7

Toro 3250-23

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3250-24

Screw-Pan Head Machine

$

$

Not available

9

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 3290-54

RIVET-BLIND

$0.99

$

In Stock, only 2 left!

0

11

Toro 42-5790

Blade-Knife
(Superseded to 42-5920)

$

$

Not available

12

Toro 42-5920

Bracket and Knife Blade Assy. (Incl. Ref. #10 & 11)

$

$

Not available

13

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

14

Toro 42-5940

Spool & Line Assembly

$

$

Not available

15

Toro 29-7140

Driver
(Superseded to 42-6050)

$28.99

$

Usually ships in 3-6 days

0

16

Toro 33-6230

SPOOL CORE

$

$

Not available

17

Toro 325642

Washer

$

$

Currently unavailable

18

Toro 29-7130

SPRING COMPRESSION

$9.99

$

Usually ships in 3-6 days

0

19

Toro 42-5951

Drum & Eyelet Assembly
(Superseded to 42-5950)

$73.99

$

Usually ships in 3-6 days

0

20

Toro 42-5770

SPRING GRIP

$

$

Not available

21

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

22

Toro 42-5820

POWER SHAFT

$

$

Not available

23

Toro 251-294

Bearing
(Superseded to 49-2410)

$52.99

$

Usually ships in 3-6 days

0

24

Toro 32151-65

RING-SNAP

$3.49

$

Usually ships in 3-6 days

0

25

Toro 42-6030

FLAT WASHER

$

$

Not available
