51635 (1700) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

String Trimmer

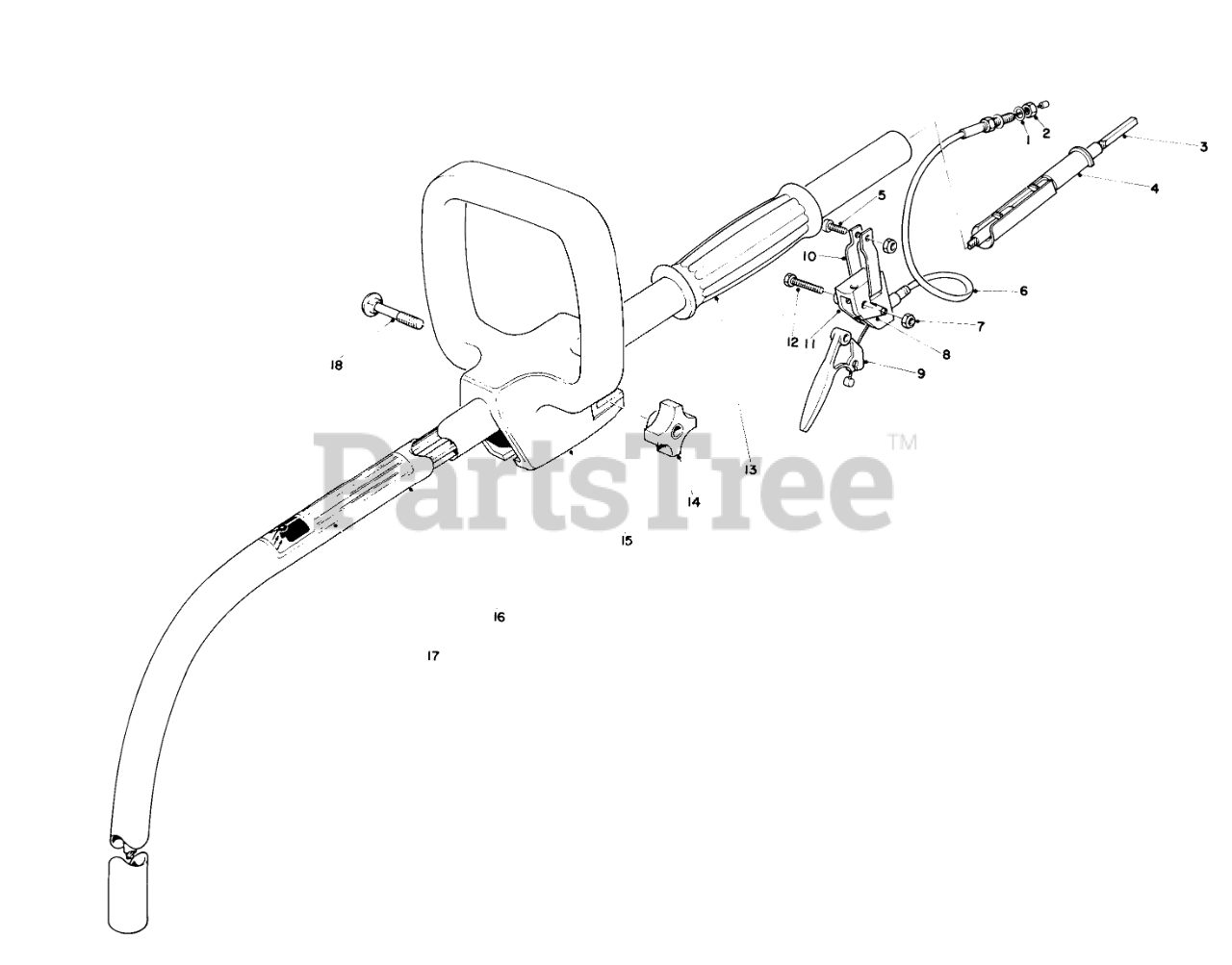

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

2

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

3

Toro 42-5700

Shaft-Flex

$

$

Not available

4

Toro 42-5560

Insert-Pole End

$

$

Not available

5

Toro 3250-25

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

6

Toro 42-6130

Cable-Throttle (Incl. Ref. #6 & 7)

$

$

Not available

7

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

8

Toro 42-6150

Spring-Throttle Control

$

$

Not available

9

Toro 42-6190

Lever-Throttle Control

$

$

Not available

10

Toro 42-6170

Clamp-Throttle Control

$

$

Not available

11

Toro 42-6180

Body-Throttle Control

$

$

Not available

12

Toro 3290432

Screw-Hex Head Machine

$

$

Currently unavailable

13

Toro 42-6140

Grip-Handle

$

$

Not available

14

Toro 42-5890

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

15

Toro 42-5551

SECONDARY HANDLE

$

$

Not available

16

Toro 42-5720

Tube-Shaft Housing

$

$

Not available

17

Toro 42-5850

Decal Warning

$

$

Not available

18

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

Toro 11-0129

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 34-3270

REP. SERIAL PLT

Note: Not illustrated

$

$

Not available
