51635 (1700) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

String Trimmer

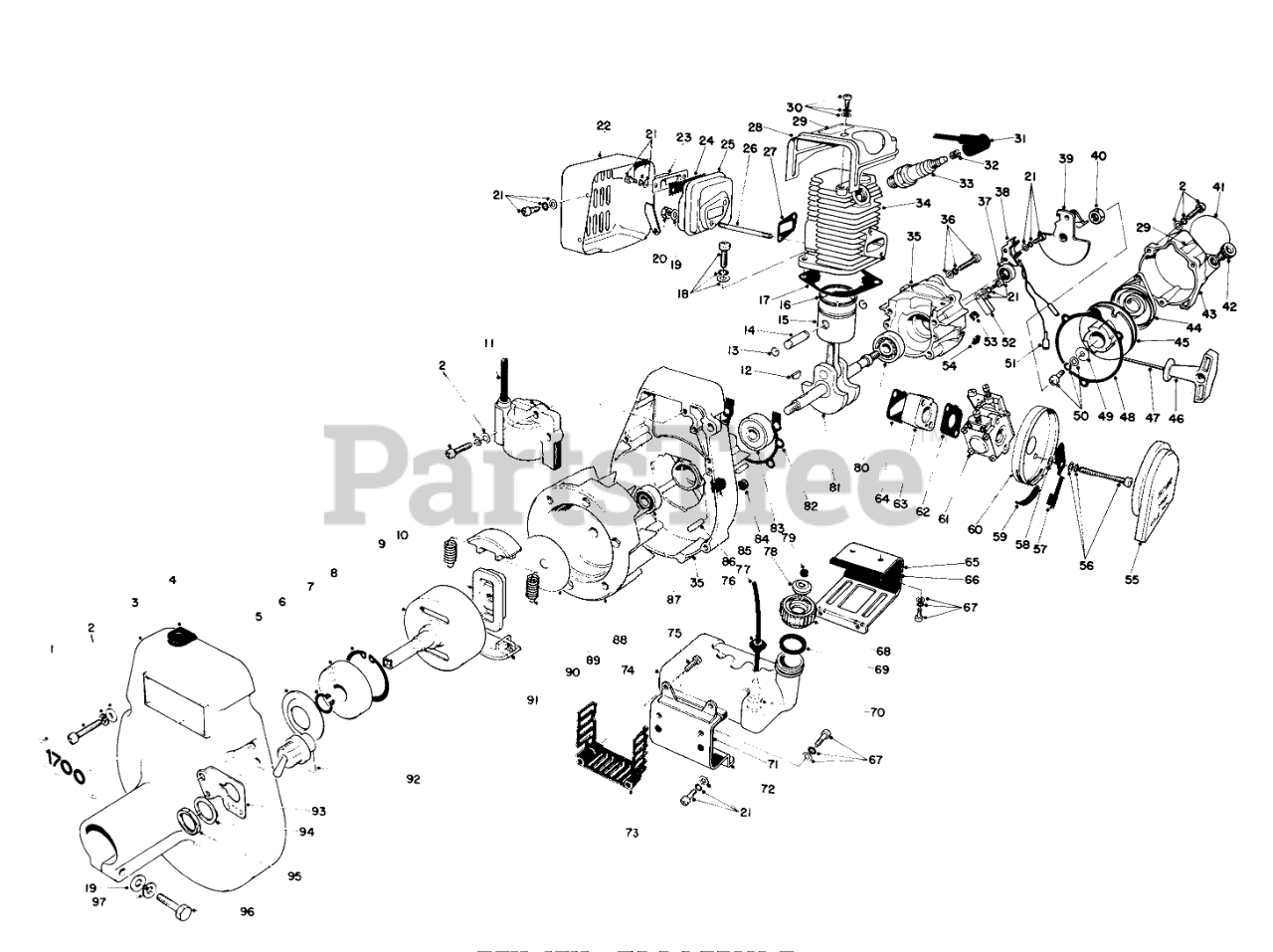

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 42-5750

Decal-1700

$

$

Not available

2

Toro 41-5170

SCREW

$

$

Not available

3

Toro 43-9840

Fan Cover

$

$

Not available

4

Toro 43-9830

Grommet

$

$

Not available

5

Toro 34-7810

Stopper

$

$

Not available

6

Toro 41-5550

Circlip

$

$

Not available

7

Toro 43-9820

Ball Bearing

$

$

Not available

8

Toro 41-5580

Circlip

$

$

Not available

9

Toro 34-7740

Clutch Drum

$

$

Not available

10

Toro 43-9810

Clutch Boss

$

$

Not available

11

Toro 43-9760

Ignition Coil

$

$

Not available

12

Toro 43-9300

Woodruff Key

$

$

Not available

13

Toro 41-0160

Circlip, Piston Pin

$

$

Not available

14

Toro 43-9310

Piston Pin

$

$

Not available

15

Toro 43-9320

Piston

$

$

Not available

16

Toro 43-9330

Piston Ring
(Superseded to 41-0070)

$

$

Not available

17

Toro 43-9340

Gasket, Cylinder Base
(Superseded to 63-5070)

$

$

Not available

18

Toro 43-9360

SCREW W/WASHER

$

$

Not available

19

Toro 41-5440

WASHER

$

$

Not available

20

Toro 41-4250

Nut

$

$

Not available

21

Toro 41-5160

SCREW

$

$

Not available

22

Toro 43-9450

Muffler Cover

$

$

Not available

23

Toro 43-9440

Lid-Muffler

$

$

Not available

24

Toro 43-9430

Screen

$

$

Not available

25

Toro 43-9420

Muffler Body

$

$

Not available

26

Toro 43-9390

STUD BOLT

$

$

Not available

27

Toro 43-9410

Gasket, Muffler

$

$

Not available

28

Toro 43-9370

Cylinder Cover

$

$

Not available

29

Toro 42-6210

Decal-Hot Surface
(Superseded to 65-2690)

$5.49

$

In Stock, only 4 left!

0

30

Toro 41-5190

SCREW

$

$

Not available

31

Toro 41-2520

Cap-Spark Plug

$

$

Not available

32

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

33

Toro 43-9770

Spark Plug

$

$

Currently unavailable

34

Toro 43-9350

Cylinder

$

$

Not available

35

Toro 43-9210

Crankcase Set

$

$

Not available

36

Toro 41-5260

SCREW

$

$

Not available

37

Toro 34-6540

Oil Seal

$

$

Not available

38

Toro 43-9470

Breaker Point Set

$

$

Not available

39

Toro 43-9510

Ratchet Assembly

$

$

Not available

40

Toro 41-5390

NUT

$

$

Not available

41

Toro 33-8340

Decal

$

$

Not available

42

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

43

Toro 43-9550

Starter Case

$

$

Not available

44

Toro 34-7900

REWIND SPRING

$

$

Not available

45

Toro 43-9540

Recoil Drum

$

$

Not available

46

Toro 34-7930

Starter Handle

$

$

Not available

47

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

48

Toro 43-9520

Gasket-Start Case

$

$

Not available

49

Toro 41-2920

Washer

$

$

Not available

50

Toro 41-5150

Screw

$

$

Not available

51

Toro 43-9460

Ground Lead

$

$

Not available

52

Toro 43-9480

Condenser

$

$

Not available

53

Toro 43-9490

Oil Pad

$

$

Not available

54

Toro 43-9500

Grommet

$

$

Not available

55

Toro 43-9730

Air Filter
(Superseded to 46-3960)

$

$

Not available

56

Toro 34-8610

SCREW

$

$

Not available

57

Toro 43-9720

CHOKE SHUTTER

$

$

Not available

58

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

59

Toro 43-9710

Grommet

$

$

Not available

60

Toro 43-9700

Case-Air Cleaner

$

$

Not available

61

Toro 43-9630

Carburetor Assembly

$

$

Not available

62

Toro 43-9620

GASKET

$

$

Not available

63

Toro 43-9610

Insulator

$

$

Not available

64

Toro 43-9600

Gasket

$

$

Not available

65

Toro 43-9560

Bracket-Fuel Tank

$

$

Not available

66

Toro 43-9670

Cushion

$

$

Not available

67

Toro 34-8520

Screw
(Superseded to 47-6450)

$

$

Not available

68

Toro 41-1620

Cap-Fuel Tank
(Superseded to 43-9940)

$

$

Not available

69

Toro 41-8010

Gasket-Fuel Tank Cap
(Superseded to 41-1600)

$

$

Not available

70

Toro 43-9660

FUEL STRAINER

$

$

Not available

71

Toro 43-9260

Cushion

$

$

Not available

72

Toro 43-9270

Bracket-Fuel Tank

$

$

Not available

73

Toro 43-9380

Dust Filter

$

$

Not available

74

Toro 43-9590

FUEL TANK

$

$

Not available

75

Toro 34-8630

Screw

$

$

Not available

76

Toro 43-9640

Grommet
(Superseded to 41-1880)

$

$

Not available

77

Toro 43-9650

Fuel Line

$

$

Not available

78

Toro 43-9580

Check Valve

$

$

Not available

79

Toro 41-1700

Filter

$

$

Not available

80

Toro 34-8760

Bearing

$

$

Not available

81

Toro 43-9190

Crankshaft Assembly

$

$

Not available

Toro 43-9240

Needle Bearing (Incl. with Ref. #9)

Note: Not illustrated

$

$

Not available

Toro 43-9250

Spacer-Piston Pin (Incl. with Ref. #9)

Note: Not illustrated

$

$

Not available

82

Toro 43-9200

Gasket-Crankcase
(Superseded to 63-5070)

$

$

Not available

83

Toro 43-9280

Bearing

$

$

Not available

84

Toro 43-9740

Plug

$

$

Not available

85

Toro 43-9230

Grommet

$

$

Not available

86

Toro 43-9220

Pin

$

$

Not available

87

Toro 43-9290

Oil Seal

$

$

Not available

88

Toro 43-9750

FIywheel

$

$

Not available

89

Toro 43-9780

Side Plate

$

$

Not available

90

Toro 43-9800

Clutch Spring
(Superseded to 41-2790)

$

$

Not available

91

Toro 43-9790

Clutch Shoe
(Superseded to 41-2710)

$

$

Not available

92

Toro 43-9850

Switch (Incl. Ref. #94, 95)

$45.99

$

Usually ships in 3-6 days

0

93

Toro 43-9870

Bracket-Switch

$

$

Not available

94

Washer

$

$

Not available

95

Jam Nut

$

$

Not available

96

Toro 43-9860

Bolt

$

$

Not available

97

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

Toro 43-9400

Muffler Assembly

Note: Not illustrated

$

$

Not available

Toro 43-9530

Washer, Spring (M6)

Note: Not illustrated

$

$

Not available

Toro 43-9570

Cap Assembly-Fuel Tank
(Superseded to 43-9940)

Note: Not illustrated

$

$

Not available
