51630 (1500) - Toro String Trimmer (SN: 001000001 - 001999999) (1981) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

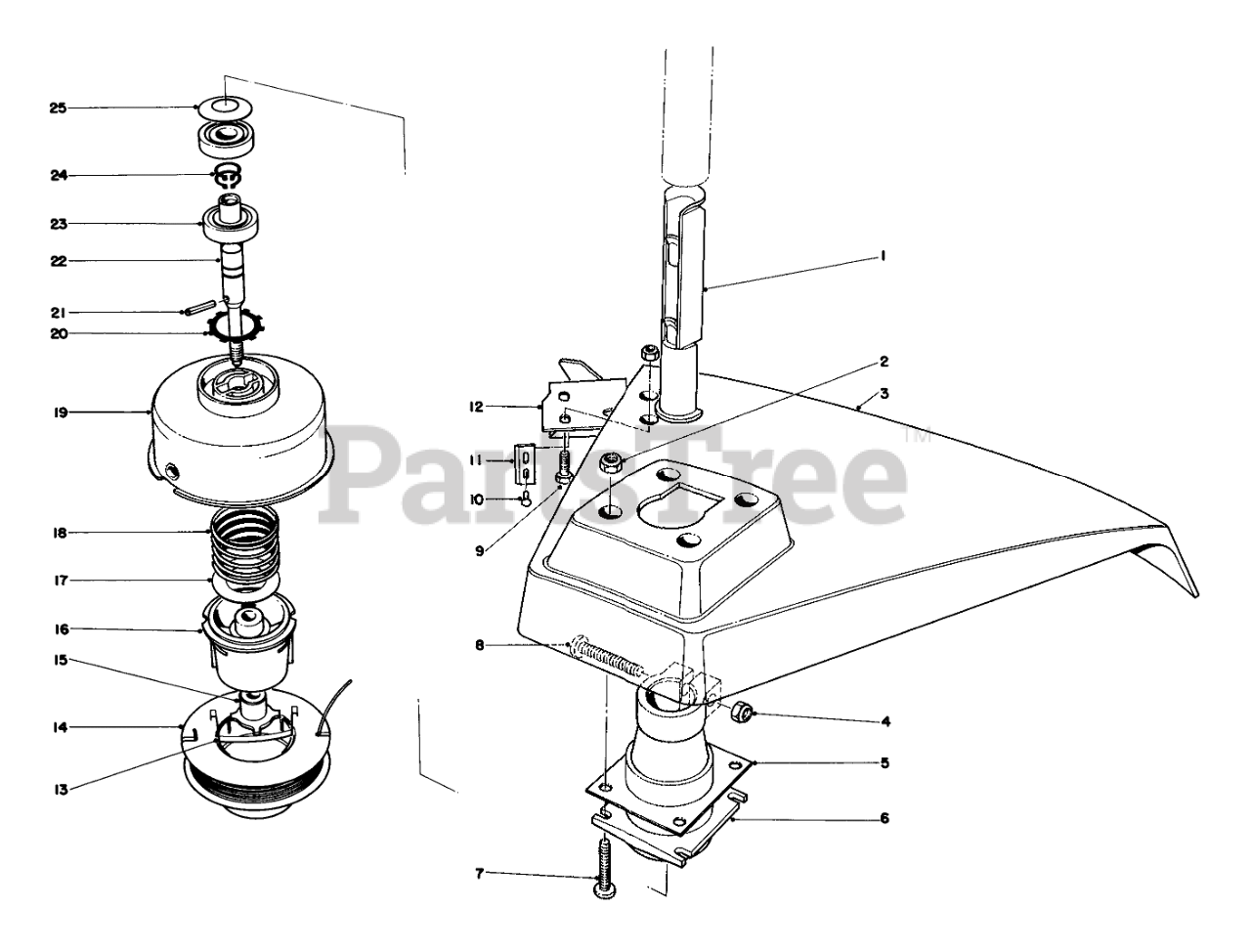

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 42-5560

Insert-Pole End

$

$

Not available

2

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 42-5540

Shield

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 42-6010

Gasket-Grass Shield

$

$

Not available

6

Toro 42-5930

Bearing Housing Assembly (Incl. Ref. #20-25)
(Superseded to 42-5931)

$

$

Not available

7

Toro 3250-23

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3250-24

Screw-Pan Head Machine

$

$

Not available

9

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

10

Rivet

$

$

Not available

11

Blade-Knife

$

$

Not available

12

Toro 42-5920

Bracket & Blade Assembly (Incl. Ref. #10-11)

$

$

Not available

13

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

14

Toro 42-5940

Spool & Line Assembly

$

$

Not available

15

Toro 42-6050

DRIVER

$27.99

$

Usually ships in 3-6 days

0

16

Toro 33-6230

SPOOL CORE

$

$

Not available

17

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

18

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

19

Toro 42-5950

DRUM/EYELET

$69.99

$

Usually ships in 3-6 days

0

20

Spring Grip-Ext. Tooth

$

$

Not available

21

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

22

Power Shaft

$

$

Not available

24

RING-Retaining

$

$

Not available

25

Washer

$

$

Not available

Toro 42-5690

Spool Only

Note: Not illustrated

$

$

Not available
