51628 (TC 1800) - Toro String Trimmer (SN: 009000001 - 009999999) (1989) CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

String Trimmer

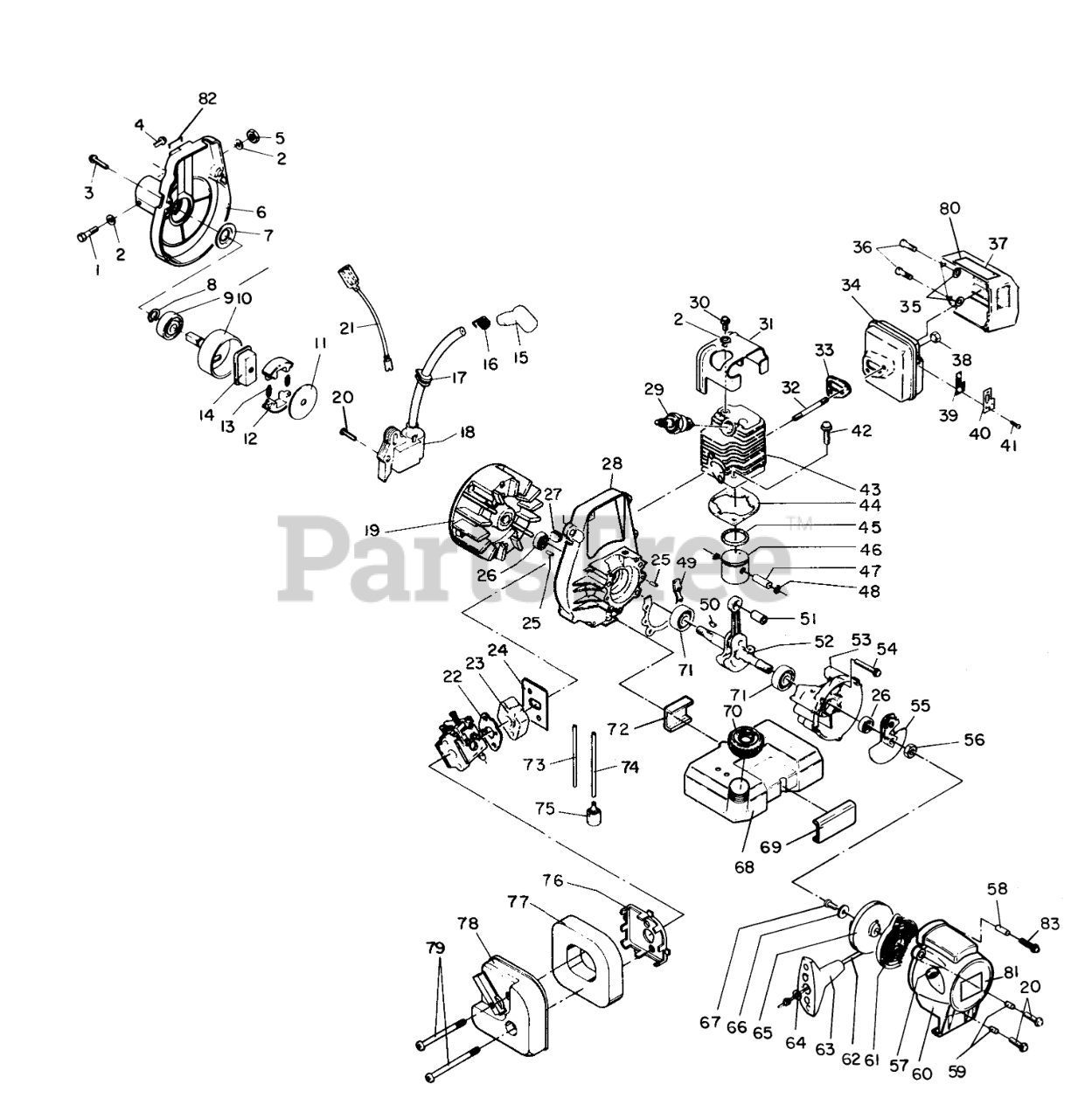

CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 72-0550

Screw-Engine Clamp

$

$

Not available

2

Toro 72-0570

Washer-Flat

$

$

Not available

3

Toro 72-0610

Screw-Rotor

$

$

Not available

4

Toro 72-0580

Screw-Jams

$

$

Not available

5

Toro 72-0560

Nut-Engine Clamp

$

$

Not available

6

Toro 72-0620

Housing-Fan

$

$

Not available

7

Toro 72-0630

Plate-Thrust

$

$

Not available

8

Toro 72-0640

Ring-Retaining

$

$

Not available

9

Toro 72-0650

Bearing-Ball

$

$

Not available

10

Toro 72-0660

Clutch-Drum

$

$

Not available

11

Toro 72-0700

Plate-Side

$

$

Not available

12

Toro 72-0690

Clutch-Shoe

$

$

Not available

13

Toro 72-0680

Spring

$

$

Not available

14

Toro 72-0670

Rotor

$

$

Not available

15

Toro 72-0760

Boot-Spark Plug

$

$

Not available

16

Toro 72-0750

Connector-Spark

$

$

Not available

17

Toro 72-0740

Grommet

$

$

Not available

18

Toro 72-0730

Coil

$

$

Not available

19

Toro 72-0770

Flywheel

$

$

Not available

20

Toro 72-0720

Screw-Coil

$

$

Not available

21

Toro 72-0710

Wire Assembly-Switch

$

$

Not available

22

Toro 72-1330

CARBURETOR GASKET

$

$

Not available

23

Toro 72-1320

Insulator-Carburetor

$

$

Not available

24

Toro 72-1310

Gasket-Insulator

$

$

Not available

25

Toro 72-0800

Pin-Dowel

$

$

Not available

26

Toro 72-0860

Seal-Crankshaft

$

$

Not available

27

Toro 72-0780

Grommet

$

$

Not available

28

Toro 72-0790

Crankcase Assembly (Incl.Ref. #53)

$

$

Not available

29

Toro 72-0950

Spark Plug

$

$

Not available

30

Toro 72-0960

Screw

$

$

Not available

31

Toro 72-0970

CYLINDER COVER

$

$

Not available

32

Toro 72-0980

Stud-Muffler

$

$

Not available

33

Toro 72-0990

MUFFLER GASKET

$

$

Not available

34

Toro 72-1000

Muffler Assembly

$

$

Not available

35

Toro 72-1020

Spacer-Heat Shield

$

$

Not available

36

Toro 72-1010

Screw

$

$

Not available

37

Toro 72-1030

Shield-Heat

$

$

Not available

38

Toro 72-1040

Nut-Muffler

$

$

Not available

39

Toro 72-0590

Screen-Spark Arrester

$

$

Not available

40

Toro 72-1060

Cover-Screen

$

$

Not available

41

Toro 72-1070

Screw

$

$

Not available

42

Toro 72-0940

Screw-Cylinder

$

$

Not available

43

Toro 72-0930

Cylinder

$

$

Not available

44

Toro 72-0920

CYLINDER GASKET

$

$

Not available

45

Toro 72-0910

Ring-Piston

$

$

Not available

46

Toro 72-0900

Piston

$

$

Not available

47

Toro 72-0890

Pin-Wrist

$

$

Not available

48

Toro 72-0880

Ring-Snap

$

$

Not available

49

Toro 72-0810

Gasket-Crankcase

$

$

Not available

50

Toro 72-0830

Key-Flywheel

$

$

Not available

51

Toro 72-0820

Bearing-Needle

$

$

Not available

52

Toro 72-0850

Gasket

$

$

Not available

53

Toro 72-0790

Crankcase (Incl. Ref. #28)

$

$

Not available

54

Toro 72-0870

Screw

$

$

Not available

55

Toro 72-1080

Ratchet Ass-y-Recoil

$

$

Not available

56

Toro 72-1090

Nut-Hex

$

$

Not available

57

Toro 72-1200

Guide-Rope

$

$

Not available

58

Toro 72-1190

Spacer-Heat Shield

$

$

Not available

59

Toro 72-1220

Spacer-Recoil

$

$

Not available

60

Toro 72-1170

Housing-Recoil (Incl. Ref. #57)

$

$

Not available

61

Toro 72-1160

Spring-Recoil

$

$

Not available

62

Toro 72-1150

Rope-Recoil

$

$

Not available

63

Toro 72-1140

Handle-Recoil

$

$

Not available

64

Toro 72-1130

Washer-Recoil Rope

$

$

Not available

65

Toro 72-1120

Pulley

$

$

Not available

66

Toro 72-1110

Washer-Flat

$

$

Not available

67

Toro 72-1100

Screw

$

$

Not available

68

Toro 72-1240

Tank Assembly (Incl. Ref. #73-75)

$

$

Not available

69

Toro 72-1230

Pad-Fuel Tank

$

$

Not available

70

Toro 72-1260

Cap-Fuel

$

$

Not available

71

Toro 72-0840

Bearing-Main Ball

$

$

Not available

72

Toro 72-1270

Pad-Fuel Tank

$

$

Not available

73

Toro 72-1290

Hose-Fuel Return

$

$

Not available

74

Toro 72-1280

Hose-Fuel Carb.

$

$

Not available

75

Toro 72-1300

FUEL FILTER

$

$

Not available

76

Toro 72-1340

Box-Air Cleaner

$

$

Not available

77

Toro 72-1350

Filter-Air (Foam)

$

$

Not available

78

Toro 72-1360

Cover-Choke

$

$

Not available

79

Toro 72-1370

Screw-Choke Lever

$

$

Not available

80

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

81

Toro 68-5370

DECAL

$8.49

$

Usually ships in 3-6 days

0

82

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

83

Toro 72-1180

Screw

$

$

Not available

Toro 72-1400

Clutch Assembly (Incl. Ref. #12-14)

$

$

Not available

Toro 72-1410

Tank Assembly (Incl. Ref. #24, 73, & 75)

$

$

Currently unavailable
