51628 (TC 1800) - Lawn-Boy String Trimmer (SN: 009000001 - 009999999) (1989) TRIMMER HEAD ASSEMBLY Parts Diagram

String Trimmer

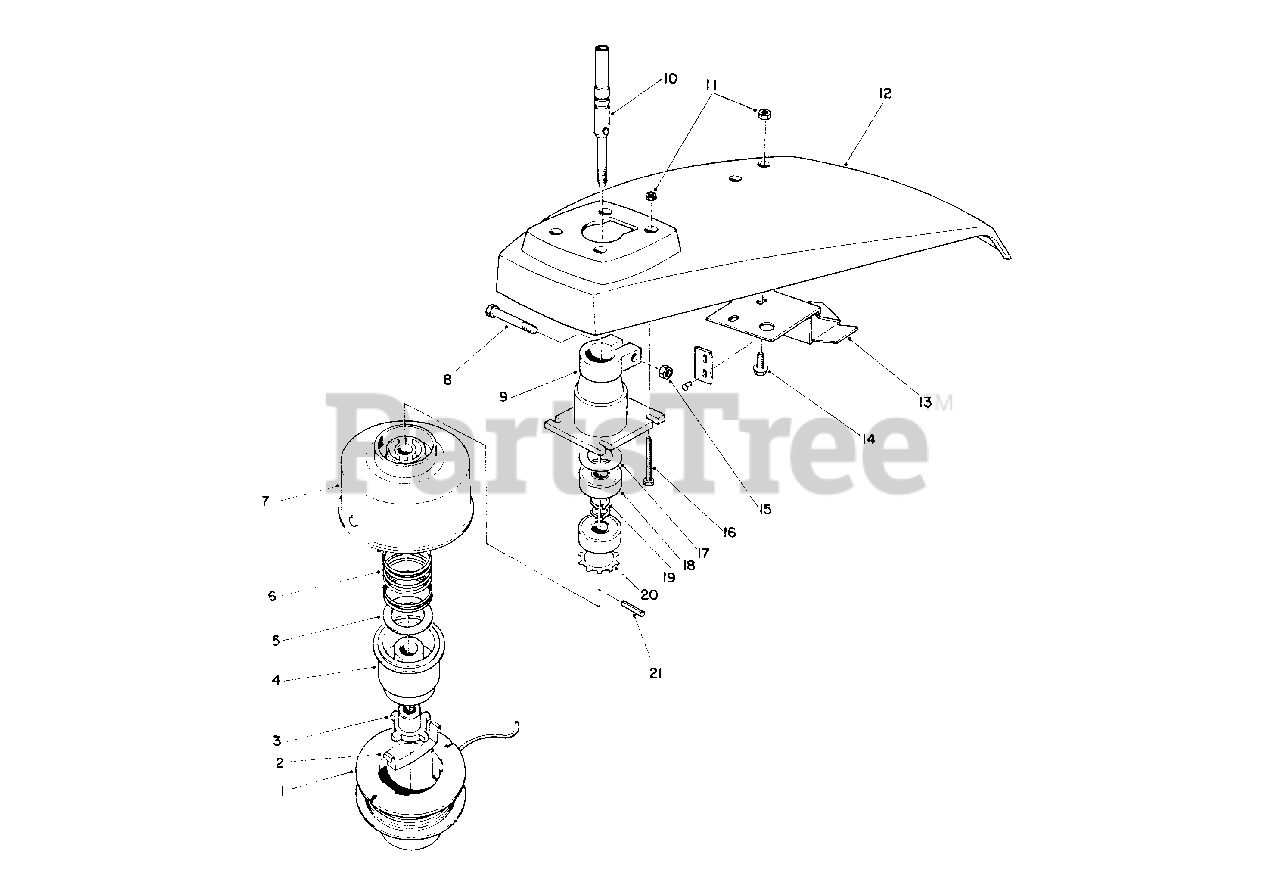

TRIMMER HEAD ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 42-5940

Spool & Line Assembly

$

$

Not available

2

Lawn-Boy 33-8940

Saddle-Spool Cap

$

$

Not available

3

$27.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 33-6230

Spool Core

$

$

Not available

5

$1.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 29-7130

Spring-Compression

$9.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 42-5950

Drum & Eyelet Assembly

$69.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 321-9

Hex Hd. Capscrew

$4.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 42-5931

Housing-Bearing (Incl. Ref. #10, 17-21)

$

$

Not available

10

Shaft-Power

$

$

Not available

11

Lawn-Boy 3296-2

Locknut

$2.49

$

In Stock, Qty 20+

0

12

$

$

Not available

13

Lawn-Boy 42-5920

Bracket & Knife Blade

$

$

Not available

14

Lawn-Boy 3290-321

Hex Washer Hd. Mach. Screw

$4.49

$

Usually ships in 3-6 days

0

15

$0.99

$

In Stock, Qty 10

0

16

Lawn-Boy 3290-360

Hex Hd. Machine Screw

$5.49

$

Usually ships in 3-6 days

0

17

Washer

$

$

Not available

18

Ball Bearing

$

$

Not available

19

Snap Ring

$

$

Not available

20

Grip-Spring

$

$

Not available

21

Lawn-Boy 32121-95

Coil Pin
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

Lawn-Boy 43-5000

.080 Line (38 Ft.)(Optional)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 46-2710

.080 Line (1 Lb.-400 Ft.)(Optional)

Note: Not Illustrated

$

$

Not available
