51628 (TC 1800) - Lawn-Boy String Trimmer (SN: 009000001 - 009999999) (1989) CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

String Trimmer

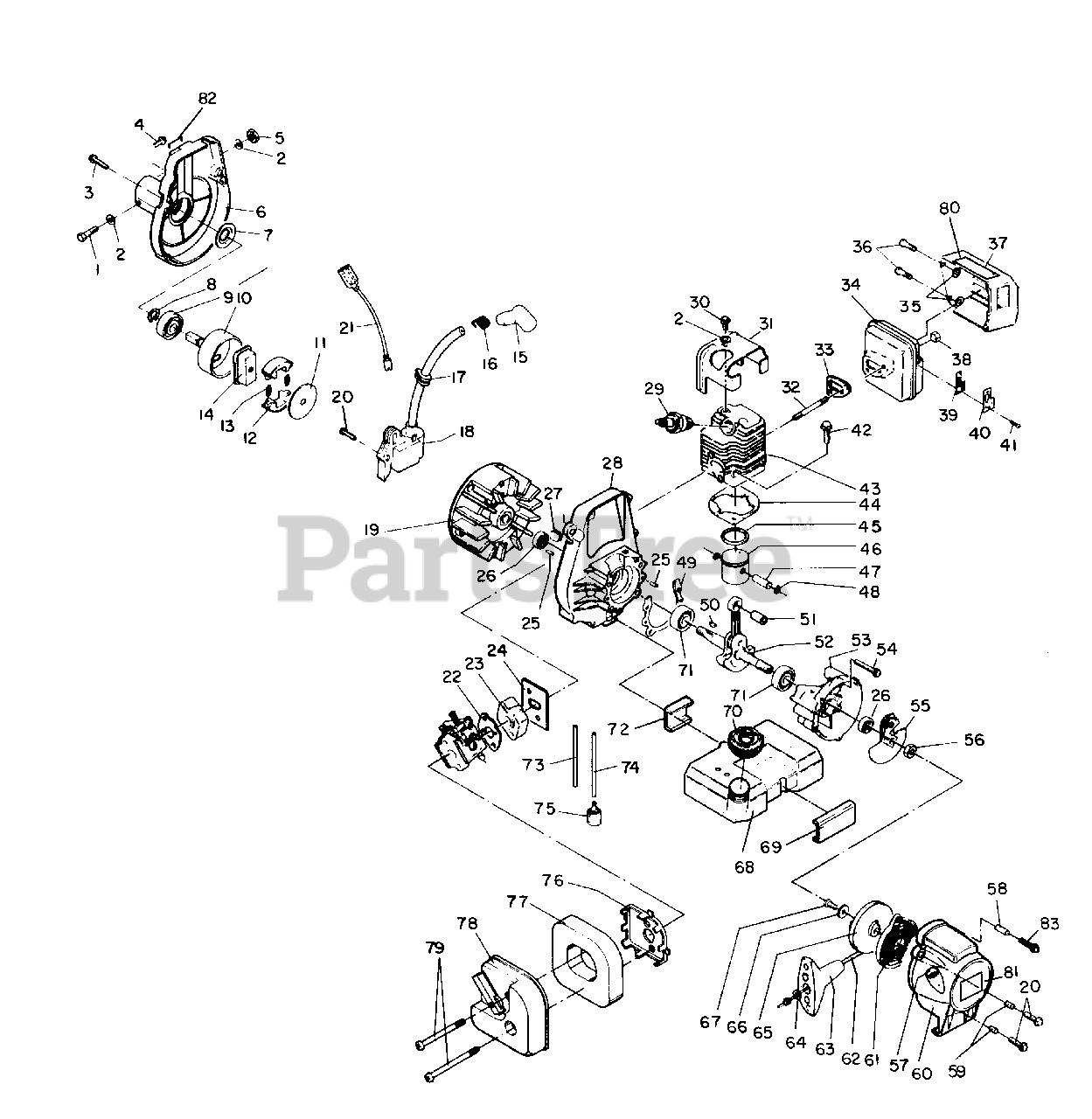

CRANKSHAFT & CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 72-0550

Screw-Engine Clamp

$

$

Not available

2

Lawn-Boy 72-0570

Washer-Flat

$

$

Not available

3

Lawn-Boy 72-0610

Screw-Rotor

$

$

Not available

4

Lawn-Boy 72-0580

Screw-Jams

$

$

Not available

5

Lawn-Boy 72-0560

Nut-Engine Clamp

$

$

Not available

6

Lawn-Boy 72-0620

Housing-Fan

$

$

Not available

7

Lawn-Boy 72-0630

Plate-Thrust

$

$

Not available

8

Lawn-Boy 72-0640

Ring-Retaining

$

$

Not available

9

Lawn-Boy 72-0650

Bearing-Ball

$

$

Not available

10

Lawn-Boy 72-0660

Clutch-Drum

$

$

Not available

11

Lawn-Boy 72-0700

Plate-Side

$

$

Not available

12

Lawn-Boy 72-0690

Clutch-Shoe

$

$

Not available

13

Lawn-Boy 72-0680

Spring

$

$

Not available

14

Lawn-Boy 72-0670

Rotor

$

$

Not available

15

Lawn-Boy 72-0760

Boot-Spark Plug

$

$

Not available

16

Lawn-Boy 72-0750

Connector-Spark

$

$

Not available

17

Lawn-Boy 72-0740

Grommet

$

$

Not available

18

Lawn-Boy 72-0730

Coil

$

$

Not available

19

Lawn-Boy 72-0770

Flywheel

$

$

Not available

20

Lawn-Boy 72-0720

Screw-Coil

$

$

Not available

21

Lawn-Boy 72-0710

Wire Assembly-Switch

$

$

Not available

22

Lawn-Boy 72-1330

Gasket-Carburetor

$

$

Not available

23

Lawn-Boy 72-1320

Insulator-Carburetor

$

$

Not available

24

Lawn-Boy 72-1310

Gasket-Insulator

$

$

Not available

25

Lawn-Boy 72-0800

Pin-Dowel

$

$

Not available

26

Lawn-Boy 72-0860

Seal-Crankshaft

$

$

Not available

27

Lawn-Boy 72-0780

Grommet

$

$

Not available

28

Lawn-Boy 72-0790

Crankcase Assembly (Incl.Ref. #53)

$

$

Not available

29

Lawn-Boy 72-0950

Spark Plug

$

$

Not available

30

Lawn-Boy 72-0960

Screw

$

$

Not available

31

Lawn-Boy 72-0970

Cover-Cylinder

$

$

Not available

32

Lawn-Boy 72-0980

Stud-Muffler

$

$

Not available

33

Lawn-Boy 72-0990

Gasket-Muffler

$

$

Not available

34

Lawn-Boy 72-1000

Muffler Assembly

$

$

Not available

35

Lawn-Boy 72-1020

Spacer-Heat Shield

$

$

Not available

36

Lawn-Boy 72-1010

Screw

$

$

Not available

37

Lawn-Boy 72-1030

Shield-Heat

$

$

Not available

38

Lawn-Boy 72-1040

Nut-Muffler

$

$

Not available

39

Lawn-Boy 72-0590

Screen-Spark Arrester

$

$

Not available

40

Lawn-Boy 72-1060

Cover-Screen

$

$

Not available

41

Lawn-Boy 72-1070

Screw

$

$

Not available

42

Lawn-Boy 72-0940

Screw-Cylinder

$

$

Not available

43

Lawn-Boy 72-0930

Cylinder

$

$

Not available

44

Lawn-Boy 72-0920

Gasket-Cylinder

$

$

Not available

45

Lawn-Boy 72-0910

Ring-Piston

$

$

Not available

46

Lawn-Boy 72-0900

Piston

$

$

Not available

47

Lawn-Boy 72-0890

Pin-Wrist

$

$

Not available

48

Lawn-Boy 72-0880

Ring-Snap

$

$

Not available

49

Lawn-Boy 72-0810

Gasket-Crankcase

$

$

Not available

50

Lawn-Boy 72-0830

Key-Flywheel

$

$

Not available

51

Lawn-Boy 72-0820

Bearing-Needle

$

$

Not available

52

Lawn-Boy 72-0850

Crankshaft/Con. Rod Ass'y

$

$

Not available

53

Lawn-Boy 72-0790

Crankcase (Incl. Ref. #28)

$

$

Not available

54

Lawn-Boy 72-0870

Screw

$

$

Not available

55

Lawn-Boy 72-1080

Ratchet Ass'y-Recoil

$

$

Not available

56

Lawn-Boy 72-1090

Nut-Hex

$

$

Not available

57

Lawn-Boy 72-1200

Guide-Rope

$

$

Not available

58

Lawn-Boy 72-1190

Spacer-Heat Shield

$

$

Not available

59

Lawn-Boy 72-1220

Spacer-Recoil

$

$

Not available

60

Lawn-Boy 72-1170

Housing-Recoil (Incl. Ref. #57)

$

$

Not available

61

Lawn-Boy 72-1160

Spring-Recoil

$

$

Not available

62

Lawn-Boy 72-1150

Rope-Recoil

$

$

Not available

63

Lawn-Boy 72-1140

Handle-Recoil

$

$

Not available

64

Lawn-Boy 72-1130

Washer-Recoil Rope

$

$

Not available

65

Lawn-Boy 72-1120

Pulley

$

$

Not available

66

Lawn-Boy 72-1110

Washer-Flat

$

$

Not available

67

Lawn-Boy 72-1100

Screw

$

$

Not available

68

Lawn-Boy 72-1240

Tank Assembly (Incl. Ref. #73-75)

$

$

Not available

69

Lawn-Boy 72-1230

Pad-Fuel Tank

$

$

Not available

70

Lawn-Boy 72-1260

Cap-Fuel

$

$

Not available

71

Lawn-Boy 72-0840

Bearing-Main Ball

$

$

Not available

72

Lawn-Boy 72-1270

Pad-Fuel Tank

$

$

Not available

73

Lawn-Boy 72-1290

Hose-Fuel Return

$

$

Not available

74

Lawn-Boy 72-1280

Hose-Fuel Carb.

$

$

Not available

75

Lawn-Boy 72-1300

Filter-Fuel

$

$

Not available

76

Lawn-Boy 72-1340

Box-Air Cleaner

$

$

Not available

77

Lawn-Boy 72-1350

Filter-Air (Foam)

$

$

Not available

78

Lawn-Boy 72-1360

Cover-Choke

$

$

Not available

79

Lawn-Boy 72-1370

Screw-Choke Lever

$

$

Not available

80

Lawn-Boy 63-8440

Decal-Hot

$

$

Not available

81

Lawn-Boy 68-5370

Decal-Toro

$8.49

$

Usually ships in 3-6 days

0

82

Lawn-Boy 65-2690

Decal-Hot

$5.49

$

In Stock, only 4 left!

0

83

Lawn-Boy 72-1180

Screw

$

$

Not available

Lawn-Boy 72-1400

Clutch Assembly (Incl. Ref. #12-14)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 72-1410

Tank Assembly (Incl. Ref. #24, 73, & 75)

Note: Not Illustrated

$

$

Currently unavailable
