51625 - Toro String Trimmer (SN: 009000001 - 009999999) (1979) SHROUD ASSEMBLY Parts Diagram

String Trimmer

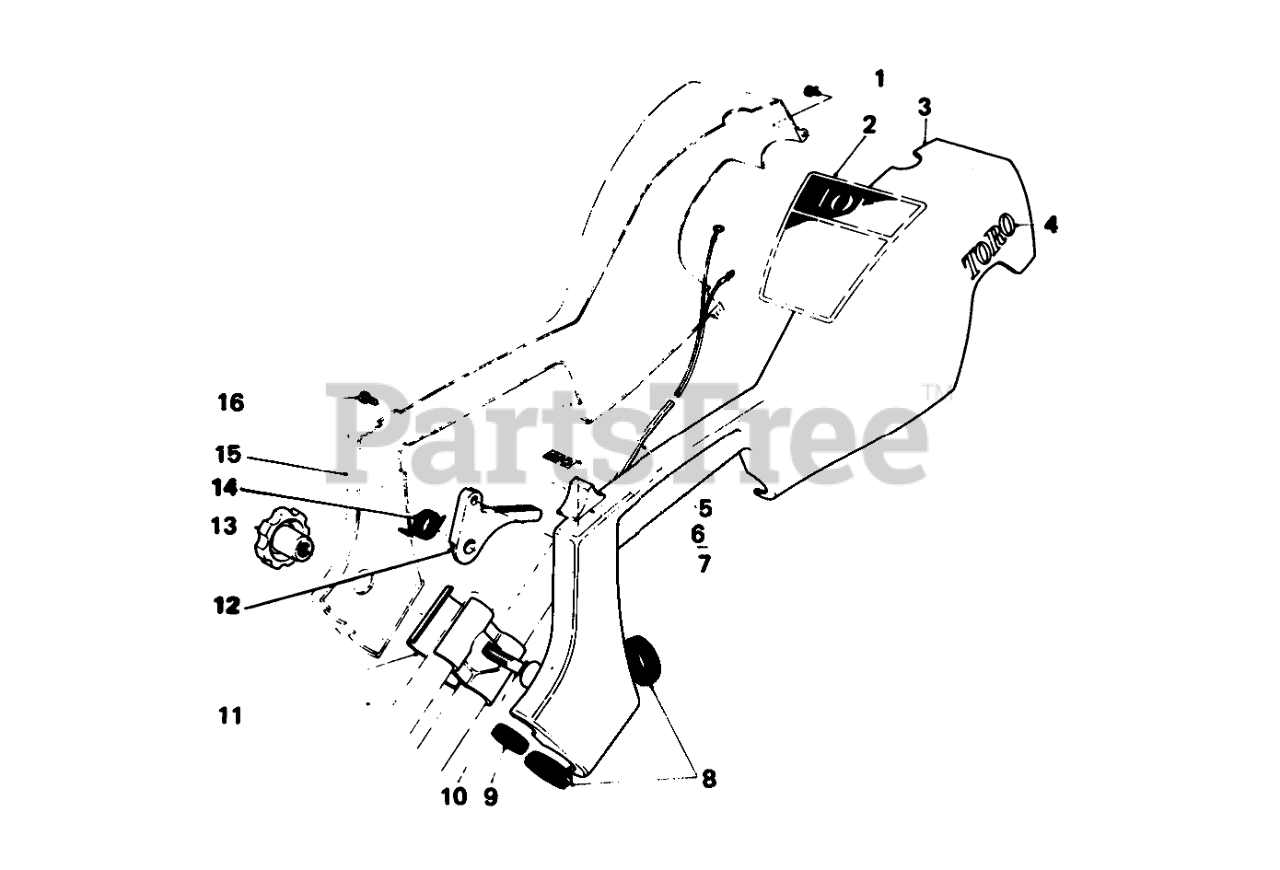

SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-119

Screw

$

$

Not available

2

Toro 33-8450

Toro Decal Trimmer/Weeder

$

$

Not available

3

Toro 33-6870

Engine Housing L.H.

$

$

Not available

4

Toro 33-6780

DECAL - TORO

$

$

Not available

5

Toro 33-6980

Wiring Harness

$

$

Not available

6

Toro 33-8480

Decal Kill Switch

$

$

Not available

7

Toro 218-507

SWITCH COVER-BLACK

$

$

Not available

8

Toro 237-125

GROMMET

$6.99

$

Usually ships in 3-6 days

0

9

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

10

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

11

Toro 33-7010

Brkt.-Handle Support

$

$

Not available

12

Toro 33-7000

Throttle Lever

$

$

Not available

13

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

14

Toro 33-6970

Spring Torsion

$

$

Not available

15

Toro 33-6880

Engine Housing R.H.

$

$

Not available

16

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0
