51625 - Toro String Trimmer (SN: 009000001 - 009999999) (1979) FUEL TANK ASSEMBLY Parts Diagram

String Trimmer

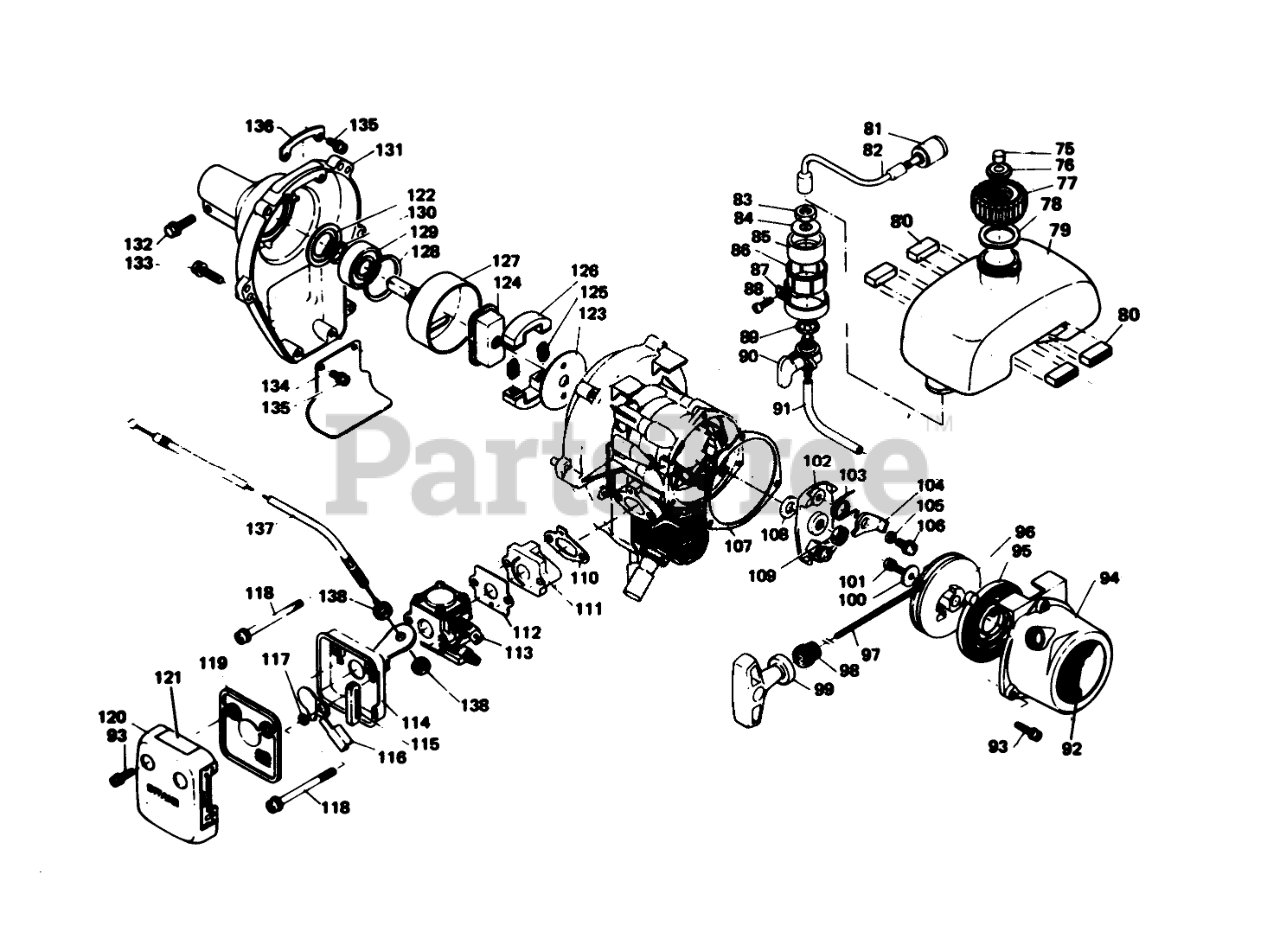

FUEL TANK ASSEMBLY Parts Diagram

  • Title

75

Toro 41-1700

Filter

$

$

Not available

76

Toro 41-1690

Check Valve
(Superseded to 43-9940)

$

$

Not available

77

Toro 41-8030

Cap, Fuel Tank
(Superseded to 43-9940)

$

$

Not available

78

Toro 41-8010

Gasket-Fuel Tank Cap
(Superseded to 41-1600)

$

$

Not available

79

Toro 34-7170

Fuel Tank

$

$

Not available

80

Toro 34-7300

Cushion

$

$

Not available

81

Toro 34-7260

Fuel Strainer
(Superseded to 43-9660)

$

$

Not available

82

Toro 34-7330

Fuel Pipe

$

$

Not available

83

Toro 41-5390

NUT

$

$

Not available

84

Toro 34-7360

WASHER

$

$

Not available

85

Toro 34-7400

SEAL

$

$

Not available

86

Toro 34-7390

COLLAR

$

$

Not available

87

Toro 34-7410

CLAMP

$

$

Not available

88

Toro 34-8450

SCREW

$

$

Not available

89

Toro 34-7370

GASKET

$

$

Not available

90

Toro 34-7350

FUEL VALVE ASM

$

$

Not available

91

Toro 34-7340

FUEL PIPE

$

$

Not available

92

Toro 33-8340

Decal

$

$

Not available

93

Toro 41-5170

SCREW

$

$

Not available

94

Toro 34-7850

Starter Case

$

$

Not available

95

Toro 34-7900

REWIND SPRING

$

$

Not available

96

Toro 34-7880

RECOIL DRUM

$

$

Not available

97

Toro 34-7910

Rope-Starter
(Superseded to 65-3270)

$

$

Not available

98

Toro 41-3060

Rope Guide
(Superseded to 46-3870)

$

$

Not available

99

Toro 34-7930

Starter Handle

$

$

Not available

100

Toro 41-2920

Washer

$

$

Not available

101

Toro 41-5150

Screw

$

$

Not available

102

Toro 34-7860

PAWL CATCHER

$

$

Not available

103

Toro 34-7950

Ratchet Spring

$

$

Not available

104

Toro 34-7890

RATCHET

$

$

Not available

105

Toro 41-3240

RATCHET SPACER

$

$

Not available

106

Toro 41-5190

SCREW

$

$

Not available

107

Toro 34-6600

STARTER CASE GASKET

$

$

Not available

108

Toro 34-6520

Spacer

$

$

Not available

109

Toro 41-5430

Washer

$

$

Not available

110

Toro 34-7020

GASKET

$

$

Not available

111

Toro 34-7050

Insulator

$

$

Not available

112

Toro 34-7030

GASKET

$

$

Not available

113

Toro 34-6680

Carburetor Assy.

$

$

Not available

114

Toro 34-7070

Case Air Cleaner

$

$

Not available

115

Toro 41-3660

GROMMET

$

$

Not available

116

Toro 41-3600

Choke Shutter

$

$

Not available

117

Toro 41-3610

CHOKE SHUTTER SPACER

$

$

Not available

118

Toro 34-8500

Screw

$

$

Not available

119

Toro 41-1440

AIR FILTER

$

$

Not available

120

Toro 41-1480

AIR CLEANER COVER

$

$

Not available

121

Toro 33-8490

Decal, Fuel Valve

$

$

Not available

122

Toro 34-7810

Stopper

$

$

Not available

123

Toro 34-7800

Side Plate, Clutch

$

$

Not available

124

Toro 34-7770

Clutch Boss

$

$

Not available

125

Toro 34-7790

Clutch Spring

$

$

Not available

126

Toro 41-2710

CLUTCH SHOE

$

$

Not available

127

Toro 34-7750

Clutch Drum

$

$

Not available

128

Toro 41-5580

Circlip

$

$

Not available

129

Toro 34-8770

Ball Bearing

$

$

Not available

130

Toro 41-5550

Circlip

$

$

Not available

131

Toro 34-6650

Fan Cover

$

$

Not available

132

Toro 34-8410

Bolt

$

$

Not available

133

Toro 41-5230

Screw

$

$

Not available

134

Toro 34-8120

Bracket

$

$

Not available

135

Toro 41-5160

SCREW

$

$

Not available

136

Toro 34-6590

Plug

$

$

Not available

137

Toro 33-8360

Throttle Cable

$

$

Not available

138

Toro 32116-1

Nut

$

$

Not available

Toro 41-7990

Cap Assy., Fuel Tank (Incl. Ref. #75-78)
(Superseded to 43-9940)

Note: Not illustrated

$

$

Not available

Toro 34-7830

Recoil Starter Assy.

Note: Not illustrated

$

$

Not available
