51625 - Toro String Trimmer (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

String Trimmer

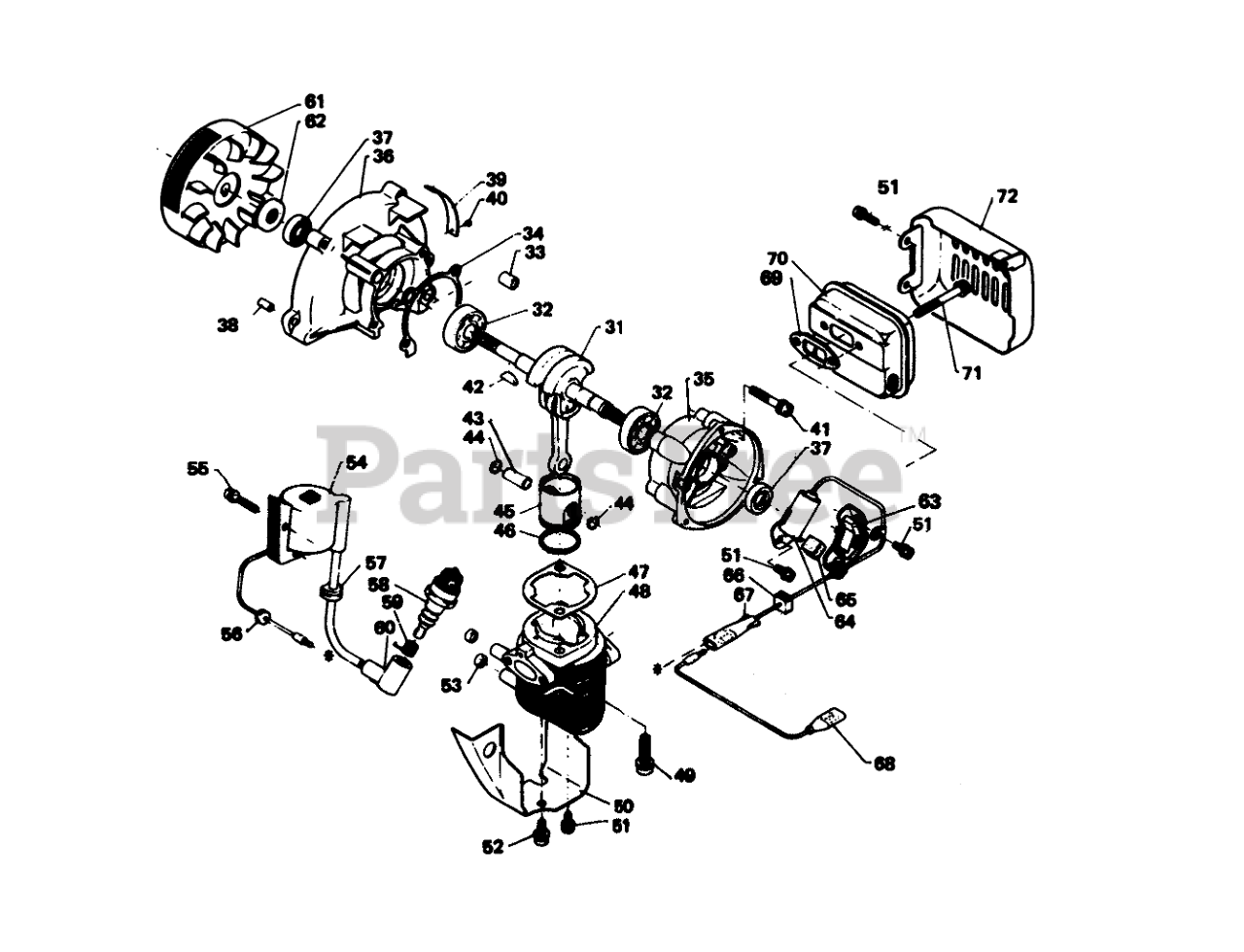

ENGINE ASSEMBLY Parts Diagram

  • Title

31

Toro 34-6490

Crank Shaft Assy.

$

$

Not available

32

Toro 34-8760

Bearing

$

$

Not available

33

Toro 34-6570

Knock Pin

$

$

Not available

34

Toro 34-6580

Gasket, Crankcase

$

$

Not available

35

Toro 34-6530

Crankcase Set

$

$

Not available

36

Toro 344530

Crankcase Set

$

$

Currently unavailable

37

Toro 34-6540

Oil Seal

$

$

Not available

38

Toro 414320

Knockpin

$

$

Currently unavailable

39

Toro 34-8280

Model Plate

$

$

Currently unavailable

40

Toro 34-8260

Rivet

$

$

Currently unavailable

41

Toro 41-5260

SCREW

$

$

Not available

42

Toro 34-6510

Woodruff Key

$

$

Not available

43

Toro 34-6440

Piston Pin

$

$

Not available

44

Toro 41-0160

Circlip, Piston Pin

$

$

Not available

45

Toro 34-6420

Piston

$

$

Not available

46

Toro 34-6430

PISTON RING

$

$

Not available

47

Toro 34-6610

Gasket, Cylinder Base

$

$

Not available

48

Toro 34

6630 Cylinder

$

$

Currently unavailable

49

Toro 34-8620

Screw

$

$

Not available

50

Toro 34-6670

Cylinder Cover

$

$

Not available

51

Toro 41-5160

SCREW

$

$

Not available

52

Toro 41-5190

SCREW

$

$

Not available

53

Toro 34-7570

Spacer

$

$

Not available

54

Toro 34-7610

Ignition Coil

$

$

Not available

55

Toro 34-8560

Screw

$

$

Not available

56

Toro 34-7560

Grommet

$

$

Not available

57

Toro 34-7540

Grommet

$

$

Not available

58

Toro 41-2500

Spark Plug
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

59

Toro 41-2510

Coil Spring-Plug Cap

$

$

Not available

60

Toro 41-2520

Cap-Spark Plug

$

$

Not available

61

Toro 34-7670

Flywheel

$

$

Not available

62

Toro 34-6500

Spacer

$

$

Not available

63

Toro 34-7520

POINT SET

$121.99

$

Usually ships in 3-6 days

0

64

Toro 34-7580

CONDENSER

$

$

Not available

65

Toro 41-2480

Oiler

$

$

Not available

66

Toro 34-7550

Grommet

$

$

Not available

67

Toro 34-7590

Primary Cord

$

$

Not available

68

Toro 34-7630

Ground Lead

$

$

Not available

69

Toro 34-7420

Gasket, Muffler

$

$

Not available

70

Toro 34-7440

Muffler

$

$

Not available

71

Toro 34-8600

Screw

$

$

Not available

72

Toro 34-7480

Muffler Cover

$

$

Not available
