51625 - Toro String Trimmer (SN: 009000001 - 009999999) (1979) CUTTER HEAD ASSEMBLY Parts Diagram

String Trimmer

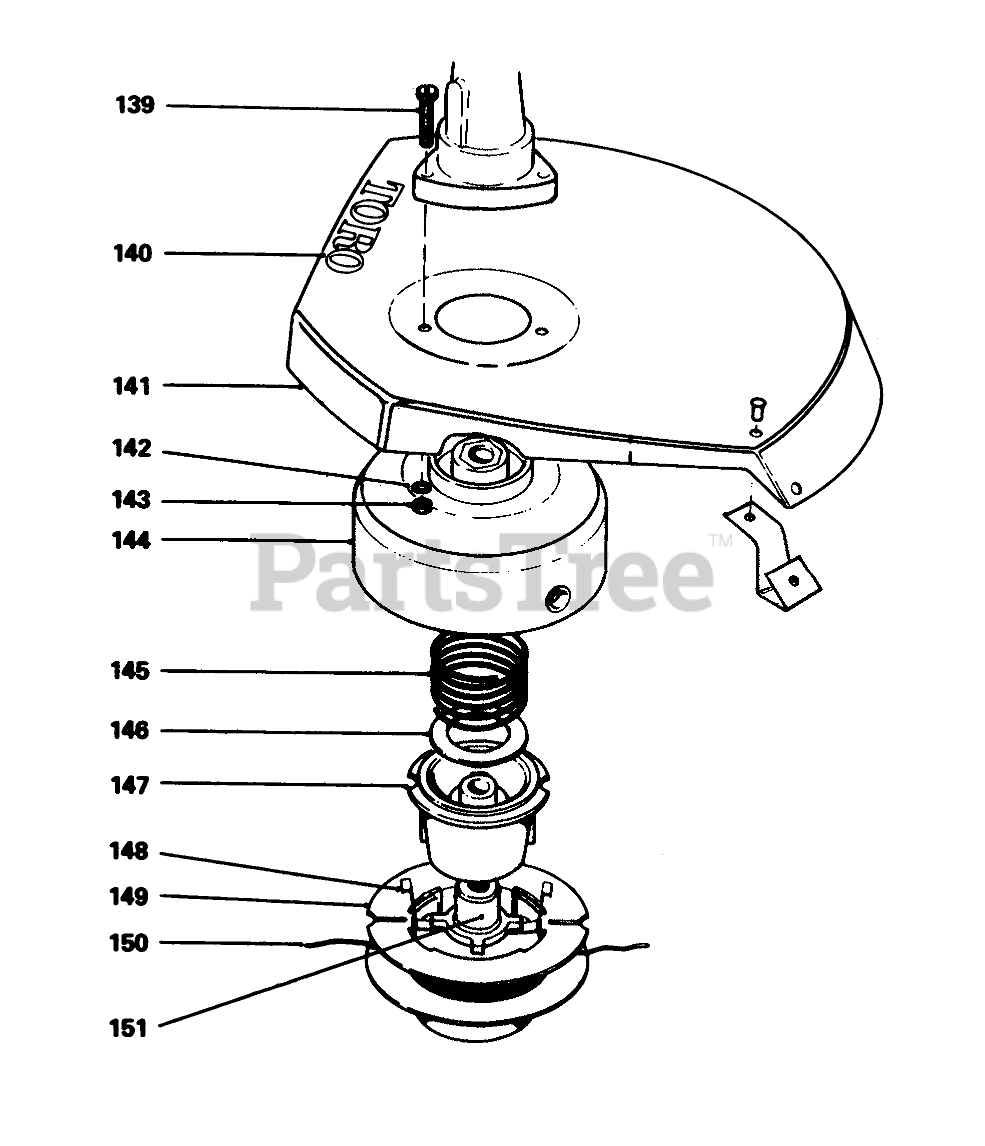

CUTTER HEAD ASSEMBLY Parts Diagram

  • Title
139

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

140

Toro 33-8410

Decal, Toro

$

$

Not available

141

Toro 33-6480

Shield w/cut-off Blade

$

$

Not available

142

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

143

Toro 3217-25

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

144

Toro 33-6290

Drum w/eyelet

$

$

Not available

145

Toro 33-6460

SPRING

$14.99

$

In Stock, only 2 left!

0

146

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

147

Toro 33-6230

SPOOL CORE

$

$

Not available

148

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

149

Toro 29-7380

Empty SPooI
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

150

Toro 33-7910

50-Coil.065" Cutting Line
(Superseded to 88003)

$

$

Not available

151

Toro 33-6470

LH DRIVER

$

$

Not available

Toro 33-7950

Prewound Spool (Incl.Ref. No. 148-150)
(Superseded to 83-4630)

Note: Not illustrated

$59.99

$

Usually ships in 3-6 days

0

Toro 34-3590

Automatic Line Feed Assy.(Incl. Ref. No. 144-151)
(Superseded to 99-5392)

Note: Not illustrated

$

$

Not available
