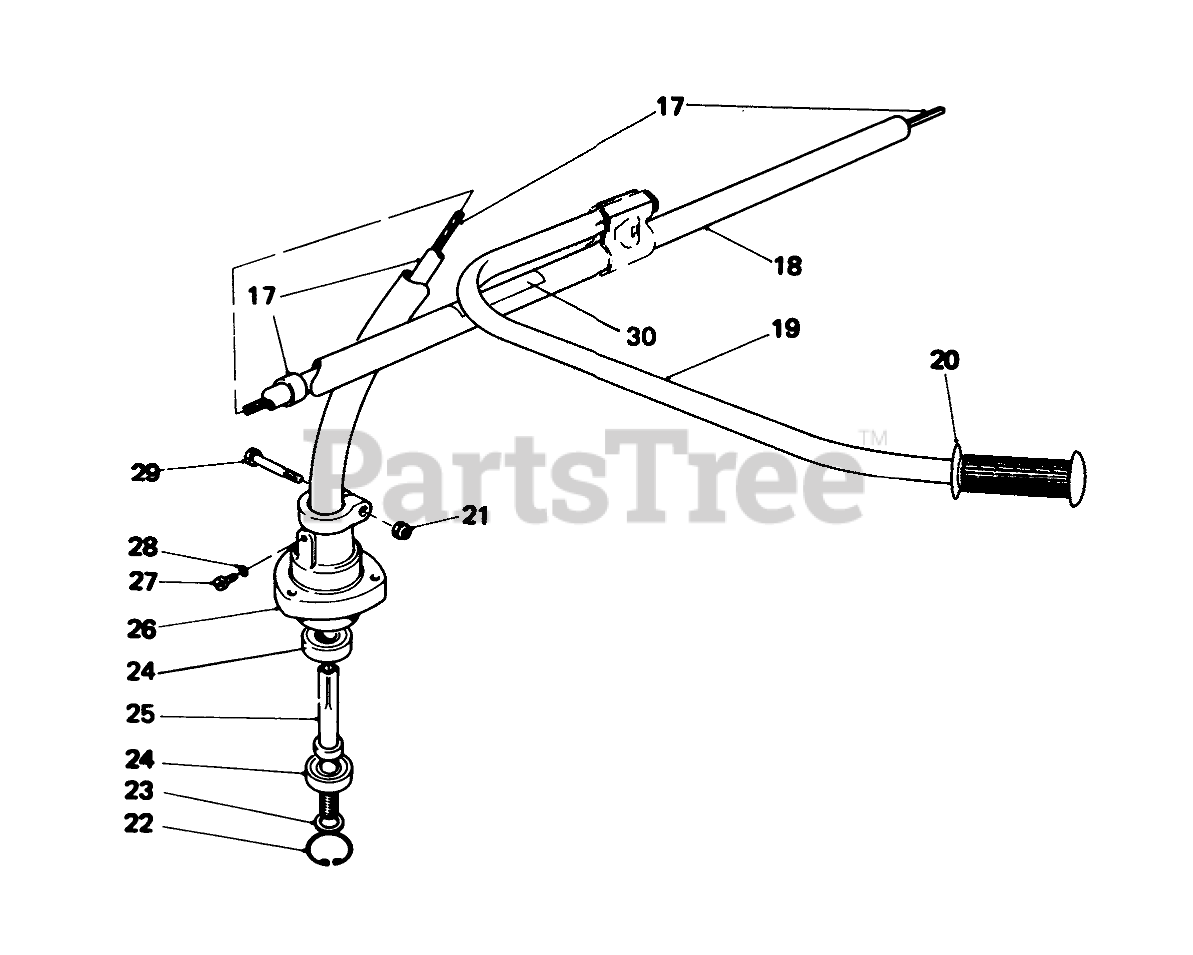

51625 - Toro String Trimmer (SN: 000000001 - 000999999) (1980) DRIVE SHAFT Parts Diagram

String Trimmer

DRIVE SHAFT Parts Diagram

  • Title
17

Toro 33-9830

Drive Shaft and Casing Assy.

$

$

Currently unavailable

18

Toro 33-6920

Tube-Shaft Housing

$

$

Not available

19

Toro 34-3680

Tube-Support Handle

$

$

Not available

20

Toro 33-8420

Grip-Support Handle

$

$

Not available

21

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

22

Toro 32151-60

RING-SNAP

$2.49

$

Usually ships in 3-6 days

0

23

Toro 33-6990

Bearing Spacer

$

$

Not available

24

Toro 251-280

Bearing

$

$

Not available

25

Toro 33-6940

POWER SHAFT

$

$

Not available

26

Toro 33-6890

Bearing Case

$

$

Not available

27

Toro 3250-16

Screw
(Superseded to 3250-19)

$2.49

$

Usually ships in 3-6 days

0

28

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

29

Toro 32105-1

SCREW-SHH

$3.49

$

In Stock, Qty 7

0

30

Toro 29-7400

Caution Decal

$

$

Not available
