51621 - Lawn-Boy Ultra Plus Blower Vacuum (SN: 315000001 - 315001021) (2015) Blower Tube and Impeller Assembly Parts Diagram

Ultra Plus Blower Vacuum

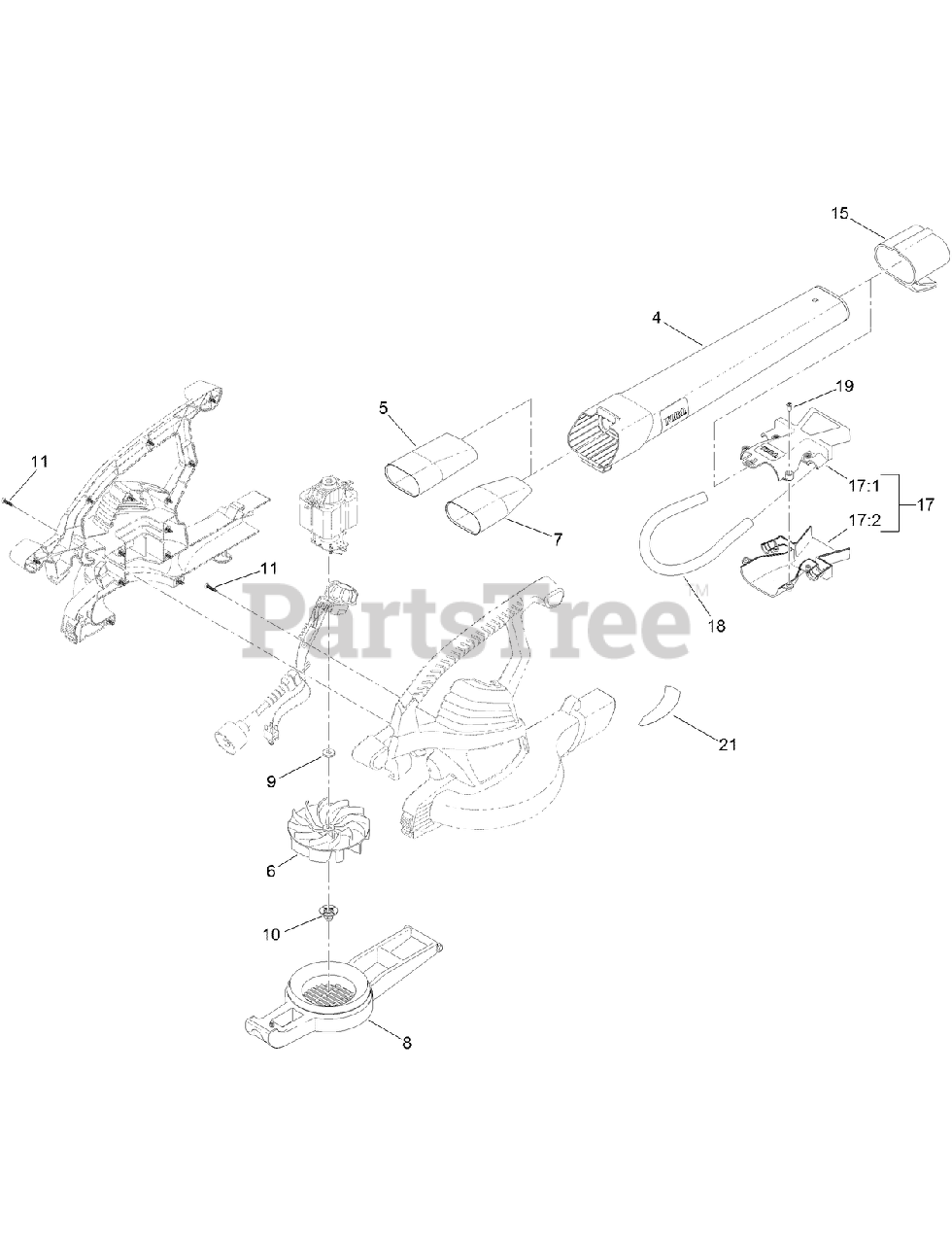

Blower Tube and Impeller Assembly Parts Diagram

  • Title

4

Lawn-Boy 119-9760

TUBE-BLOWER

$23.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 119-9766

TUBE-INSERT

$4.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 125-0549

See Supercession: 127-7092
(Superseded to 127-7092)

$30.99

$

In Stock, Qty 11

0

7

Lawn-Boy 127-2253

INSERT-TUBE, MPH

$3.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 108-8965

COVER-INLET

$13.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 110-7406

WASHER-IMPELLER

$1.49

$

In Stock, only 4 left!

0

10

Lawn-Boy 114-9015

NUT-IMPELLER

$2.99

$

In Stock, Qty 16

0

11

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 119-9765

ADAPTER-WRAP, CORD

$6.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 127-7015

OSCILLATOR HOUSING ASM

$17.99

$

Usually ships in 3-6 days

0

17:1

Lawn-Boy 127-7013

HOUSING-TOP, OSCILLATOR

$9.49

$

Usually ships in 3-6 days

0

17:2

Lawn-Boy 127-7014

HOUSING-BOTTOM, OSCILLATOR

$9.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 127-2272

TUBING-OSCILLATOR

$6.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 105-9437

SCREW-PPH

$0.99

$

In Stock, Qty 8

0

21

Lawn-Boy 127-7048

DECAL-SHREDDING

$2.49

$

Usually ships in 3-6 days

0
