51620 - Toro 31cc Curved Shaft Trimmer (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY MODEL NO. 51638 Parts Diagram

31cc Curved Shaft Trimmer

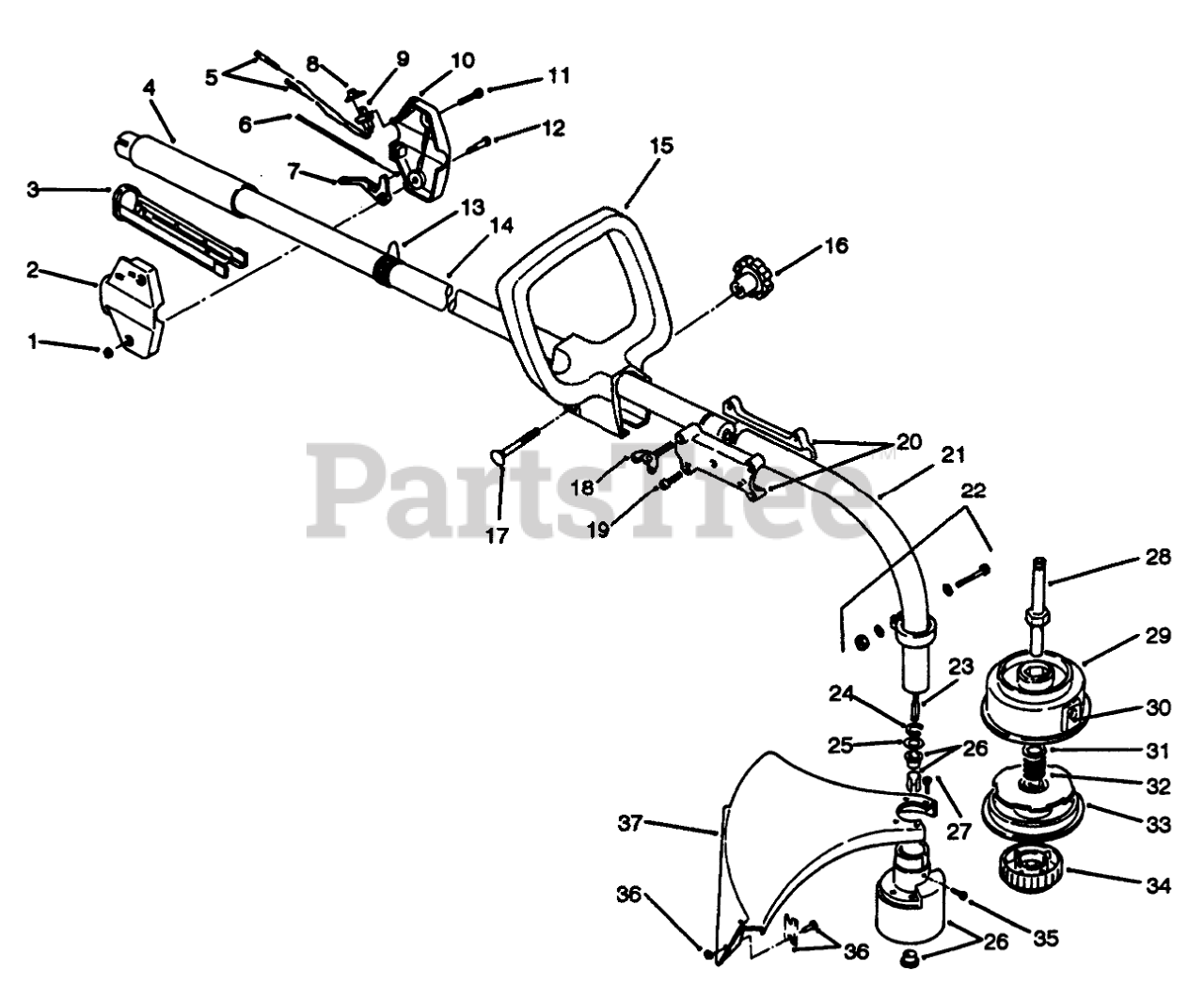

HANDLE ASSEMBLY MODEL NO. 51638 Parts Diagram

  • Title

1

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

2

Toro 57-5481

RH HOUSING

$

$

Not available

3

Toro 53-7290

TROUGH 1"

$

$

Not available

4

Toro 53-7120

GRIP - RUBBER

$

$

Not available

5

Toro 92-3275

LEAD WIRE ASM

$

$

Not available

6

Toro 92-3278

THROTTLE CABLE

$

$

Not available

7

Toro 53-7273

THROTTLE LEVER

$

$

Not available

8

Toro 218-557

SWITCH COVER

$

$

Not available

9

Toro 42-6000

SWITCH

$17.99

$

In Stock, Qty 10

0

10

Toro 57-5491

LH HOUSING

$

$

Not available

11

Toro 32105-12

SCREW

$2.99

$

In Stock, only 2 left!

0

12

Toro 57-5420

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

13

Tecumseh 610327

Clip-Shoulder Strap

$

$

Currently unavailable

14

Toro 92-3279

UPPER DRIVE HSG ASM

$

$

Not available

15

Toro 42-5550

HANDLE SECONDARY

$

$

Not available

16

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

17

Toro 3-7253

BOLT-CARRIAGE
(Superseded to 3230-6)

$1.49

$

In Stock, Qty 11

0

18

Toro 611716

Adjustment knob
(Superseded to 683607)

$

$

Not available

19

Toro 683074

COUPLING BOLT ASM

$

$

Not available

20

Toro 153671

Coupling-Split Boom

$

$

Not available

21

Toro 180129

LOWER DRIVE HSG ASM

$

$

Not available

22

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

23

Toro 682064

Drive Shaft
(Superseded to 92-3236)

$

$

Not available

24

Toro 145570

RETAINING RING

$11.99

$

Usually ships in 3-6 days

0

25

Toro 145567

WASHER

$

$

Not available

26

Toro 153312

BUSHING HSG ASM

$

$

Not available

27

Toro 180531

GUARD MTG SCREW ASM

$2.99

$

Usually ships in 3-6 days

0

28

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

29

Toro 153619

OUTER SPOOL EYELET ASM

$51.99

$

Usually ships in 3-6 days

0

30

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

31

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

32

Tecumseh 610318

REEL - INNER

$

$

Currently unavailable

33

Tecumseh 610317

SPRING

$

$

Currently unavailable

34

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

35

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

36

Toro 682061

Assy.-Blade (Incl. 2 Screws & 2 Nuts)

$23.99

$

In Stock, only 1 left!

0

37

Toro 92-3230

Assembly-Guard & Blade (Incl. Ref. No. 36)

$

$

Not available

Tecumseh 610375

LOOP LINE

Note: Not illustrated

$

$

Currently unavailable

Toro 153577

Assy-Spool & Line 30ft.
(Superseded to 88192)

Note: Not illustrated

$27.99

$

In Stock, only 3 left!

0

Toro 46-2951

Harness

Note: Not illustrated

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not illustrated

$

$

Not available

Toro 92-3240

Assembly-Cutting Head (Incl. Ref. No.22, & 24-37)

Note: Not illustrated

$243.99

$

Usually ships in 3-6 days

0
