51620 - Lawn-Boy 31cc Curved Shaft Trimmer (SN: 005900001 - 005999999) (1995) HANDLE ASSEMBLY MODEL NO. 51653 Parts Diagram

31cc Curved Shaft Trimmer

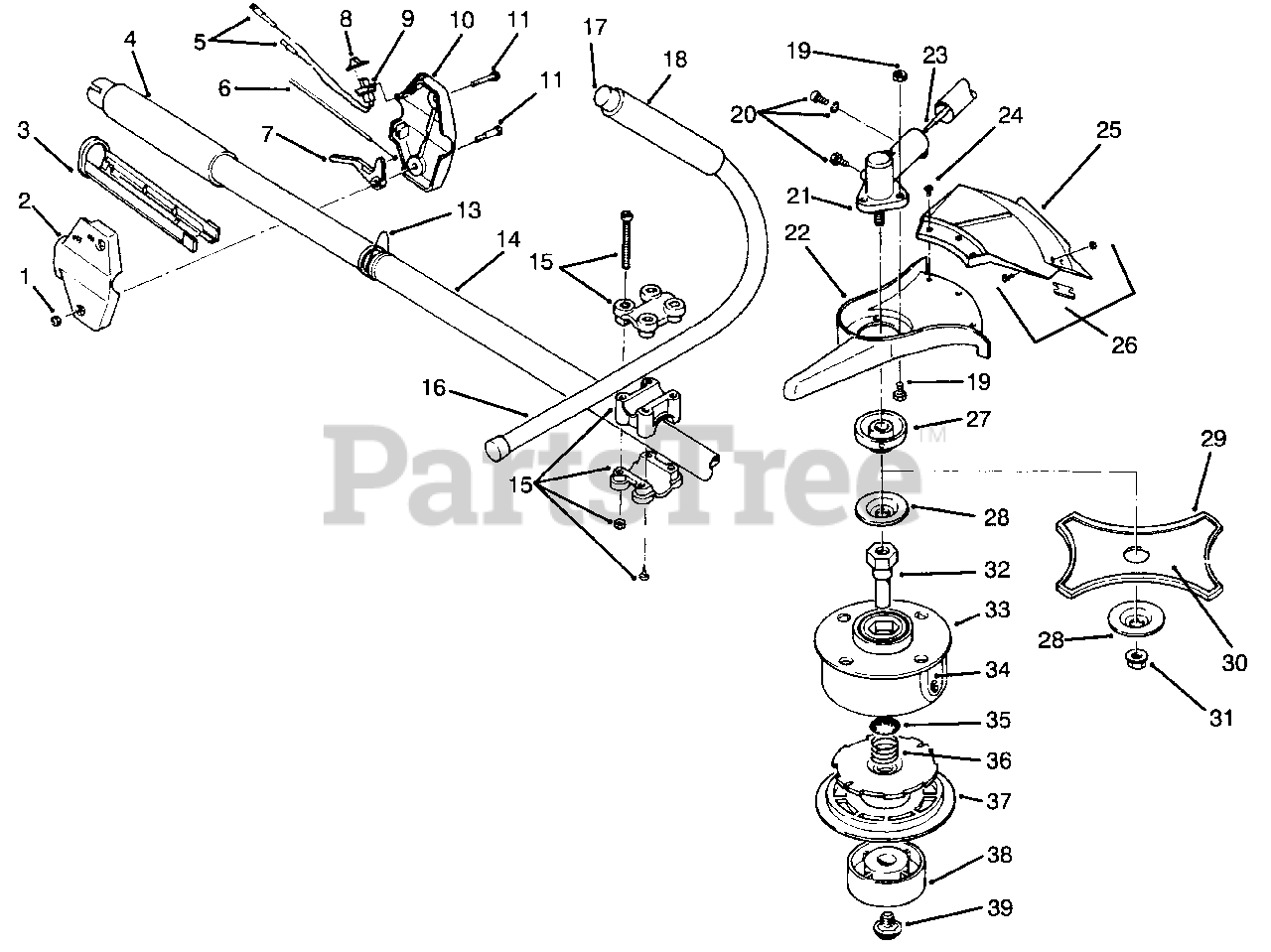

HANDLE ASSEMBLY MODEL NO. 51653 Parts Diagram

  • Title

1

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

2

Lawn-Boy 92-6516

Housing-R.H.

$

$

Not available

3

Lawn-Boy 53-7290

Trough

$

$

Not available

4

Lawn-Boy 53-7120

Grip

$

$

Not available

5

Lawn-Boy 92-3275

Assembly-Lead Wire

$

$

Not available

6

Lawn-Boy 92-3278

Cable-Throttle

$

$

Not available

7

Lawn-Boy 53-7270

Lever-Throttle

$

$

Not available

8

Lawn-Boy 218-557

Cap-Switch

$

$

Not available

9

Lawn-Boy 42-6000

Switch

$17.99

$

In Stock, Qty 10

0

10

Lawn-Boy 92-6515

Housing-L.H.

$

$

Not available

11

Lawn-Boy 32105-12

Screw-Hex. Hd.

$2.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 610327

Clamp-Shoulder Strap

$

$

Not available

14

Lawn-Boy 92-3280

Assembly-Upper Drive

$219.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 683295

Assy.-Bracket, Handle (Incl. 4 Screws & 4 Nuts)

$

$

Not available

16

Lawn-Boy 180286

Assy.-J-Handle (Incl. Ref. No.17 & 18)

$

$

Not available

17

Lawn-Boy 612021

Closure-Tube

$

$

Not available

18

Lawn-Boy 612831

Grip

$

$

Not available

19

Lawn-Boy 614204

Guard Mount Screws & Nuts
(Superseded to 147539)

$

$

Not available

20

Lawn-Boy 684502

Mount Hardware & Plug

$

$

Not available

21

Lawn-Boy 684501

Assembly-Gear Box (Incl. Ref. No. 27 & 28)
(Superseded to 147488)

$

$

Not available

22

Lawn-Boy 147492

Mount-Guard

$

$

Not available

23

Lawn-Boy 92-3236

Shaft-Flexible Drive

$

$

Not available

24

Lawn-Boy 683304

Screws-Guard Mount

$

$

Not available

25

Lawn-Boy 92-3237

Assy.-Guard & Blade (Incl. Ref. #26)

$

$

Not available

26

Lawn-Boy 682061

Assembly-Blade (Incl. 2 Screws & 2 Nuts)

$23.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 614200

Driver-Blade
(Superseded to 147489)

$37.92

$

In Stock, only 1 left!

0

28

Lawn-Boy 614201

Washer-Lower Retaining
(Superseded to 147490)

$14.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613231

Cover-Blade

$

$

Not available

30

Lawn-Boy 612031

Blade (Incl. Ref. No.29)

$

$

Not available

31

Lawn-Boy 613221

Nut-Lock

$

$

Not available

32

Lawn-Boy 612483

Shaft-Spool

$40.16

$

In Stock, only 1 left!

0

33

Lawn-Boy 147494

Assy.-Outer Spool & Eyelet
(Superseded to 683301)

$

$

Not available

34

Lawn-Boy 145566

Eyelet

$16.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 612026

Retainer (10 Pack)

$

$

Not available

36

Lawn-Boy 610636

Spring

$

$

Not available

37

Lawn-Boy 147495

Reel-Inner

$

$

Not available

38

Lawn-Boy 147496

Assy.-Bump Head Knob
(Superseded to 180814)

$

$

Not available

39

Lawn-Boy 612486

Bolt-Bump Head
(Superseded to 180814)

$

$

Not available

Lawn-Boy 92-3288

Spool & 40 ft. Line (Dual).
(Superseded to 92-3251)

Note: Not Illustrated

$54.99

$

Usually ships in 3-6 days

0

Lawn-Boy 41-6820

Monoflail Cutting Line (285 ft 1 lb. Optional)

Note: Not Illustrated

$42.99

$

Usually ships in 3-6 days

0

Lawn-Boy 682075

Shoulder Strap

Note: Not Illustrated

$

$

Not available

Lawn-Boy 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated

$

$

Not available

Lawn-Boy 613226

Tool-Locking Rod

Note: Not Illustrated

$

$

Not available

Lawn-Boy 147498

Assembly-Cutting Head (Incl. Ref. No.32-39)

Note: Not Illustrated

$

$

Not available
