51620 - Lawn-Boy 31cc Curved Shaft Trimmer (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY MODEL NO. 51620 Parts Diagram

31cc Curved Shaft Trimmer

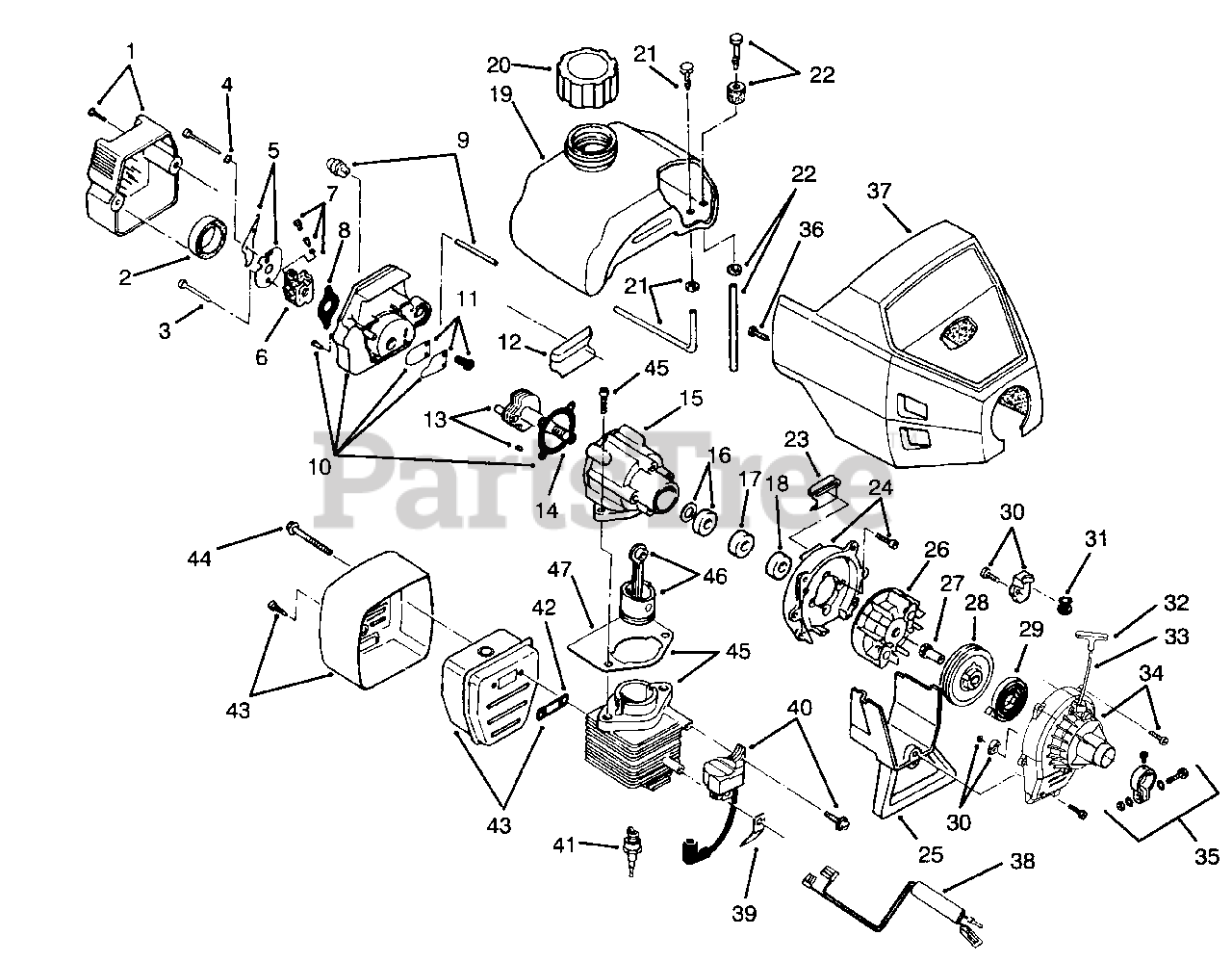

ENGINE ASSEMBLY MODEL NO. 51620 Parts Diagram

  • Title
1

Lawn-Boy 92-3200

Assy.-Carburetor/Air Clean. (Inc. Ref. No.2)

$46.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-3201

Filter-Air Cleaner

$

$

Not available

3

Lawn-Boy 92-3202

Screw-Carburetor

$

$

Not available

4

Lawn-Boy 92-3203

Washer-Wave

$

$

Not available

5

Lawn-Boy 92-3204

Choke-Lever and Plate

$

$

Not available

6

Lawn-Boy 180527

Assembly-Carburetor
(Superseded to 181621)

$

$

Not available

7

Lawn-Boy 682048

Throttle Adj.-Walbro

$

$

Not available

8

Lawn-Boy 610675

Gasket-Carb. (10 Pack)

$6.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 683974

Assy.-Primer and Hose

$

$

Not available

10

Lawn-Boy 92-3206

Assembly-Carb. Mount (Incl. Ref. 11 & 12)

$

$

Not available

11

Lawn-Boy 684195

Assembly-Reed

$

$

Not available

12

Lawn-Boy 612134

Pad-Mounting, Rear

$

$

Not available

13

Lawn-Boy 92-3216

Assembly-Power Shaft

$

$

Not available

14

Lawn-Boy 612115

Gasket (10 Pack)

$

$

Not available

15

Lawn-Boy 92-3205

Assy.-Crankcase (Incl. Ref. No.14-18)

$

$

Not available

16

Lawn-Boy 682041

Assembly-Inner Bearing

$

$

Not available

17

$

$

Not available

18

Lawn-Boy 610308

Assembly-Outer Bearing

$

$

Not available

19

Lawn-Boy 92-3234

Assembly-Fuel Tank (Incl. Ref. No.20-22)

$

$

Not available

20

Lawn-Boy 92-3215

Assembly-Fuel Cap

$

$

Not available

21

Lawn-Boy 683976

Assembly-Return Line

$

$

Not available

22

Lawn-Boy 682039

Assembly-Fuel Line

$

$

Not available

23

Lawn-Boy 145308

Pad-Mounting, Front

$

$

Not available

24

Lawn-Boy 683065

Assembly-Shroud

$74.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 683078

Shroud Extension & Stand
(Superseded to 153403)

$50.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 153624

Assembly-Flywheel
(Superseded to 180929)

$

$

Not available

27

Lawn-Boy 610303

Square Nut Drive

$

$

Not available

28

Lawn-Boy 683856

Assembly-Recoil Pulley

$

$

Not available

29

Lawn-Boy 613102

Spring-Recoil

$23.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 682546

Assembly-Pulley Retainer
(Superseded to 153644)

$

$

Not available

31

Lawn-Boy 611061

Guide-Rope

$

$

Not available

32

Lawn-Boy 610300

Handle-Pull
(Superseded to 181079)

$15.99

$

Usually ships in 3-6 days

0

33

$

$

Not available

34

Lawn-Boy 683064

Assembly-Starter Housing

$

$

Not available

35

Lawn-Boy 153597

Assembly-Upper Clamp

$

$

Not available

36

Lawn-Boy 92-3213

Engine Cover Screws

$

$

Not available

37

Lawn-Boy 92-3238

Assembly-Engine Cover

$

$

Not available

38

Lawn-Boy 92-3239

Assembly-Lead Wire

$

$

Not available

39

Lawn-Boy 92-3223

Ground Tab

$

$

Not available

40

Lawn-Boy 683390

Assembly-Module
(Superseded to 181937)

$

$

Not available

41

Lawn-Boy 92-3210

Spark Plug

$

$

Not available

42

Lawn-Boy 610672

Gasket-Exhaust (10 Pack)
(Superseded to 180980)

$7.99

$

In Stock, only 1 left!

0

43

Lawn-Boy 92-3209

Assembly-Muffler

$85.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 147575

Bolt-Muffler Mounting

$

$

Not available

45

Lawn-Boy 684448

Assembly-Cylinder
(Superseded to 181622)

$

$

Not available

46

Lawn-Boy 684449

Assy.-Piston and Rod
(Superseded to 753-04367)

$

$

Not available

47

Lawn-Boy 610674

Gasket 683223-Cylinder (10 Pack)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3211

Kit-Engine Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153309

Kit-Diaphragm, Walbro
(Superseded to 181069)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180530

Kit-Piston Ring

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-3212

Assembly-Short Block (Incl. Ref. No.14-18, 42, & 42-48)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 6106761

Flywheel Key

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 92-3289

Starter Housing Set Screw

Note: Not Illustrated

$

$

Not available
